WAGO 1-Contact Interface Module DIN Rail Mount 24V 16A Current 788-354

Free Delivery in India | Lowest Global Shipping Charges

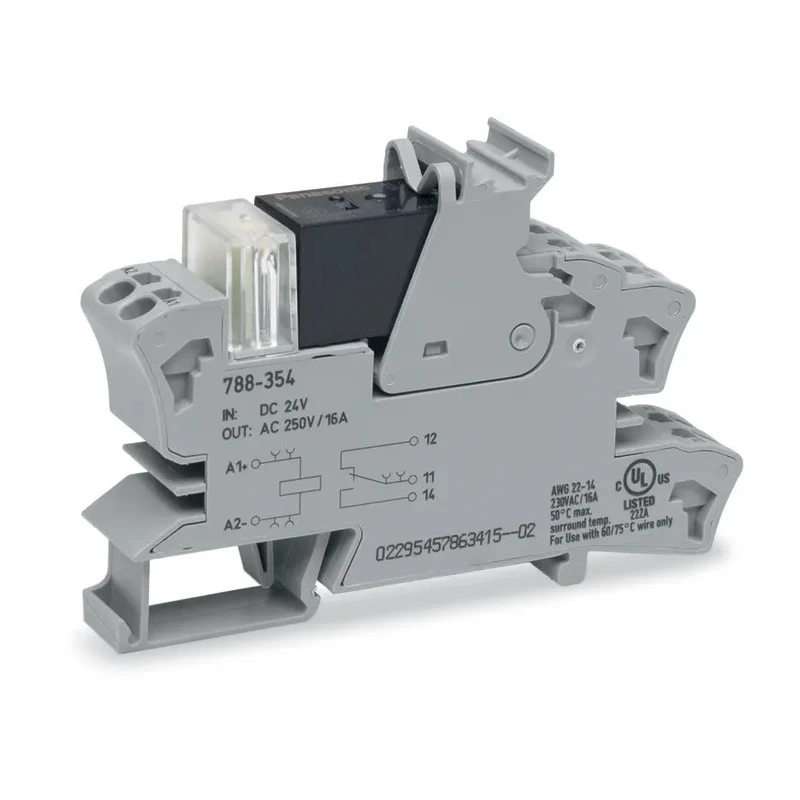

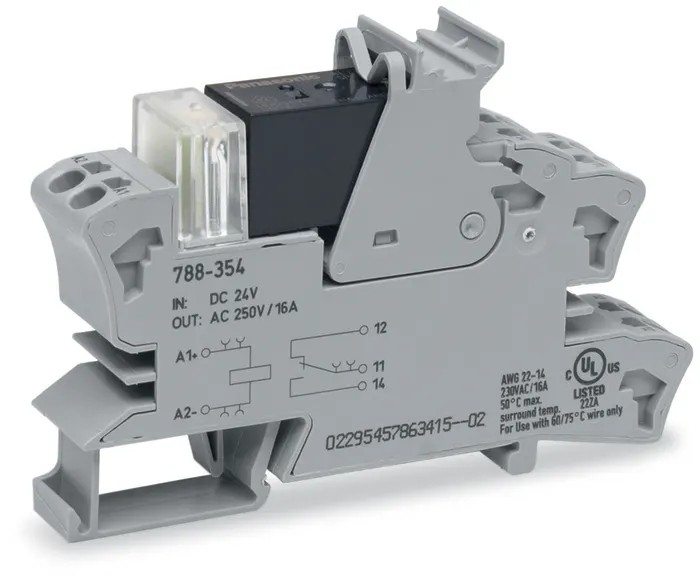

WAGO 1-Contact Interface Module DIN Rail Mount 24V 16A Current 788-354

Name: WAGO 1-Contact Interface Module DIN Rail Mount 24V 16A Current 788-354
Brand: Wago
SKU: 424302
Price: 33.92 USD
Availability: InStock



Category DIN Rail Brand Wago Condition New

Specifications

Country of Origin	China
Voltage	24V
Brand	WAGO
Orientation	Straight
Current	16A
Length	86mm
Model	788-354
Depth	54mm
Width	15mm
Mount Type	DIN Rail
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Wire size	14, 22AWG
Standards/Approvals	UL
Number of Contacts	1

Key Features

This module supports a nominal input voltage of 24 VDC.
It features one changeover contact with a maximum continuous current of 16 A.
The device is designed for DIN rail mounting and has a straight orientation.
It has a slim width of 15 mm and length of 86 mm for space-saving installations.
Operating temperature ranges from -40°C to 70°C for robust environmental tolerance.
The module is equipped with push-in clamp connections for secure wiring.
Complies with UL standards ensuring safety and reliability.
Includes a red status indicator and grey color housing with IP20 protection rating.

Product Description

WAGO 788-354 1-Contact Interface Module is designed for precise and reliable switching in industrial and electronic control systems. With a nominal input voltage of 24 VDC and a single changeover contact, it supports a continuous current rating of 16 A, ideal for interfacing loads in automation and power distribution setups.

Engineered for DIN-35 rail mounting, this module features a straight contact orientation and a compact form factor measuring 86 mm in length, 54 mm in depth, and 15 mm in width, optimizing space in control panels and electrical enclosures.

Its robust design operates effectively from -40°C to 70°C, making it suitable for a wide range of industrial environments. The push-in clamp connections allow for quick and secure wiring, enhancing installation efficiency.

The module includes a red status indicator for easy operational monitoring and comes with IP20 protection, safeguarding internal components from accidental contact. Its gray housing integrates well into various electrical setups.

Certified under UL standards, this WAGO interface module ensures compliance with international safety requirements, providing dependable performance in automation, manufacturing, and electronic control applications.

This interface module supports 24 V nominal DC voltage inputs. Single changeover contact rated for 16 A continuous current. Designed for DIN rail mounting with a slim 15 mm width. Operational temperature range from -40°C to 70°C.

Includes push-in clamp connections and a red status indicator. IP20-rated for basic protection against finger contact. Compliant with UL safety standards.

This product is made in China and is suitable for use in industrial automation, electrical panels, electronic components assembly, and other commercial and industrial applications. It provides a reliable interface solution to switch loads up to 16 A safely and efficiently.
