Entrelec MU Series Fused DIN Rail Terminal Black, 10mm², 16mm², 1-Level Fused, Screw Termination 1SNA199011R1600

Free Delivery in India | Lowest Global Shipping Charges

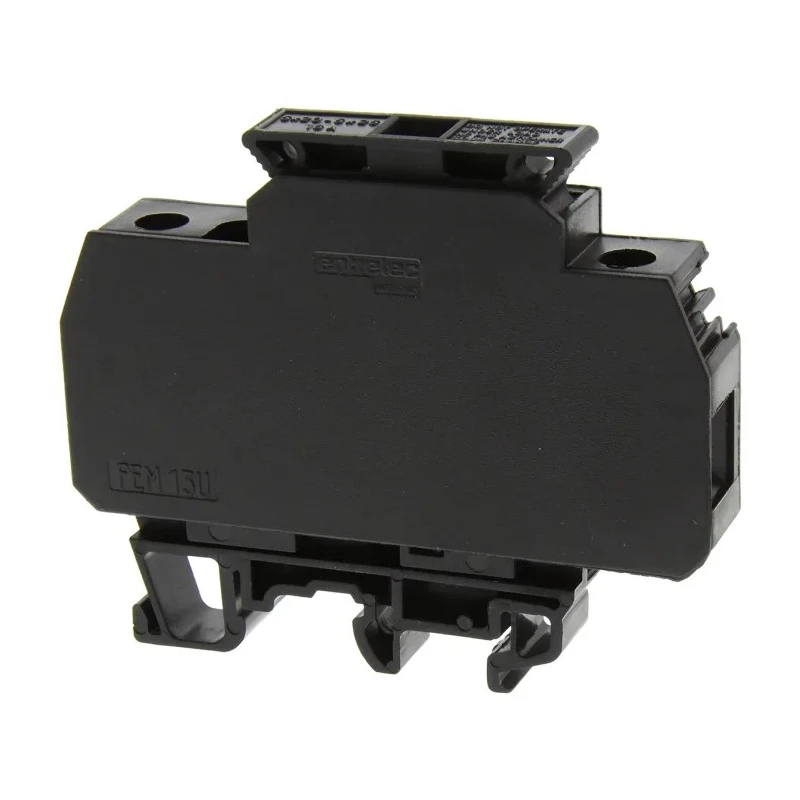

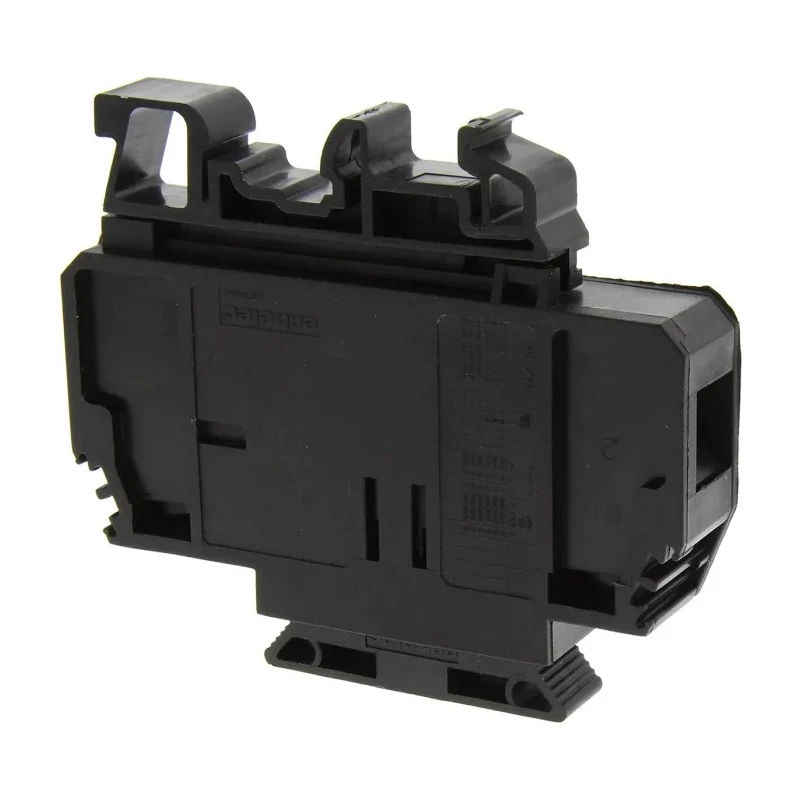

Entrelec MU Series Fused DIN Rail Terminal Black, 10mm², 16mm², 1-Level Fused, Screw Termination 1SNA199011R1600

Name: Entrelec MU Series Fused DIN Rail Terminal Black, 10mm², 16mm², 1-Level Fused, Screw Termination 1SNA199011R1600
Brand: Entrelec
SKU: 413225
Price: 20.22 USD
Availability: InStock



Category DIN Rail Brand Entrelec Condition New

Specifications

Country of Origin	India
Voltage	750V
Brand	Entrelec
Colour	Black
Model	1SNA199011R1600
Series	MU
Termination Type	Screw
Maximum Operating Temperature	110°C
Number of Levels	1
Minimum Operating Temperature	-55°C
Pitch	14.5mm
Standards/Approvals	EU Directive 2002/95/EC
Minimum Wire Size AWG	10AWG
Cable CSA	10, 16mm²
Terminal Block Current	16A

Key Features

Compact universal terminal suitable for 10mm² and 16mm² cable cross sections.
Operates safely up to 750V with a 14.5mm pitch between terminals.
Constructed from flame-resistant polyamide 6.6 material with temperature range from -55°C to 110°C.
Designed for 1-level fused applications using 5x20mm fuses with screw cap termination.
Mounts securely on asymmetric rail 'G' profile and top hat profile DIN rails.
Features hardened captive screws to prevent burring during installation and maintenance.
Meets EU Directive 2002/95/EC RoHS compliance standards.
Widely used in industrial electrical distribution, automation control panels, and power connection systems.

Product Description

Entrelec 1SNA199011R1600 is a MU Series fused DIN rail terminal designed for secure electrical connections in industrial and commercial applications. This black terminal block supports cable cross sections of 10mm² and 16mm² and carries currents up to 16A at voltages up to 750V. It features a 1-level fuse design with screw termination, providing reliability and ease of installation.

Manufactured from robust flame-resistant polyamide 6.6, this terminal is rated for operation between -55°C and 110°C, ensuring performance across demanding environments. The pitch of 14.5mm between terminals makes it compatible with standard DIN rail assembly configurations.

The terminal incorporates hardened captive screws to prevent damage and facilitate secure clamping of conductors. It is compatible with both asymmetric rail 'G' profile and top hat profile DIN rails, providing versatile mounting options. The screw cap fused terminals are optimized for 5x20mm fuse sizes and available with or without neon indicators.

These fused DIN rail terminals comply with EU Directive 2002/95/EC, supporting RoHS environmental standards. They are UL listed and CSA certified, ensuring international safety and performance recognition.

Typical applications include electrical distribution panels, control cabinets, and equipment requiring reliable fused connections in the power wiring system. The modular design supports easy fuse replacement and system maintenance.

Compact universal terminal suitable for 10mm² and 16mm² cable cross sections. Operates safely up to 750V with a 14.5mm pitch between terminals. Constructed from flame-resistant polyamide 6.6 material with temperature range from -55°C to 110°C.

Designed for 1-level fused applications using 5x20mm fuses with screw cap termination. Mounts securely on asymmetric rail 'G' profile and top hat profile DIN rails. Features hardened captive screws to prevent burring during installation and maintenance.

Meets EU Directive 2002/95/EC RoHS compliance standards. Widely used in industrial electrical distribution, automation control panels, and power connection systems. Explore more high-quality DIN Rail terminal blocks and related electrical components on EnvMart to suit diverse industrial and commercial electrical wiring needs.
