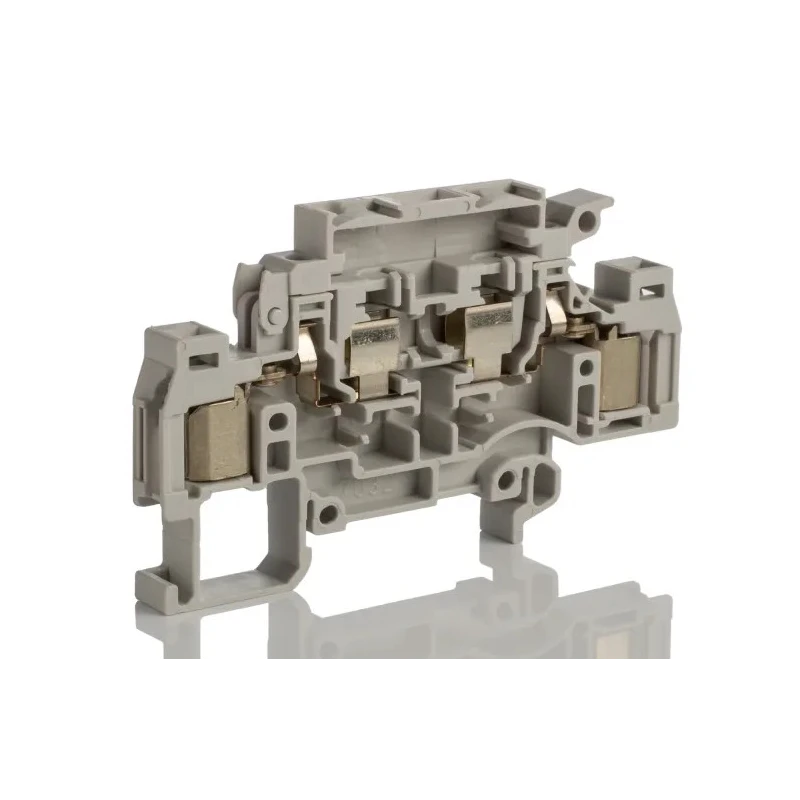

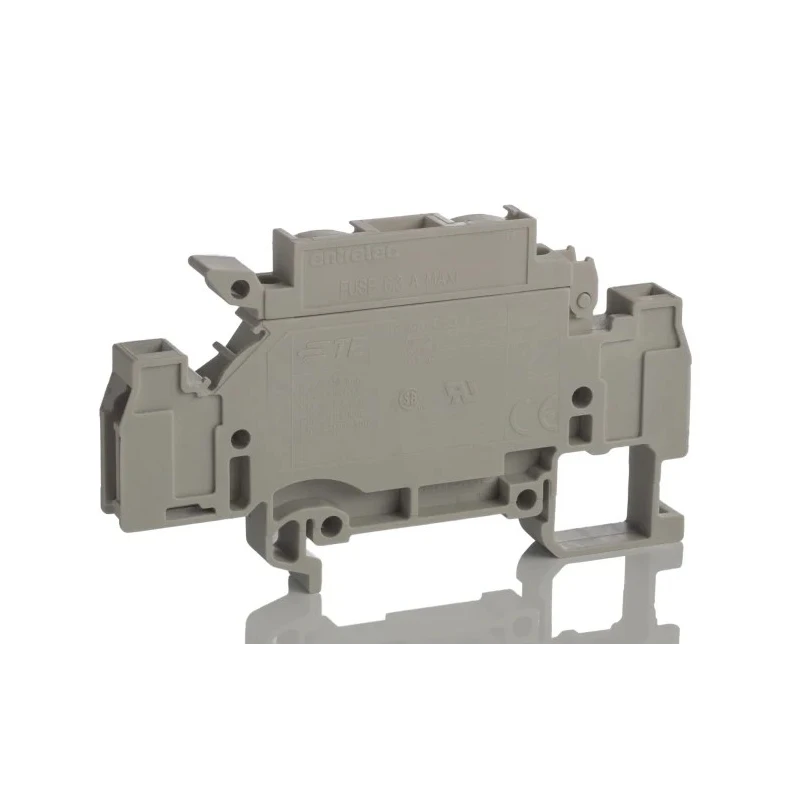

Entrelec D Series Fused DIN Rail Terminal Grey, 1.5mm², 1-Level Fused, Screw 1SNA199208R1100
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 630V |
| Brand | Entrelec |
| Colour | Grey |
| Model | 1SNA199208R1100 |
| Series | D |
| Termination Type | Screw |
| Maximum Operating Temperature | 110°C |
| Number of Levels | 1 |
| Minimum Operating Temperature | -55°C |
| Pitch | 8mm |
| Standards/Approvals | EU Directive 2002/95/EC, EAC, cUL, CE |
| Minimum Wire Size AWG | 12AWG |
| Cable CSA | 1.5mm² |
| Terminal Block Current | 6.3A |
Key Features
- The terminal block features a grey color and is designed to accommodate 1-level fused connections.
- Rated for 630V voltage and 6.3A current, suitable for low voltage applications.
- Compatible with both 5x20mm and 5x25mm fuses providing flexible protection options.
- Operates reliably within a temperature range from -55°C to 110°C.
- Designed to fit DIN rail mounting with an 8mm pitch.
- Constructed using materials certified to UL94V-0 for enhanced fire resistance.
- Termination is achieved via screw type for secure wiring connections.
- Complies with standards including EU Directive 2002/95/EC, EAC, cUL, and CE.
Product Description
Entrelec 1SNA199208R1100 D Series fused DIN rail terminal is engineered for reliable electrical protection and connectivity in industrial and electrical applications. This grey-colored terminal accepts both 5x20mm and 5x25mm fuses and supports 1-level fused connections for clear circuit protection.
Designed for DIN rail mounting, it supports cable cross-sectional area up to 1.5mm² with a minimum wire size of 12 AWG and features a screw termination type ensuring firm connection integrity. It operates safely at voltages up to 630V and current ratings of 6.3A, suitable for low voltage electrical circuits.
The terminal block is built to withstand wide temperature ranges from -55°C to 110°C, making it reliable for varied industrial environments. Manufactured from UL94V-0 rated materials, it provides excellent flame retardancy for enhanced safety. Its compact 8mm pitch fits industry standard DIN rails.
Compliance with multiple standards including EU Directive 2002/95/EC, EAC, cUL, and CE guarantees its suitability for international markets. This product is certified by UL and CSA, reflecting its commitment to quality and safety.
The fused DIN rail terminal supports standard fuse sizes 5x20mm and 5x25mm. Rated for 630V and 6.3A ensuring robust circuit protection. Screw termination type provides secure and easy wiring. Grey color facilitates identification and blends with control panels.
1-level fused design simplifies fuse installation and replacement. Wide operating temperature range from -55°C to 110°C for diverse environments. Materials certified to UL94V-0 enhance fire safety. Conforms to multiple international safety and environmental standards.
Ideal for electrical enclosures, industrial automation, and power distribution setups. UL listed and CSA certified for trustworthy performance.
Entrelec products like the 1SNA199208R1100 fused terminal are integral components in electrical protection and circuit management. Browse more in our DIN Rail Terminal Blocks category for complementary products and accessories to optimize your electrical installations.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this terminal block is 630V.
This model has a current rating of 6.3A.
It operates reliably within a temperature range from -55°C to 110°C.
The terminal block uses a screw termination type for secure wiring connections.
It is compatible with both 5x20mm and 5x25mm fuses.
The pitch size for this terminal is 8mm, suitable for standard DIN rail mounting.
The minimum wire size that can be used with this terminal is 12 AWG.
It is constructed using materials certified to UL94V-0 for enhanced fire resistance.
This model complies with EU Directive 2002/95/EC, EAC, cUL, and CE standards.
The terminal block features a grey color, which facilitates identification.
It is suitable for low voltage electrical circuits, electrical enclosures, industrial automation, and power distribution setups.
The country of origin for this terminal block is India.
