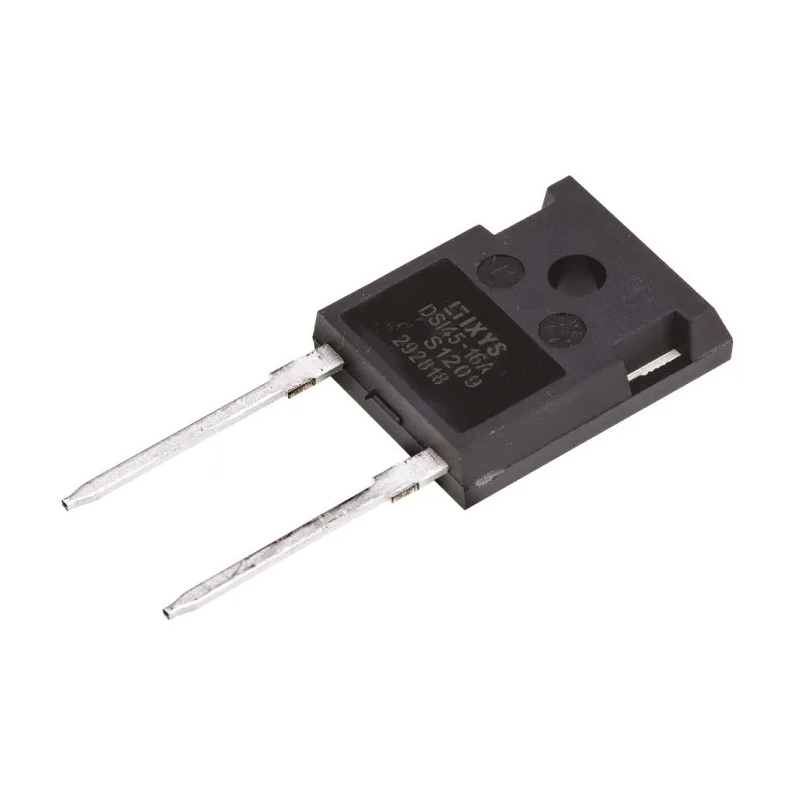

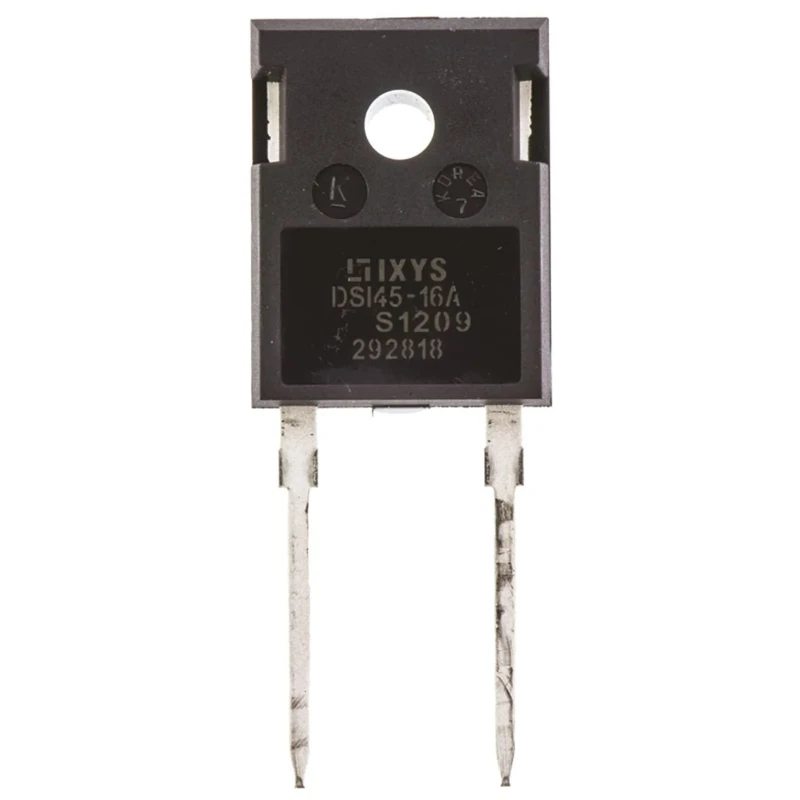

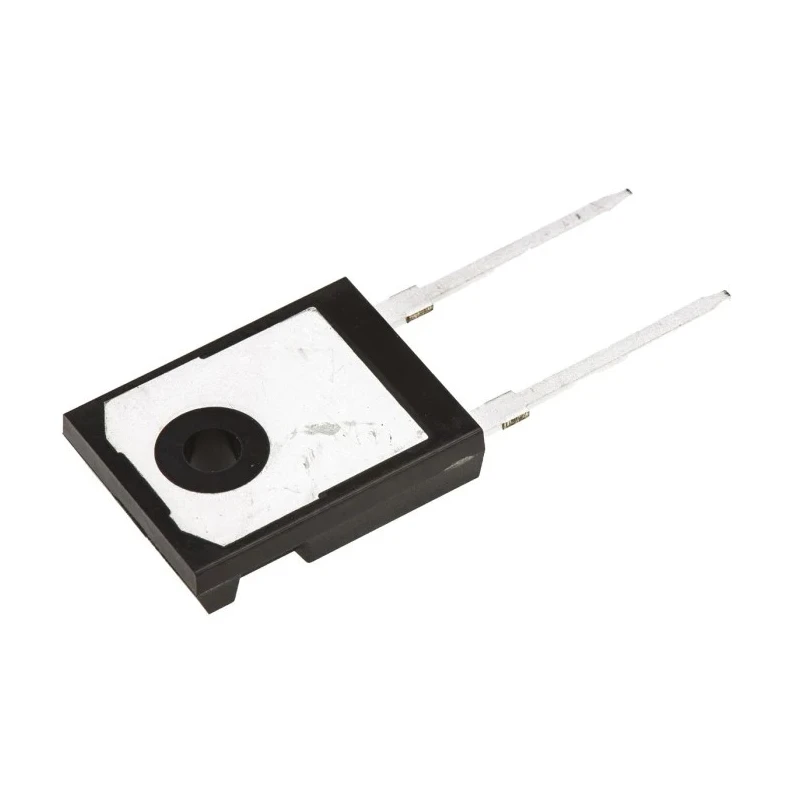

IXYS 1600 V 48 A General Purpose 2-Pin Through Hole Diode TO-247AD DSI45-16A

IXYS DSI45-16A is a general purpose semiconductor diode designed for through hole mounting in a TO-247AD package. It operates efficiently with a continuous forward current rating of 48 A and a peak reverse repetitive voltage of 1600 V. The diode's low maximum forward voltage of 1.18 V minimizes power dissipation and is suitable for high-performance power applications.

With a peak non-repetitive forward surge current rating of 520 A and an operating temperature range from -40°C to 150°C, this diode is capable of functioning reliably under demanding industrial, laboratory, and electrical power control environments. The 2-pin configuration and compact dimensions (16.26 mm length, 21.46 mm height, 5.3 mm width) facilitate easy integration into power rectification and switching circuits.

The diode is tailored for general purpose rectification tasks where robust performance and component longevity are required. Its low peak reverse current improves switching efficiency and reduces leakage losses, enhancing device reliability.

Provides reliable operation in harsh electrical environments. Capable of handling high peak non-repetitive forward surge current up to 520 A. Wide operating temperature range from -40°C to 150°C ensures suitability for industrial applications.

Compact dimensions with length 16.26 mm, height 21.46 mm, and width 5.3 mm enable board space efficiency. Low maximum forward voltage drop of 1.18 V reduces power loss and heat generation. Designed as a single general purpose rectifier diode for versatile use.

Through hole mount type facilitates secure mechanical and electrical connection. Peak reverse current of only 3 mA supports efficient switching performance.

This diode is commonly used in power management, industrial automation, and electronic equipment repair or design. Explore more IXYS semiconductor devices for enhanced electronic component reliability and performance on EnvMart.
