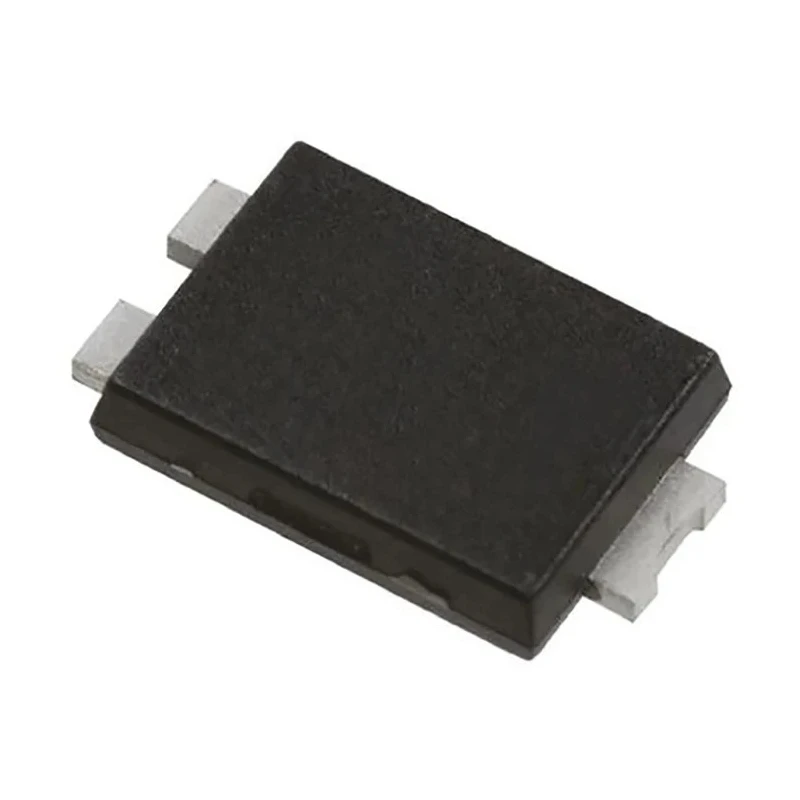

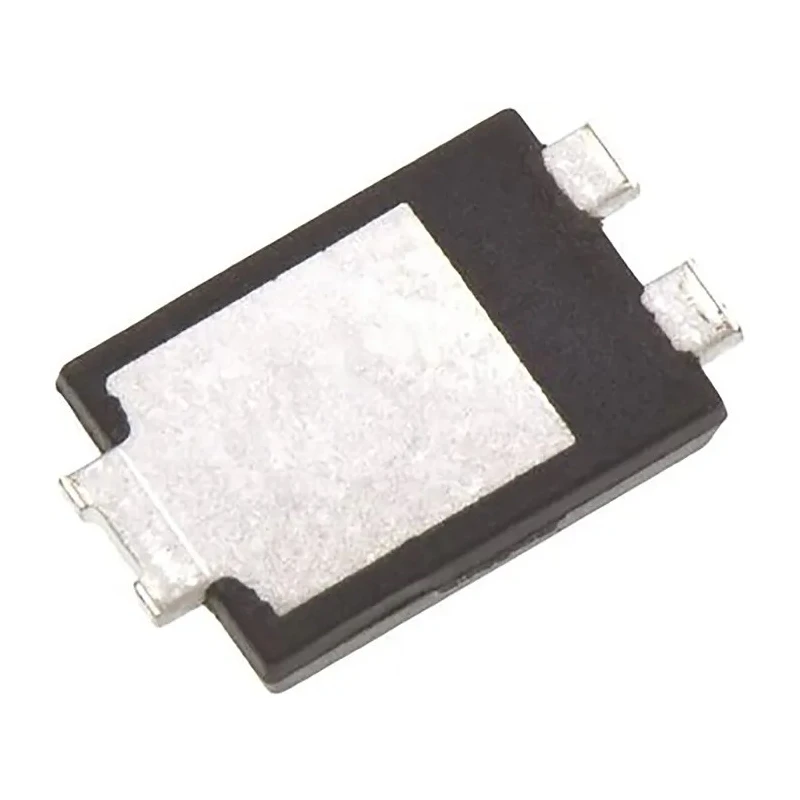

DiodesZetex 20 V 8 A Schottky Barrier Diode Surface Mount 3-Pin Package PowerDI5
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.1mm |
| Length | 5.45mm |
| Model | PowerDI5 |
| Width | 4.05mm |
| Mount Type | Surface |
| Series | 8A SBR |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerDI5 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Barrier |
| Peak Reverse Current Ir | 75mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 180A |
| Maximum Forward Voltage Vf | 450mV |
Key Features
- Supports a maximum continuous forward current of 8 A.
- Operates at peak reverse repetitive voltage of 20 V for robust electrical performance.
- Features low forward voltage drop of 450 mV improving efficiency.
- Designed for a wide operational temperature range from -55°C to 150°C.
- Composed in a compact Surface Mount Device with dimensions 5.45 mm length and 4.05 mm width.
- Peak non-repetitive forward surge current rating of 180 A allows heavy transient tolerance.
- FBI standards compliant ensuring quality and reliability.
- Ideal for industrial and electronic applications requiring fast and efficient diode switching.
Product Description
DiodesZetex PowerDI5 Schottky Barrier Diode is a surface mount semiconductor diode designed for efficient rectification with a 3-pin PowerDI5 package. This diode supports a maximum continuous forward current of 8 A and operates at a peak reverse repetitive voltage of 20 V, making it suitable for demanding electronic applications.
With a low maximum forward voltage of 450 mV, it ensures minimal power loss during operation. The diode is built to sustain peak non-repetitive forward surge current of up to 180 A and operates reliably over a temperature range from -55°C up to 150°C, offering thermal stability and durability in harsh environments.
Its compact dimensions of 5.45 mm length, 4.05 mm width, and 1.1 mm height allow for space-efficient circuit design. It complies with FBI standards for quality assurance and features a single diode barrier rectifier configuration, making it ideal for power supplies, automotive electronics, and industrial control equipment requiring fast switching and low voltage drop.
Maximum continuous forward current is 8 A to handle heavy current loads. Voltage rating of 20 V peak reverse repetition safeguards against reverse voltage spikes. Forward voltage of 450 mV reduces energy loss in circuits.
Wide operating temperature range from -55°C to 150°C ensures reliability in varied climates. Compact PowerDI5 surface mount packaging aids in miniaturization of electronic devices. Peak surge capacity of 180 A enhances protection against transients.
Meets FBI quality standards for industrial and commercial usage. Commonly used in electronic component assemblies, power rectifiers, and control systems.
This diode from DiodesZetex is manufactured in China and designed specifically for robust performance in electronic, industrial, and automotive circuit applications. Its low forward voltage and high surge current capabilities deliver reliable rectification and durability under demanding conditions.
Explore more DiodesZetex Schottky diodes and rectifiers at EnvMart for superior semiconductor solutions suitable for your industrial and electronic design projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky diode is 8 A.
It operates at a peak reverse repetitive voltage of 20 V.
The maximum forward voltage drop is 450 mV, which helps improve efficiency.
This diode operates over a wide temperature range from -55°C to 150°C.
The dimensions of the PowerDI5 package are 5.45 mm in length, 4.05 mm in width, and 1.1 mm in height.
The peak non-repetitive forward surge current rating is 180 A, allowing for heavy transient tolerance.
This model features a single diode barrier rectifier configuration.
It complies with FBI standards, ensuring quality and reliability.
This diode is ideal for power supplies, automotive electronics, and industrial control equipment requiring fast switching and low voltage drop.
The peak reverse current rating is 75 mA.
The series name of this Schottky diode is 8A SBR.
This diode is manufactured in China.
