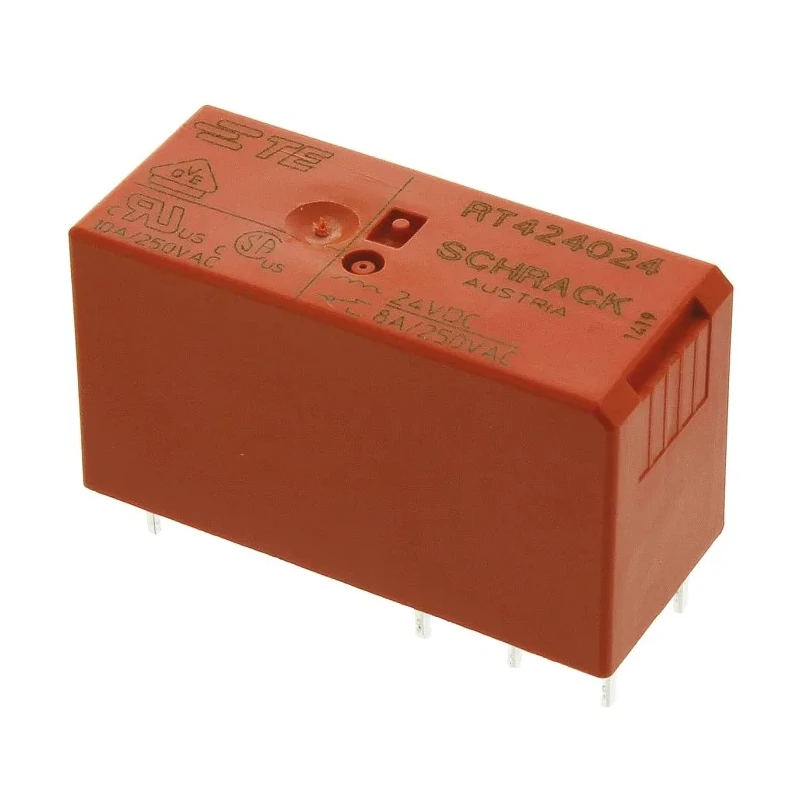

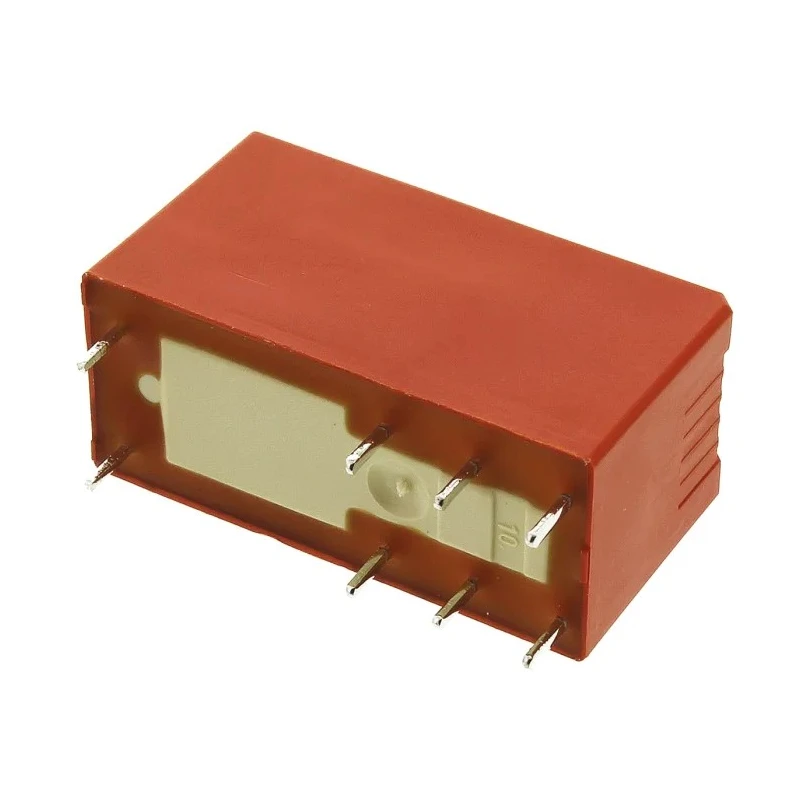

TE Connectivity PCB Power Relay, 24V DC Coil, 8A Switching Current, DPDT RT424024 6-1393243-8
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT424024 6-1393243-8 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | VDE, RoHS, IEC 60335-1 |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- This relay is designed for PCB mounting and uses solder type terminals.
- The coil resistance is 1.4 kΩ, ensuring efficient operation.
- It supports a switching AC voltage of up to 400V AC.
- Operating temperature range is from -40°C to 85°C, suitable for various environments.
- Contact material is Silver Nickel Alloy to provide excellent conductivity and durability.
- The relay dimensions are 29mm length, 15.7mm height, and 12.7mm width for compact PCB integration.
- Compliant with VDE, RoHS, and IEC 60335-1 standards.
- Coil power consumption is 250 mW for energy-efficient control.
Product Description
TE Connectivity RT424024 6-1393243-8 PCB Power Relay offers reliable switching performance with a 24V DC coil and 8A switching current in a double-pole double-throw (DPDT) contact configuration, designed for PCB mounting applications.
This non-latching relay from the RT2 series is crafted for industrial, automation, and electronic control systems requiring precise and robust power switching. The solder-type through-hole terminals facilitate easy integration into printed circuit boards.
With a coil resistance of 1.4 kΩ and coil power consumption of 250 mW, this relay operates efficiently under varying electrical loads. Supporting a wide temperature range from -40°C to 85°C, the relay delivers dependable performance across diverse industrial environments.
The contact material is made from Silver Nickel Alloy, providing excellent electrical conductivity and endurance for long-lasting operation. Dimensions of 29mm in length, 15.7mm in height, and 12.7mm in width make it compact and suitable for space-constrained PCB assemblies.
Compliant with industry standards including VDE, RoHS directives, and IEC 60335-1, this relay assures safety and environmental compliance. The relay is manufactured in Austria, reflecting superior build quality.
PCB mount power relay with DPDT contact configuration. 24V DC coil voltage with 8A switching current capacity. Silver Nickel Alloy contacts for durability and reliable conductivity. Operating temperature range from -40°C to 85°C for versatile applications.
Energy efficient with a coil power rating of 250 mW. Compact dimensions facilitate integration into PCB assemblies. Conforms to VDE, RoHS, and IEC 60335-1 standards. Suitable for industrial automation, control systems, and electronic devices.
Explore EnvMart's extensive catalog of Power Relays and electronic components for industrial automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
It supports a maximum switching current of 8A.
The relay measures 29mm in length, 15.7mm in height, and 12.7mm in width.
This model features a double-pole double-throw (DPDT) contact configuration.
The coil resistance is 1.4 kΩ.
The operating temperature range is from -40°C to 85°C.
This relay uses solder-type terminals for PCB mounting.
It can switch AC voltages of up to 400V AC.
The contacts are made from Silver Nickel Alloy, which provides excellent conductivity.
It is compliant with VDE, RoHS, and IEC 60335-1 standards.
The coil power consumption is 250 mW.
This relay is manufactured in Austria.
