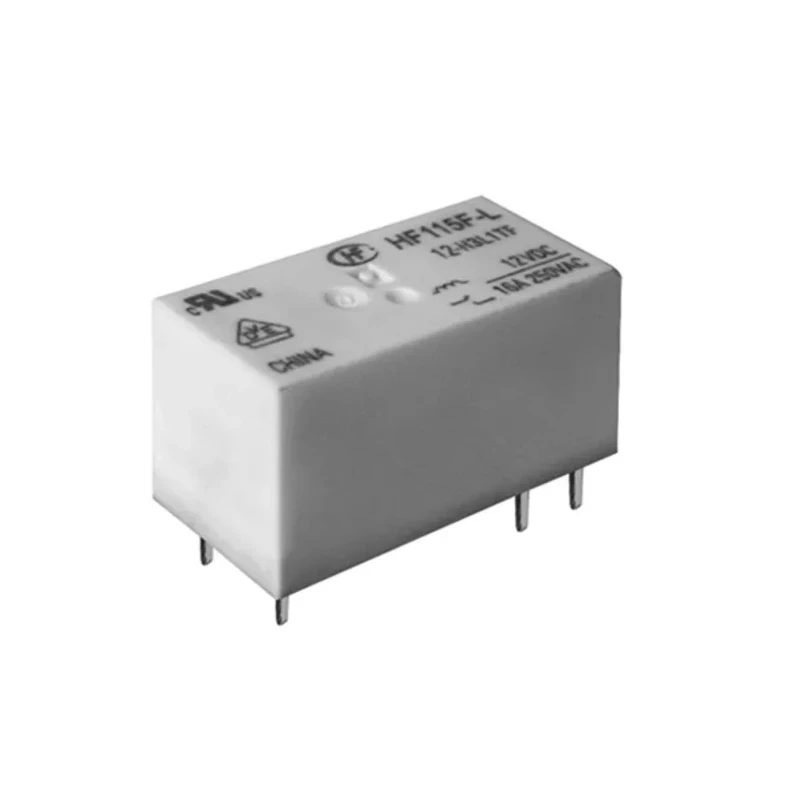

Hongfa Europe GMBH PCB Power Relay SPDT, 12V DC Coil, 20A, 440V AC, Silver Alloy Contacts HF115F-L/12-Z3L2TF(610)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 15.7mm |
| Length | 29mm |
| Model | HF115F-L/12-Z3L2TF(610) |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF115F-L |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 20A |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 600mW |
Key Features
- SPDT configuration for flexible load control.
- 12V DC coil for efficient actuation.
- Rated for 20A switching current at 440V AC and 300V DC.
- Durable silver alloy contacts ensure longevity and performance.
- Compact PCB mount design with low 15.7mm profile.
- Operating temperature range from -40°C to 85°C for harsh environments.
- Plastic sealed and flux proofed relay types available.
- Environmental resistance with RoHS compliance.
Product Description
The Hongfa Europe GMBH HF115F-L/12-Z3L2TF(610) PCB Power Relay is designed to deliver reliable and high-performance switching in demanding industrial, automotive, and household circuits. With its SPDT (Single Pole Double Throw) contact configuration, engineers can easily control loads and electrical pathways to accommodate diverse circuit requirements.
This relay features a robust 12V DC coil for easy integration into low-voltage control systems. The relay supports up to 20A switching current at a maximum 440V AC and 300V DC, making it suitable for high-power applications, including motor controls, lighting circuits, and heavy-duty machinery.
Built with durable silver alloy contacts, the relay guarantees low contact resistance (100mΩ) and extended operating cycles, achieving up to 10 million actuations for long-term reliability. The compact PCB mounting design and low 15.7mm profile reduce space requirements on circuit boards, ideal for dense or miniaturized assemblies.
The relay observes RoHS standards, ensuring environmental compliance and resistance to hazardous substances. The plastic sealed and flux proofed construction enhances safety and stability in harsh environments. It operates reliably across a wide temperature range from -40°C to 85°C.
Applications include automotive engine controls, household appliance switching, industrial machinery interfaces, telecommunication equipment, and medical device power distribution. Isolation between coil and contact is 5kV, providing robust electrical separation and safety.
Key technical details include a coil resistance of 360Ω, coil power of 600mW, and silver alloy contact material. PCB terminal mounting enables straightforward installation. The relay is manufactured in China, meeting international standards for quality and durability.
Explore more Power Relays and accessories in EnvMart's Electronics & Electricals category, featuring Hongfa Europe GMBH and leading relay solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current rating of 20A, making it suitable for high-power applications.
The coil operates at 12V DC, allowing for efficient actuation in low-voltage control systems.
It can switch a maximum AC voltage of 440V, suitable for various high-power applications.
This relay features a Single Pole Double Throw (SPDT) contact configuration, providing flexible load control.
The operating temperature range is from -40°C to 85°C, allowing it to function in harsh environments.
The contacts are made of silver alloy, which helps ensure longevity and performance.
The relay has a height of 15.7mm, a length of 29mm, and a width of 12.7mm, making it compact for PCB mounting.
The coil resistance is 360Ω, which is essential for calculating the current draw from the control circuit.
The contact resistance is 100mΩ, ensuring low resistance during operation.
Yes, it complies with RoHS standards, ensuring it is free from hazardous substances.
This model uses PCB terminal mounting, facilitating straightforward installation on circuit boards.
It is suitable for applications such as automotive engine controls, household appliance switching, and industrial machinery interfaces.
