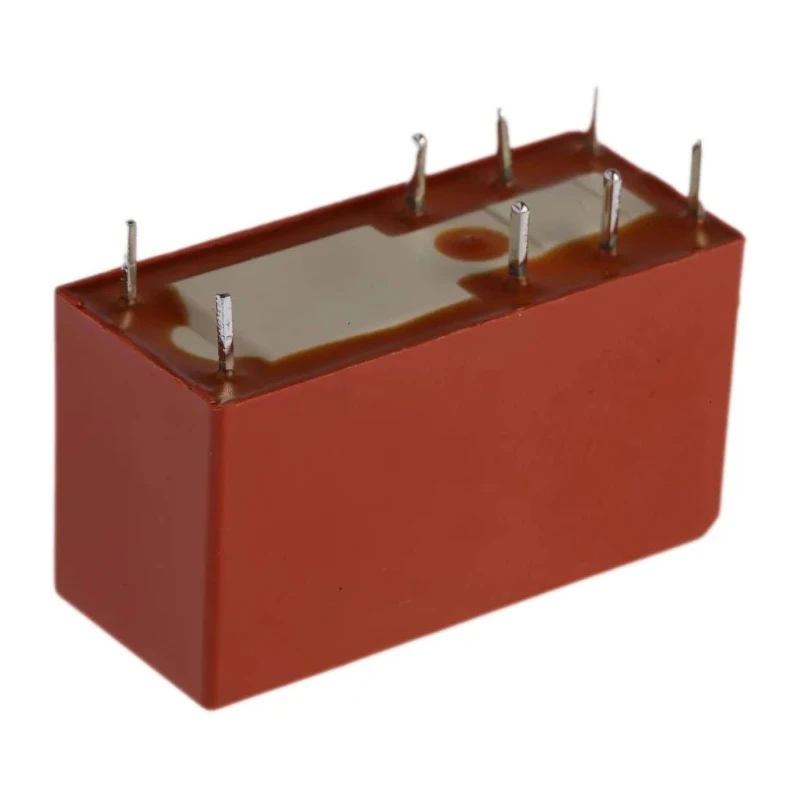

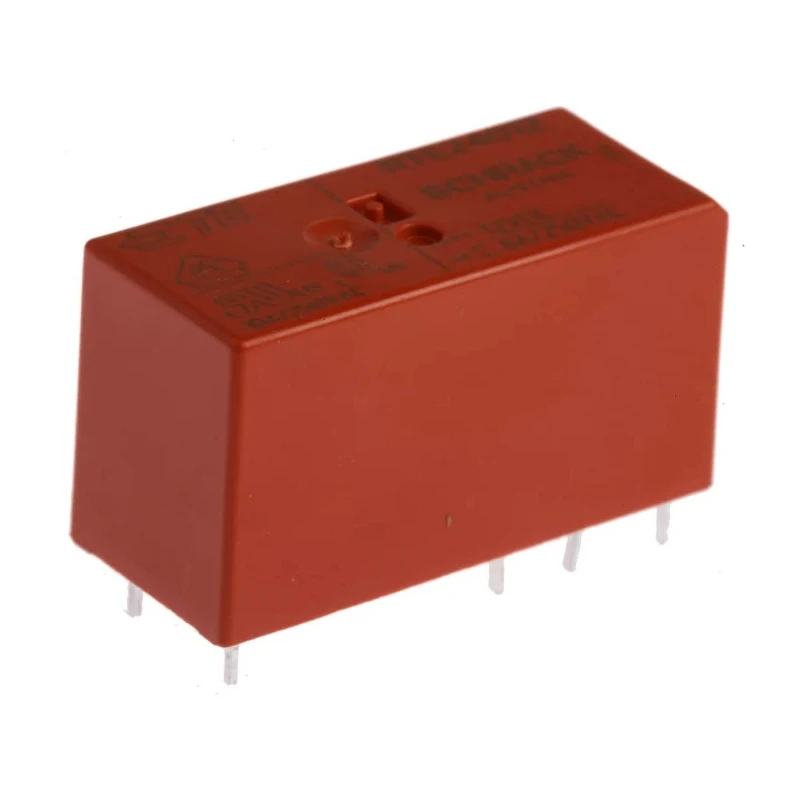

TE Connectivity PCB Power Relay DPDT 12V DC Coil, 8A, Solder Terminal RT2 RTE24012 1393243-4
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTE24012 1393243-4 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT2 |
| Maximum Operating Temperature | 85°C |

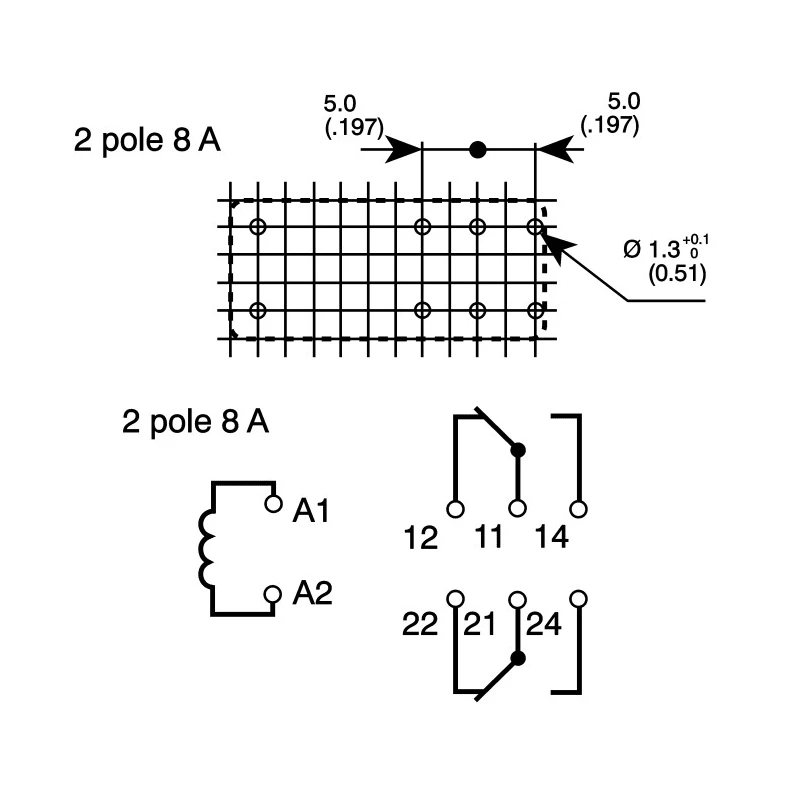

| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- High reliability relay with 12V DC coil voltage for versatile control applications.
- Double pole double throw (DPDT) contact arrangement ensures flexible switching.
- Handles maximum switching current of 8A and AC voltage up to 400V.
- RT2 series with solder terminal and PCB mounting for secure installation.
- Silver nickel alloy contact material offers excellent conductivity and durability.
- Operating temperature range from -40°C to 85°C supports robust operation.
- Coil resistance of 360Ω and coil power rated at 400mW ensures low energy consumption.
Product Description
TE Connectivity RTE24012 1393243-4 is a high-performance PCB power relay designed for dependable switching in automation, domestic, industrial, and electronic control systems. Featuring a DPDT (double pole double throw) contact configuration, this relay allows flexible switching of multiple circuits. Its 12V DC coil voltage is ideal for integration in low voltage applications, providing precise actuation and control.
The relay supports maximum switching currents up to 8A and can handle switching AC voltages as high as 400V, making it suitable for demanding industrial loads and signal control. The RT2 series relay is constructed with solder terminals, facilitating direct mounting onto PCBs for a stable, vibration-resistant installation in electronic and automation assemblies.
With silver nickel alloy contacts, the relay maintains high conductivity and long operational life, even in frequent on-off cycles and under varied loads. A coil resistance of 360Ω and coil power rated at 400mW ensure energy-efficient operation. Its compact footprint - 29mm in length, 12.7mm in width, and 15.7mm in height - supports tight PCB layouts and miniaturized system designs.
The RTE24012 1393243-4 relay is built to operate reliably within a wide temperature range from -40°C to +85°C, ensuring resilience in both high and low ambient conditions. The non-latching mechanism is suitable for momentary switching requirements, and the relay is RoHS compliant for safe, environmentally responsible usage.
Typical applications include automation and domestic control systems, heating systems, interface modules, and security lighting. The relay’s through-hole solder terminal type is designed for robust mounting and long-term performance in commercial and industrial environments.
Explore the full range of TE Connectivity relays and components in the Power Relay category for reliable solutions to electronic and automation requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC, making it suitable for low voltage applications.
It can handle a maximum switching current of 8A, which is suitable for various control applications.
This relay features a double pole double throw (DPDT) contact configuration, allowing for flexible circuit switching.
The relay can switch AC voltages up to 400V, making it suitable for demanding industrial loads.
The relay has a length of 29mm, a width of 12.7mm, and a height of 15.7mm, supporting compact PCB layouts.
The coil resistance is 360Ω, ensuring efficient operation with low energy consumption.
It operates reliably within a temperature range from -40°C to +85°C, suitable for various environmental conditions.
This relay is equipped with solder terminals, allowing for secure PCB mounting.
Yes, the relay is RoHS compliant, ensuring it meets environmental safety standards.
The contacts are made of silver nickel alloy, which provides excellent conductivity and durability.
The coil power is rated at 400mW, contributing to its low energy consumption.
This relay is suitable for automation, domestic control systems, heating systems, and security lighting applications.
