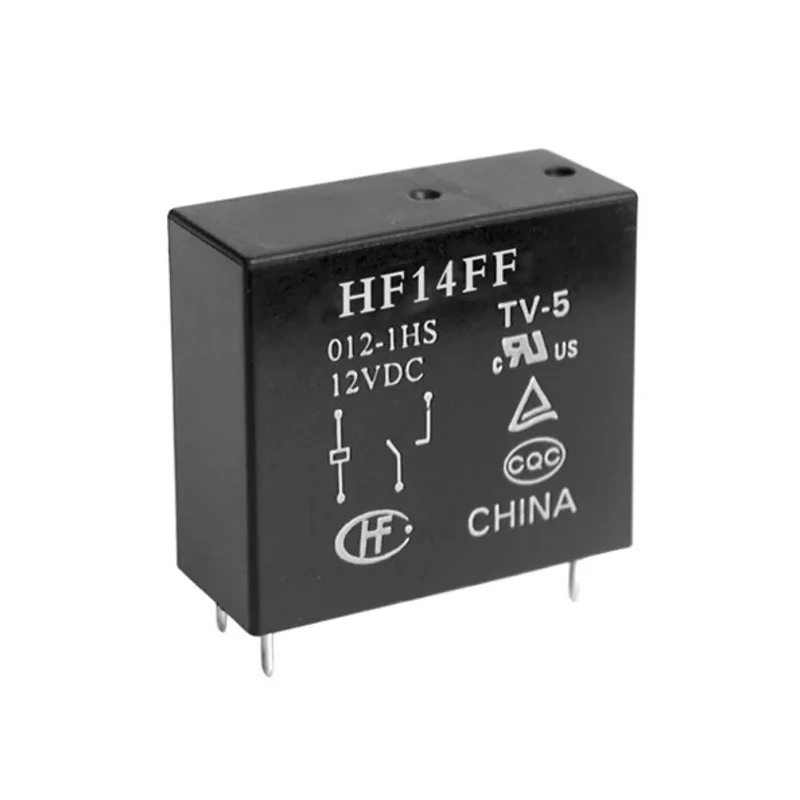

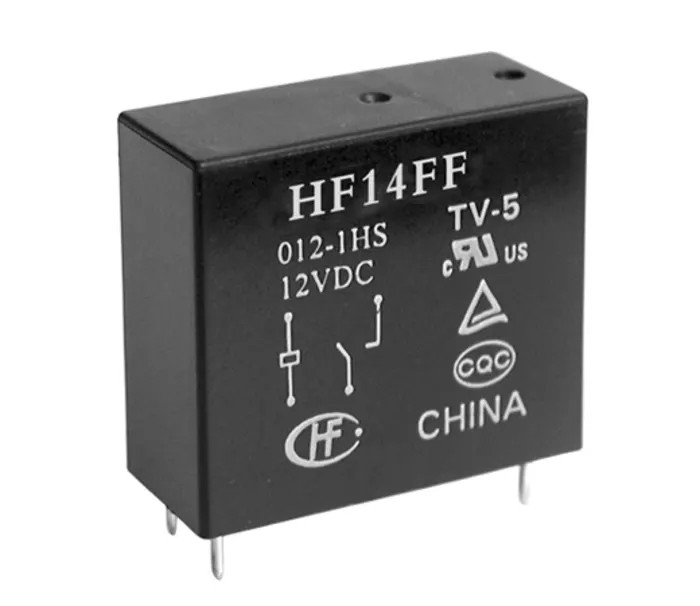

Hongfa Europe GMBH PCB Power Relay 24V DC Coil 10A SPST HF14FF/024-1HTF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 26mm |
| Length | 29mm |
| Model | HF14FF/024-1HTF |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF14FF |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 30V ac |
| Coil Power | 530mW |
| Outline Dimensions | (29.0 x 13.0 x 26.0) mm |
| Dielectric Strength (Between Coil and Contacts) | 5kV |
Key Features
- PCB power relay with single pole single throw (SPST) configuration.
- Features a 24V DC coil voltage for reliable operation.
- Offers a switching current capacity of up to 10A.
- PCB pin terminals ensure secure mounting and connection.
- Silver alloy contact material optimizes conductivity and longevity.
- Operating temperature range from -40°C to 70°C supports diverse environments.
- 5kV dielectric strength between coil and contacts enhances safety.
- Plastic sealed and dust protected design improves durability.
Product Description
The Hongfa Europe GMBH HF14FF/024-1HTF is a high-performance PCB power relay, engineered for demanding electrical applications. With its robust 24V DC coil, it reliably actuates a single pole single throw (SPST) contact rated for up to 10A switching current.
This relay is tailored for PCB mounting, employing PCB pin terminals for guaranteed stability and ease of assembly. Its compact footprint (29.0 x 13.0 x 26.0 mm) allows seamless integration into densely populated circuit boards, making it suitable for power distribution, signal switching, and automation systems.
The relay’s silver alloy contact material ensures superior electrical conductivity and longevity under frequent load cycles. Its coil resistance of 1.1kΩ and coil power rating of 530mW optimize energy efficiency, while the dielectric strength of 5kV between coil and contacts assures safe operation and insulation integrity.
Constructed with plastic sealing and dust protection, this power relay operates reliably across industrial and commercial environments, withstanding ambient temperatures from -40°C to 70°C. It maintains RoHS compliance for environmentally friendly operation.
Applications include industrial automation, signal conditioning, control panels, HVAC controls, machinery protection, and power distribution systems, where precise and robust switching is essential.
Explore EnvMart’s range of Power Relays and Hongfa Europe GMBH products for solutions in electrical, automation, and signal conditioning applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC.
It can handle a maximum switching current of 10A.
The dimensions of this relay are 29.0 mm in length, 13.0 mm in width, and 26.0 mm in height.
This relay features a single pole single throw (SPST) contact configuration.
The operating temperature range is from -40°C to 70°C.
It uses PCB pin terminals for secure mounting and connection.
The dielectric strength between the coil and contacts is 5kV.
The coil resistance is 1.1kΩ.
The contact material is silver alloy, which optimizes conductivity and longevity.
Yes, this relay maintains RoHS compliance for environmentally friendly operation.
It is suitable for applications such as industrial automation, signal conditioning, control panels, HVAC controls, and power distribution systems.
The coil power rating is 530mW.
