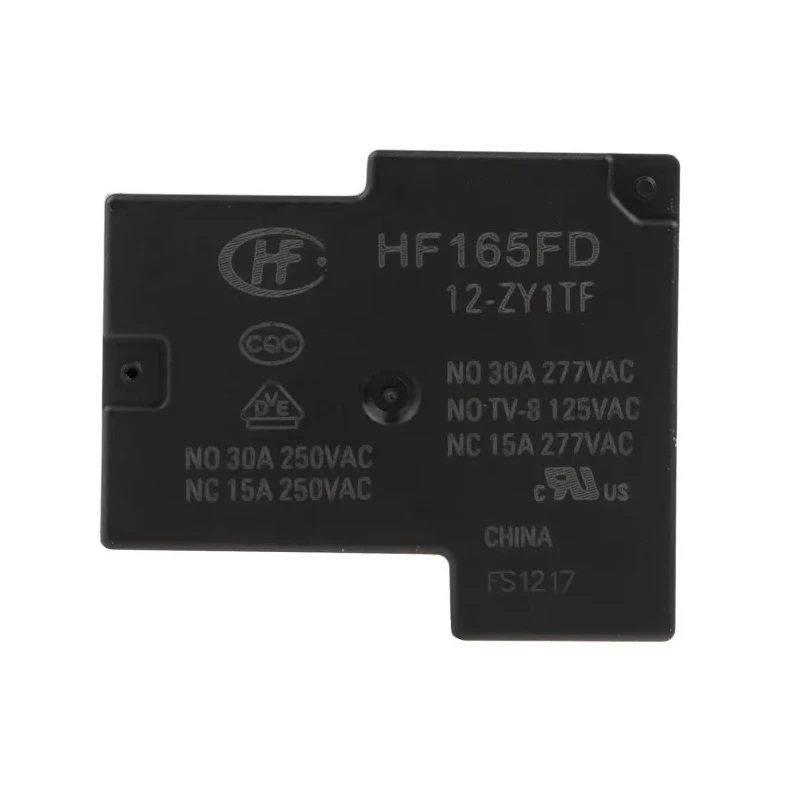

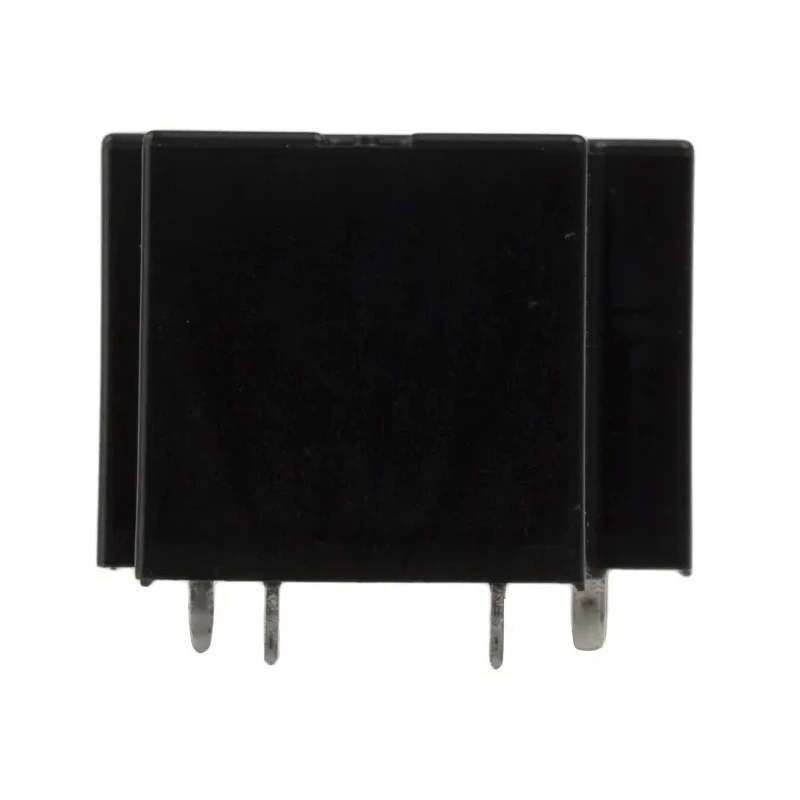

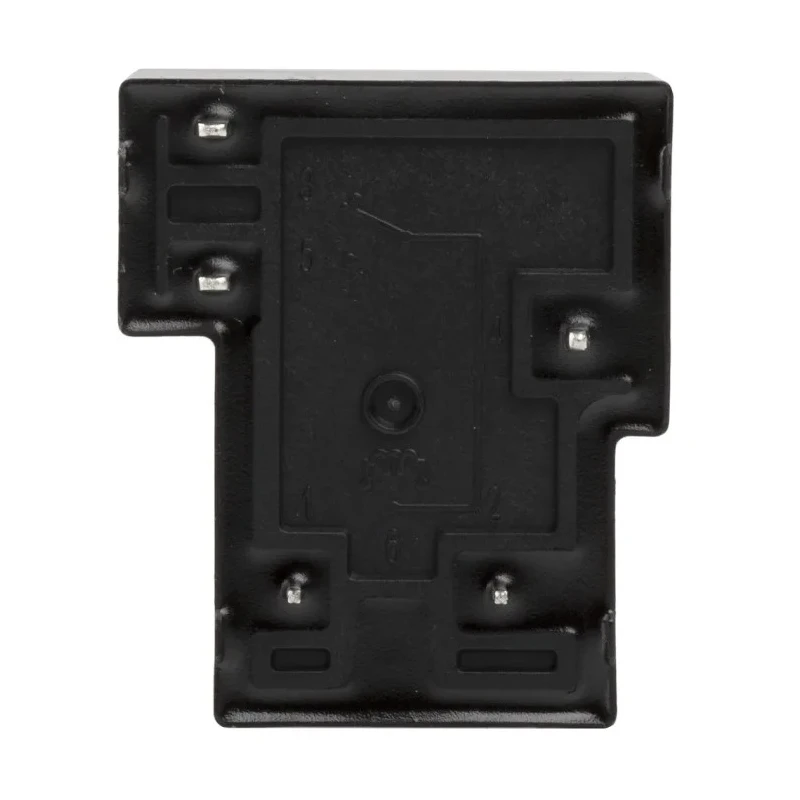

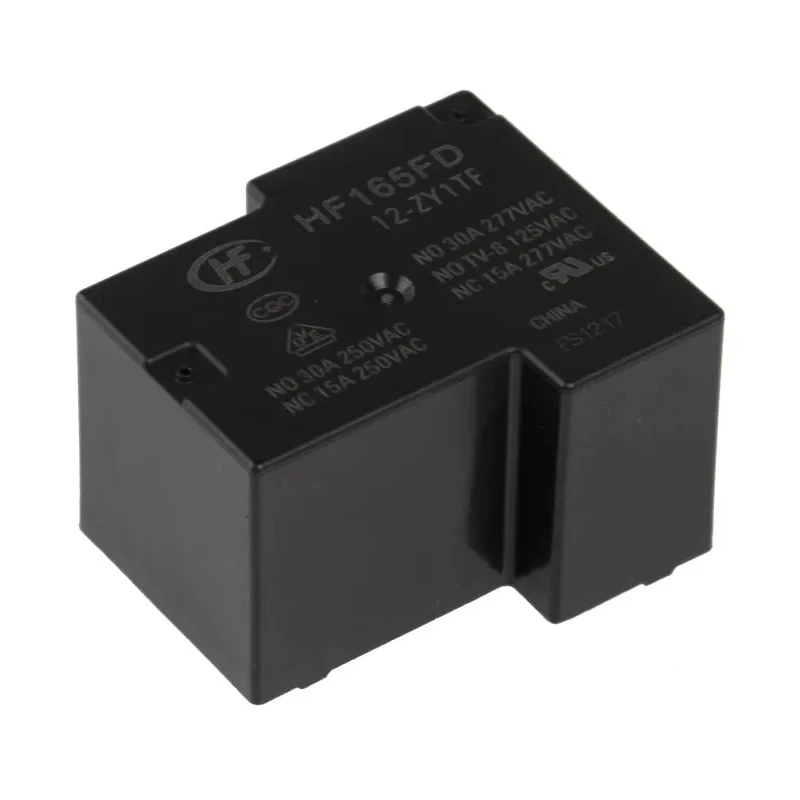

Hongfa Europe GMBH PCB Power Relay 12V Coil 30A Switching Current SPDT HF165FD/12-ZY1TF

Hongfa Europe GMBH HF165FD/12-ZY1TF is a high-performance PCB Power Relay functioning with a 12V coil and capable of handling up to 30A switching current with a single-pole double-throw (SPDT) contact configuration. This relay is designed for efficient and reliable operation in varied industrial and commercial environments, including automotive systems, telecommunications equipment, household appliances, and industrial machinery.

The relay features a durable silver alloy contact material which ensures longevity and high electrical endurance. It operates within a temperature range from -40°C to 85°C, making it suitable for demanding environmental conditions. The device offers a coil resistance of 155Ω and consumes just 900mW coil power, contributing to low-power circuit designs.

Measuring compactly at 32.2mm in length, 27.5mm in width, and 20.4mm in height, the PCB mounting type relay saves valuable board space. It supports a high switching AC voltage of 277V ac and has a maximum switching power of 8.3 kVA. The product is RoHS compliant, ensuring it meets environmental standards.

The isolation voltage between coil and contacts is set at 2.5KV for standard versions, with a high surge withstand voltage of 6KVAC. It is also resistant to vibration and abrasion, assuring mechanical robustness and a life expectancy of up to 10 million cycles.

Equipped with a 12V coil voltage ensuring reliable actuation. SPDT contact configuration suitable for switching applications. Supports a maximum switching current of 30A for high power circuits. Designed for PCB mounting with silver alloy contacts for durability.

Operates efficiently between temperatures of -40°C and 85°C. Coil resistance is 155Ω with a coil power of 900mW for low energy consumption. Compact dimensions: 32.2mm length, 27.5mm width, and 20.4mm height. High switching AC voltage rating of 277V ac for versatile use.

Environmentally friendly product compliant with RoHS standards. Ideal for applications in industrial machinery, automotive, telecommunications, and household appliances.

This relay is well suited for industrial, laboratory, construction, and commercial applications where compactness and reliable high-power switching are critical. Its compliance with environmental standards and excellent board space saving design make it an optimal choice for modern electronic systems.

Explore a broad range of Power Relays and electrical components at EnvMart for tailored industrial solutions.
