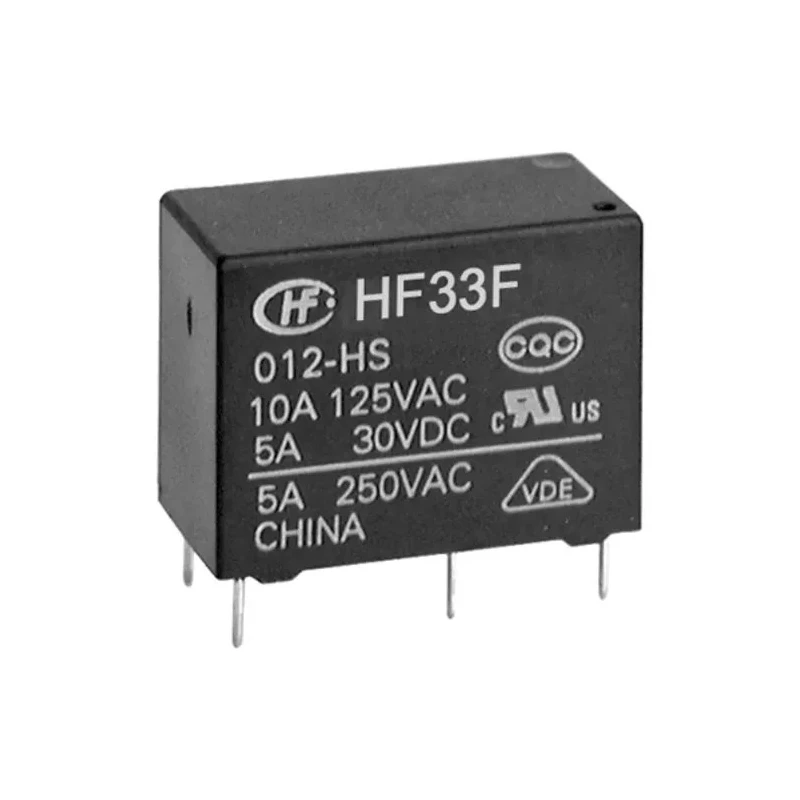

Hongfa Europe GMBH PCB Power Relay, 12V DC Coil Voltage, 10A Switching Current, SPST Contact Configuration HF33F/012-HSL3F
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 15.3mm |
| Length | 20.5mm |
| Model | HF33F/012-HSL3F |
| Width | 10.2mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF33F |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 320Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 200mW |
Key Features
- Operates with a coil voltage of 12V DC ensuring efficient actuation.
- Supports high switching currents up to 10A for demanding applications.
- Designed with a single pole single throw (SPST) contact configuration.
- Compact PCB mount design with low height of 15.3mm suitable for space-constrained circuits.
- Wide operating temperature range from -40°C to 70°C for harsh environment use.
- Coil resistance is 320 ohms with power consumption of 200mW.
- Switching voltages supported are 30V DC and 250V AC for versatile power switching.
- Durable silver alloy contacts ensure reliable performance and low contact resistance.
Product Description
Hongfa Europe GMBH HF33F/012-HSL3F PCB Power Relay is a high-quality, compact relay designed for PCB mounting with a coil voltage of 12V DC and capable of switching currents up to 10A. It features a SPST (Single Pole Single Throw) contact configuration that provides reliable switching performance in industrial and commercial electrical applications.
The relay operates efficiently within a wide temperature range from -40°C to +70°C, making it suitable for use in harsh and diverse environments. Its coil resistance of 320 ohms and coil power rating of 200mW ensure low power consumption while maintaining effective actuation.
With switching voltage ratings of 30V DC and 250V AC, this relay can handle various power switching requirements. The use of silver alloy contact material reduces contact resistance to 100mΩ, contributing to long operational life and consistent electrical performance.
The compact design measures 20.5mm in length, 10.2mm in width, and maintains a low mounting height of 15.3mm, ideal for space-limited PCB configurations. The relay complies with RoHS standards guaranteeing environmentally friendly manufacturing.
This PCB power relay is well-suited for use in automotive engines, household appliances, industrial machinery, medical equipment, and telecommunications. Its flux-proofed type construction enhances durability and reliability in demanding industrial and laboratory conditions.
Operates with a coil voltage of 12V DC ensuring efficient actuation. Supports high switching currents up to 10A for demanding applications. Designed with a single pole single throw (SPST) contact configuration. Compact PCB mount design with low height of 15.3mm suitable for space-constrained circuits.
Wide operating temperature range from -40°C to 70°C for harsh environment use. Coil resistance is 320 ohms with power consumption of 200mW. Switching voltages supported are 30V DC and 250V AC for versatile power switching.
Durable silver alloy contacts ensure reliable performance and low contact resistance. Compliance with RoHS standards ensures environmental safety. Ideal for automotive, industrial machinery, medical equipment, and telecommunications use cases.
Browse a large catalog of Power Relays, PCB components, and electrical automation products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC, ensuring efficient actuation.
It supports a maximum switching current of 10A, making it suitable for demanding applications.
This model features a single pole single throw (SPST) contact configuration.
The relay measures 20.5mm in length, 10.2mm in width, and has a height of 15.3mm, making it compact for PCB mounting.
It operates efficiently within a wide temperature range from -40°C to +70°C, suitable for harsh environments.
The relay is designed with durable silver alloy contacts, which ensure reliable performance and low contact resistance.
The coil resistance is 320 ohms, which contributes to its low power consumption of 200mW.
It supports switching voltages of 30V DC and 250V AC, providing versatility for various power switching needs.
This model is designed for PCB mounting, featuring PCB pin terminals for easy integration into circuits.
Yes, it complies with RoHS standards, ensuring environmentally friendly manufacturing practices.
It is well-suited for use in automotive engines, household appliances, industrial machinery, medical equipment, and telecommunications.
The contact resistance is 100mΩ, which contributes to its efficient electrical performance.
