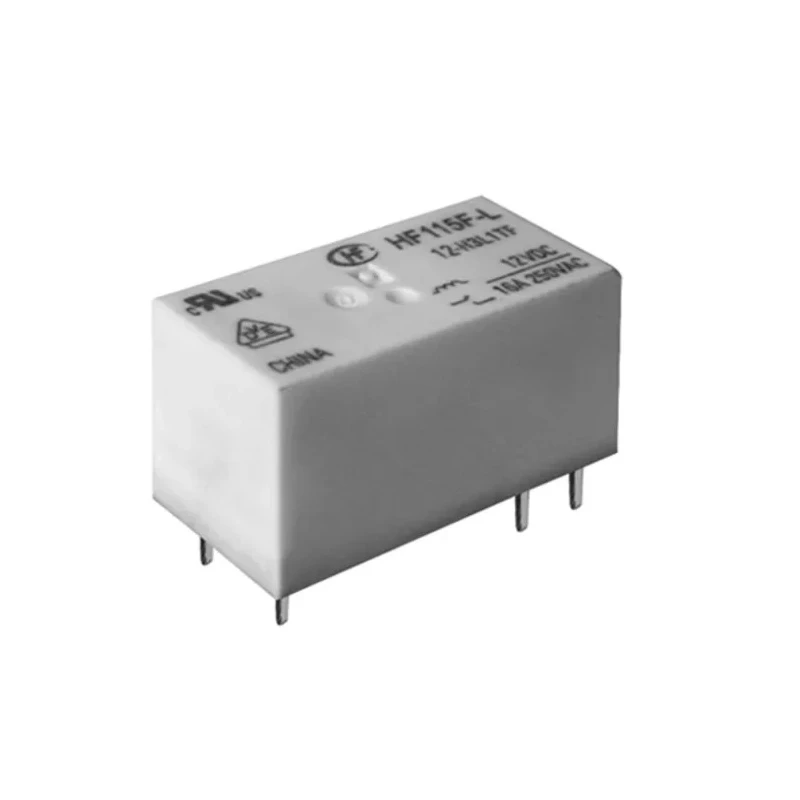

Hongfa Europe GMBH PCB Power Relay 12V DC Coil 20A SPST HF115F-L/12-H3L2TF(610)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 15.7mm |
| Length | 29mm |
| Model | HF115F-L/12-H3L2TF(610) |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF115F-L |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 20A |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 600mW |
| Outline Dimensions | (29.0 x 12.7 x 15.7) mm |
| Creepage distance | 11mm-NO/10mm-CO version |
Key Features
- Designed for PCB mount with compact dimensions of 29.0 x 12.7 x 15.7 mm.
- Switching current rated at 20A, suitable for 440V AC and 300V DC applications.
- Operates reliably in temperature range from -40°C to 85°C.
- Features high dielectric strength of 5kV between coil and contacts for safety.
- Constructed with silver alloy contacts for durable conductivity.
- Low contact resistance of 100mΩ ensures efficient switching performance.
- Coil resistance is 360Ω consuming 600mW coil power.
- Environmental friendly product with RoHS compliance.
Product Description
Hongfa Europe GMBH HF115F-L/12-H3L2TF(610) is a high-performance PCB Power Relay designed for industrial and automation applications. Featuring a 12V DC coil and SPST contact configuration, this relay handles switching currents up to 20A, with AC voltage endurance of 440V and DC voltage endurance of 300V. Its compact outline dimensions of 29.0 x 12.7 x 15.7 mm and low profile height of 15.7 mm make it ideal for space-constrained PCB mounting.
Built with silver alloy contacts, the relay offers low contact resistance of 100mΩ ensuring minimal power loss and reliable switching. It maintains stable operation in harsh environments between -40°C and 85°C, making it suitable for industrial, laboratory, HVAC, and manufacturing control circuits. The coil consumes 600mW power with a coil resistance of 360Ω, optimizing energy efficiency.
This latching relay includes safety features such as a 5kV dielectric strength barrier between coil and contacts and an 11mm creepage distance for normally open contacts, enhancing electrical isolation. The product complies with RoHS environmental standards, contributing to sustainable manufacturing practices.
Designed for rugged industrial and signal relay applications requiring reliable switching. Low height and compact size facilitate integration in electronic devices and PCB assemblies. Silver alloy contact material ensures durability and stable conductivity over long operational cycles.
Wide operating temperature range supports diverse environmental conditions. High electrical isolation and creepage distance reduce risks of shorts and electrical failures.
This Hongfa Europe GMBH power relay is an essential component for electrical control, automation, signal conditioning, and switching applications and is suitable for use in industrial equipment, commercial electronics, and control panels.
Explore more Power Relays and signal relays in the Electronics & Electricals category on EnvMart to find suitable components for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay can handle a maximum switching current of 20A.
This model operates with a coil voltage of 12V DC.
The outline dimensions are 29.0 mm in length, 12.7 mm in width, and 15.7 mm in height.
It features a Single Pole Single Throw (SPST) contact configuration.
It operates reliably in a temperature range from -40°C to 85°C.
The relay has a high dielectric strength of 5kV between the coil and contacts.
The contacts are made from silver alloy, which ensures durable conductivity.
The coil resistance is 360Ω.
This relay can switch up to 440V AC and 300V DC.
The contact resistance is 100mΩ, ensuring efficient switching performance.
It complies with RoHS environmental standards.
It uses PCB terminals for mounting.
