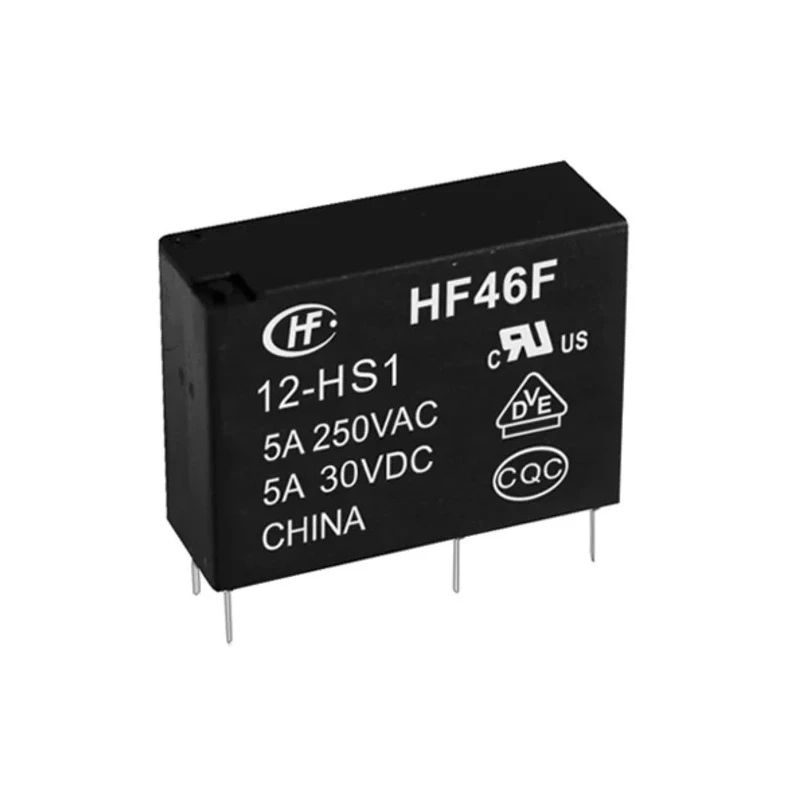

Hongfa Europe GMBH PCB Power Relay 12V DC Coil, 5A Switching Current, SPST, Compact PCB Mount HF46F/5-HS1F(610)

Hongfa Europe GMBH HF46F/5-HS1F(610) PCB power relay is a sub-miniature, intermediate power relay designed for reliable switching performance in industrial, automotive, and electronic applications. Featuring a 12V DC coil and a 5A switching current capability, it offers robust control for a range of low-power circuits. Its SPST contact configuration facilitates straightforward switching of single circuits, making it suitable for control interfaces in automation systems and signal routing within PCB assemblies.

The relay is constructed with silver alloy contacts, ensuring long-lasting durability and maintaining a low contact resistance of just 100mΩ for stable operation. The compact dimensions (15.3mm height, 20.5mm length, 7mm width) make it ideal for densely populated PCB layouts and space-constrained installations. The coil resistance is rated at 720Ω with a coil power of 200mW, optimizing the balance between efficiency and response time.

It offers a wide working temperature range from -40°C up to 85°C, facilitating deployment in environments prone to extreme thermal variation, such as automotive engine compartments, telecommunication equipment, household appliances, and industrial machinery. With a maximum switching DC voltage of 30V and AC voltage of 30V, the relay can safely operate in a variety of control logic and load switching scenarios.

Benefits include high power switching capability - up to 150W for DC - 10kV isolation between coil and contacts, and an endurance of up to 5 million cycles for reliable, long-term service. Environmental compliance is assured by RoHS certification.

This PCB Power Relay is suitable for circuit protection, signal switching, and control tasks in electronics manufacturing, automation systems, and equipment design. Typical industrial use cases include motor control boards, interface panels for machinery and instrumentation, and systems requiring compact relay solutions with trustworthy switching performance.

Reliable 12V DC coil operation enables versatile integration into control circuits. 5A switching current for AC and DC loads ensures flexibility in application. SPST contact configuration allows for straightforward on/off switching.

Compact PCB mount facilitates high-density circuit design. Silver alloy contact material and 100mΩ contact resistance support stable, low-loss operation. Wide temperature range suitable for outdoor, automotive, and industrial environments.

RoHS compliance guarantees environmentally safe and regulation-ready deployment. Long lifespan and high mechanical endurance for demanding industrial applications. Explore more PCB relays and Hongfa Europe GMBH products in the EnvMart catalog for electronics and industrial applications.
