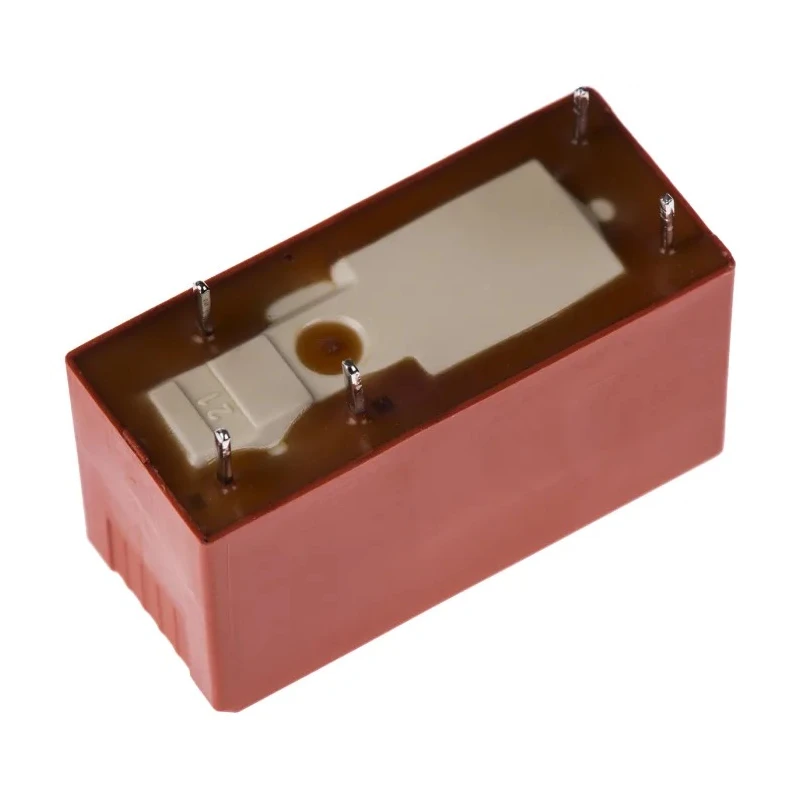

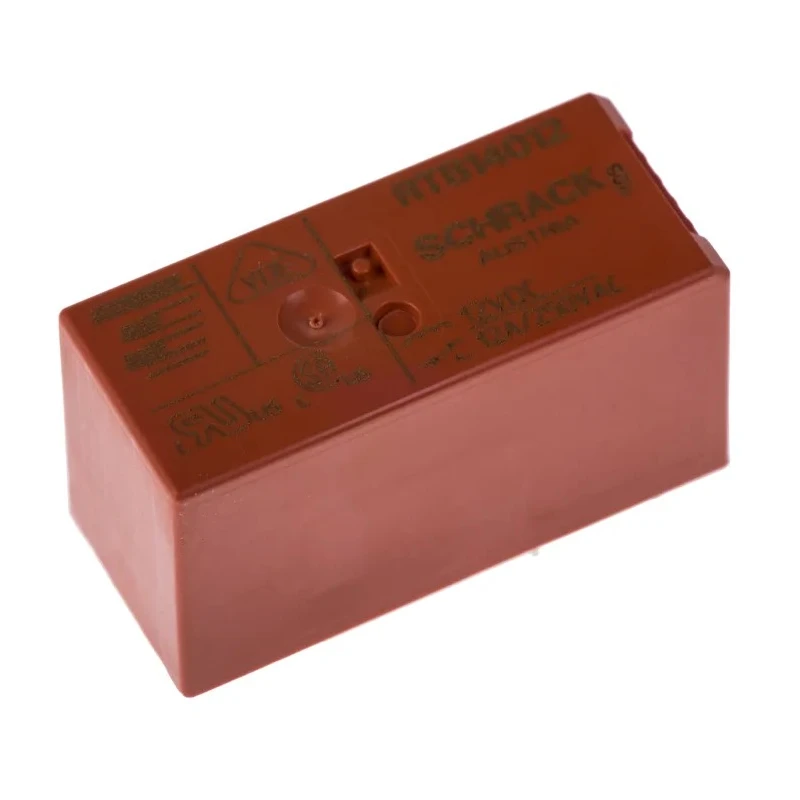

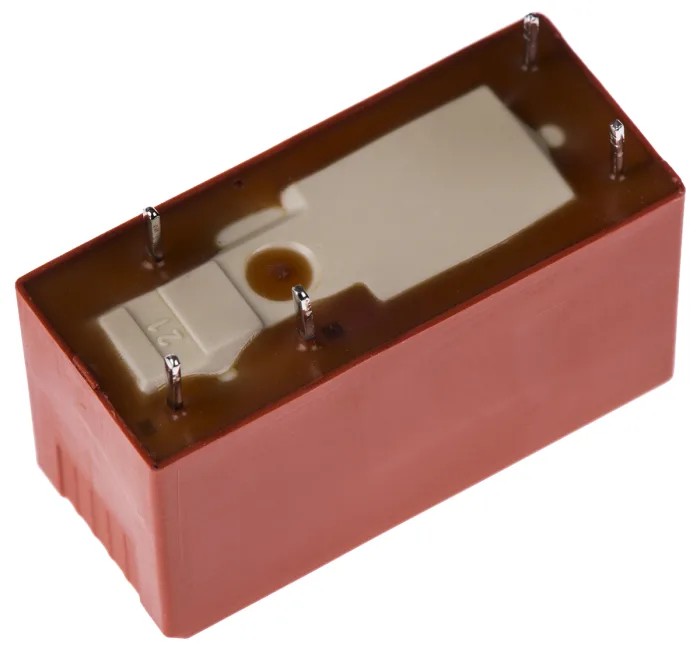

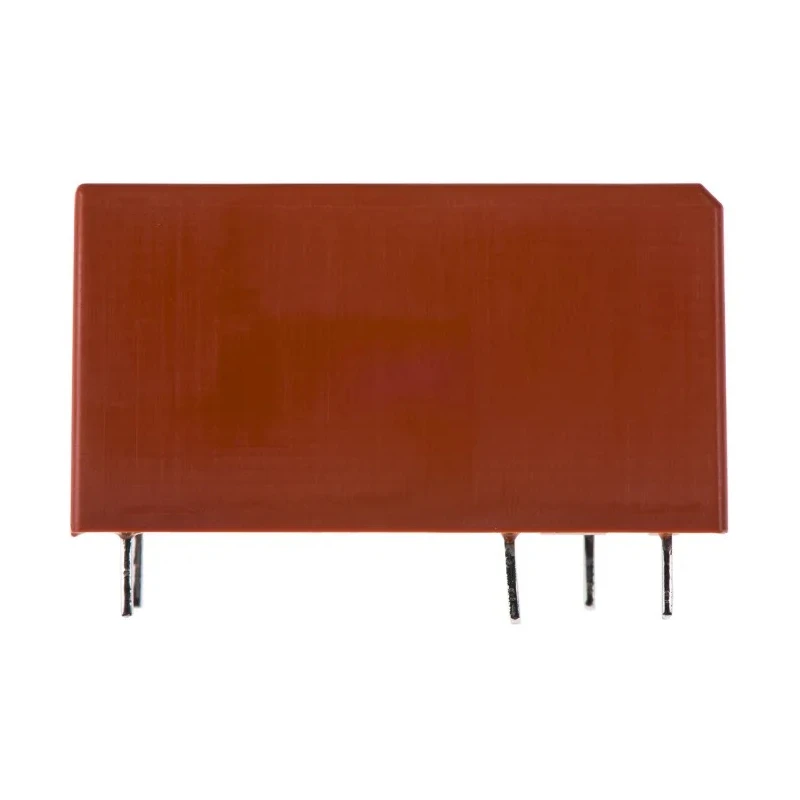

TE Connectivity PCB Power Relay 12V DC Coil 12A SPDT RTB14012
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTB14012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
Key Features
- Designed for reliable power switching up to 12A with SPDT contact arrangement.
- Operates with a 12V DC coil voltage for compatibility with standard PCB control systems.
- Compact through-hole mounting with solder terminals ensures secure installation.
- Silver nickel alloy contacts provide enhanced durability and electrical performance.
- Suitable for interface, automation, domestic, security lighting, and heating system applications.
- Wide operating temperature range from -40°C to 85°C for demanding environments.
- Compliance with RoHS standards for environmental safety.
- 400V AC switching voltage enables usage in diverse industrial and commercial settings.
Product Description
The TE Connectivity RTB14012 PCB Power Relay offers dependable switching performance for demanding industrial and commercial environments. Combining a compact form factor with robust technical specifications, this relay handles up to 12A switching current and operates on a 12V DC coil voltage, making it ideal for automation, security systems, lighting control, heating applications, and interface circuits.

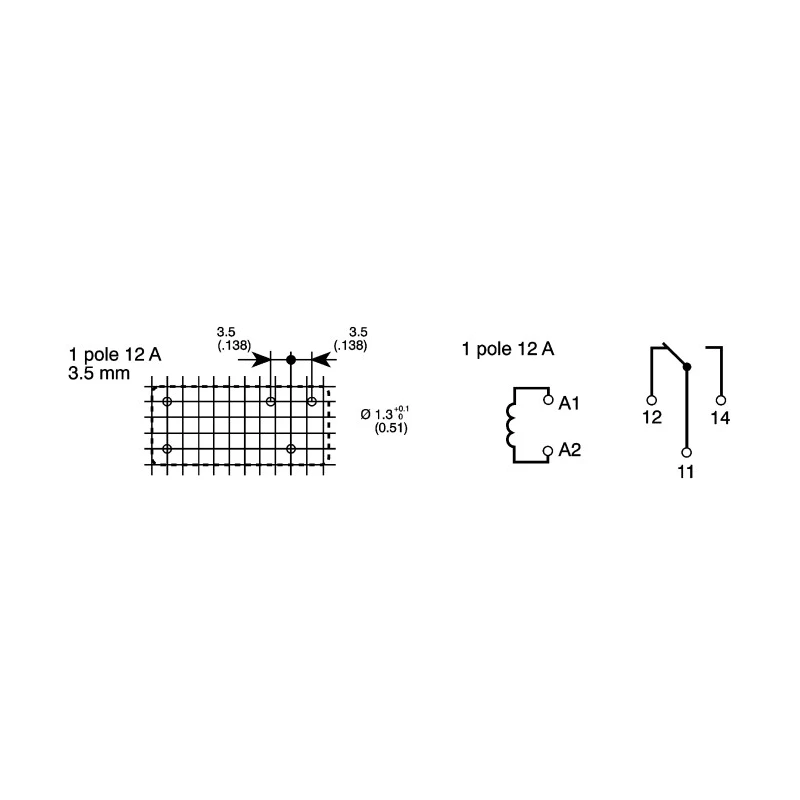

Featuring SPDT (Single Pole Double Throw) contact configuration, this relay can effectively manage both normally open and normally closed circuit operations. The relay is built with silver nickel alloy contacts to ensure reliable conductivity and longevity under frequent actuations, and utilizes through-hole PCB mounting for secure, streamlined integration into control panels and circuit boards.
Its solder terminal design simplifies installation, while the compact dimensions (29mm length, 12.7mm width, 15.7mm height) allow for space-saving deployment on populated PCBs. The coil resistance is specified at 360Ω, ensuring energy efficiency and fast response times. With a maximum switching power of 3kVA and switching AC voltage rated at 400V, this relay is suited for high-power switching applications, providing reliable operation across a spectrum of voltage and current requirements.
The RTB14012 relay operates in harsh environments, with a minimum operating temperature of -40°C and a maximum of 85°C. This wide range guarantees performance stability in both industrial and domestic applications. Compliance with RoHS standards underscores TE Connectivity’s commitment to environmental safety and regulatory adherence.
As part of the RT1 series, this relay offers flux proofing, creepage and clearance of 10mm, and wash tight configurations for enhanced protection. Additional certifications (UL, CSA, VDE) are referenced for certain series variants. Typical use cases include automation systems, interface modules, domestic appliances, security lighting circuits, and heating controls.
For engineers seeking a compact, reliable solution to power switching in PCB designs, the TE Connectivity RTB14012 relay provides robust electrical and operational features grounded in proven industrial performance. Explore the extensive TE Connectivity category on EnvMart for related PCB relays and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RTB14012 relay can handle a maximum switching current of 12A.
This model operates with a coil voltage of 12V DC.
The dimensions of the relay are 29mm in length, 12.7mm in width, and 15.7mm in height.
The relay features an SPDT (Single Pole Double Throw) contact configuration.
The switching AC voltage rating for the RTB14012 is 400V AC.
The coil resistance of this relay is specified at 360Ω.
The relay operates within a temperature range of -40°C to 85°C.
This relay uses PCB mounting with solder terminals for secure installation.
The contacts of the relay are made from silver nickel alloy, enhancing conductivity and longevity.
The RTB14012 relay complies with RoHS standards for environmental safety.
This relay is suitable for applications in automation, security systems, lighting control, and heating systems.
The RTB14012 relay is manufactured in Austria.
