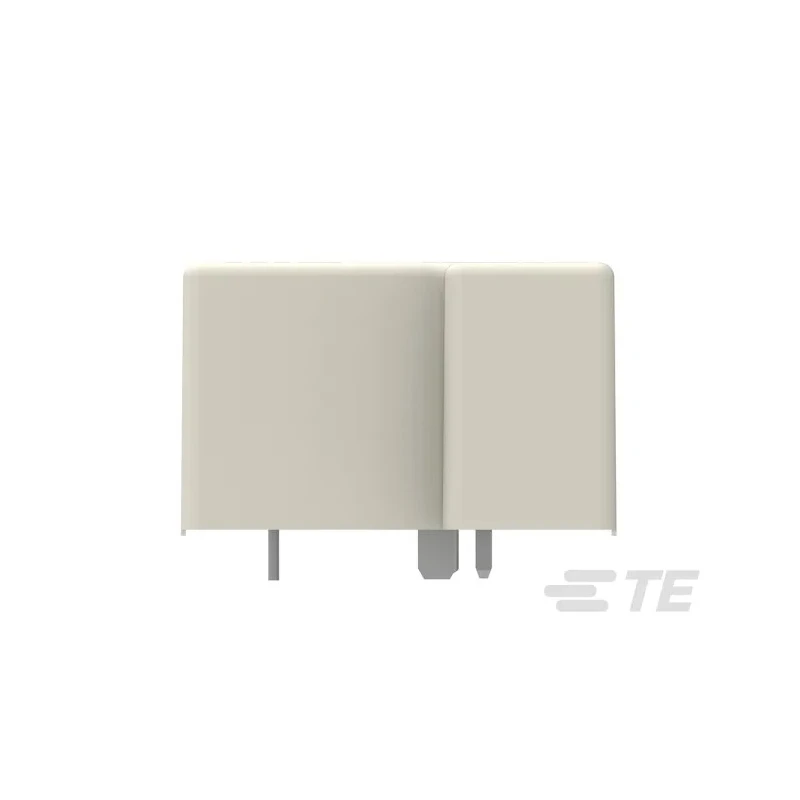

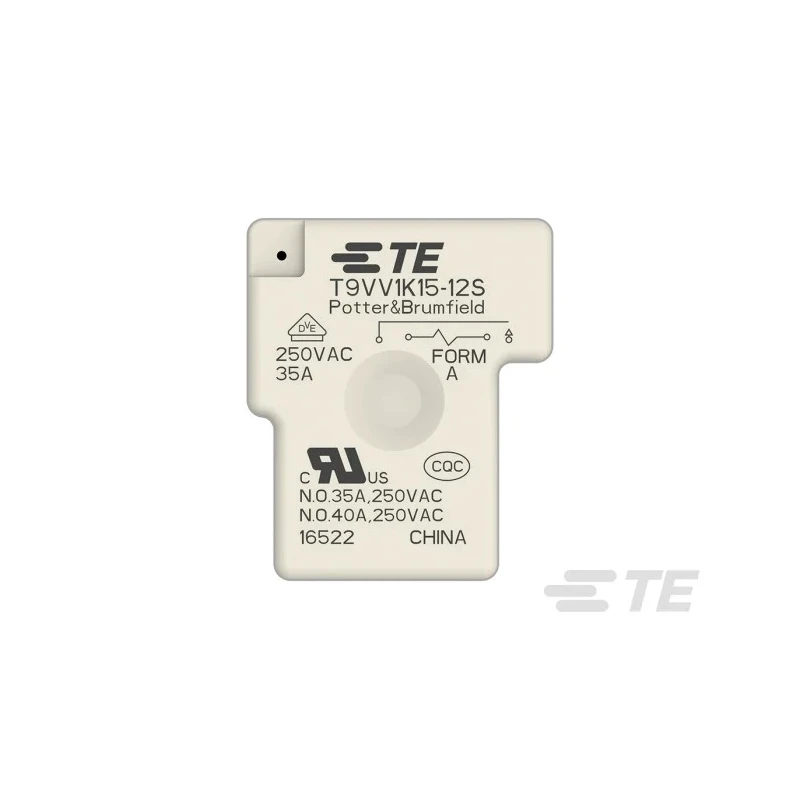

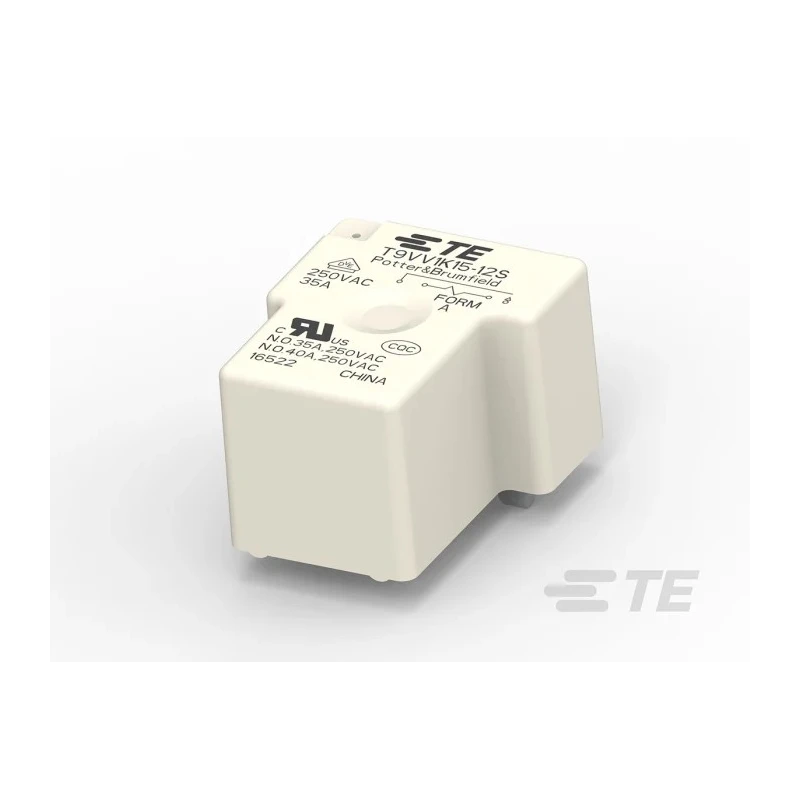

TE Connectivity PCB Power Relay 12V DC Coil, 40A, SPST, Solder Terminal, T9V Series 2027395-5

TE Connectivity 2027395-5 is a robust PCB power relay engineered for demanding industrial, electrical vehicle (EV), and photovoltaic inverter applications that require reliable high-current switching. Featuring a 12V DC coil voltage and a rated switching current of 40A, this relay ensures consistent performance in electrical load management, disconnect switch functions, and safety applications.

The relay incorporates an SPST (Single Pole Single Throw) contact configuration, offering straightforward, secure switching of high-power circuits. Its solder-type terminals facilitate firm PCB integration, making installation and maintenance hassle-free. The T9V Series relay is designed with an extended contact gap, enhancing isolation and safety especially in high-altitude installations.

Built for environmentally conscious and cadmium-free requirements, the T9V Series also supports coil holding voltage reduction down to 4.7V, reducing power consumption in standby scenarios. The relay's compact form factor (27.4mm x 32.5mm x 20.4mm) allows it to fit efficiently into dense electronic assemblies.

The TE Connectivity T9V series relays are recognized under UL, VDE, TÜV, and CQC certifications (not to be claimed unless required), underscoring their international compliance with industrial standards. Construction utilizes high-quality silver alloy contacts for durability and performance.

Typical use cases include electrical vehicle charging stations, charging cables, photovoltaic inverters, standby power units, washing machines, and dryers. Its operational temperature range from -40°C to 85°C ensures suitability for a wide variety of environments.

Industrial applications comprise electrical power control, smart energy systems, commercial automation, and sustainable energy management. The relay's high performance is critical in scenarios demanding reliable disconnect/safety switching and efficient energy utilization.

High performance PCB power relay suitable for industrial and EV charging stations. Operates with a 12V DC coil and enables switching currents up to 40A. Single pole single throw (SPST) contact configuration provides reliable switching.

Solder terminals for secure PCB mounting and easy integration. Extended contact gap improves isolation, suitable for higher elevation environments. Cadmium-free construction supports sustainable application requirements.

Compact size with dimensions: 27.4mm length, 32.5mm width, and 20.4mm height. Explore more in Power Relays and TE Connectivity solutions in the Electronics & Electricals category at EnvMart for advanced energy and automation needs.
