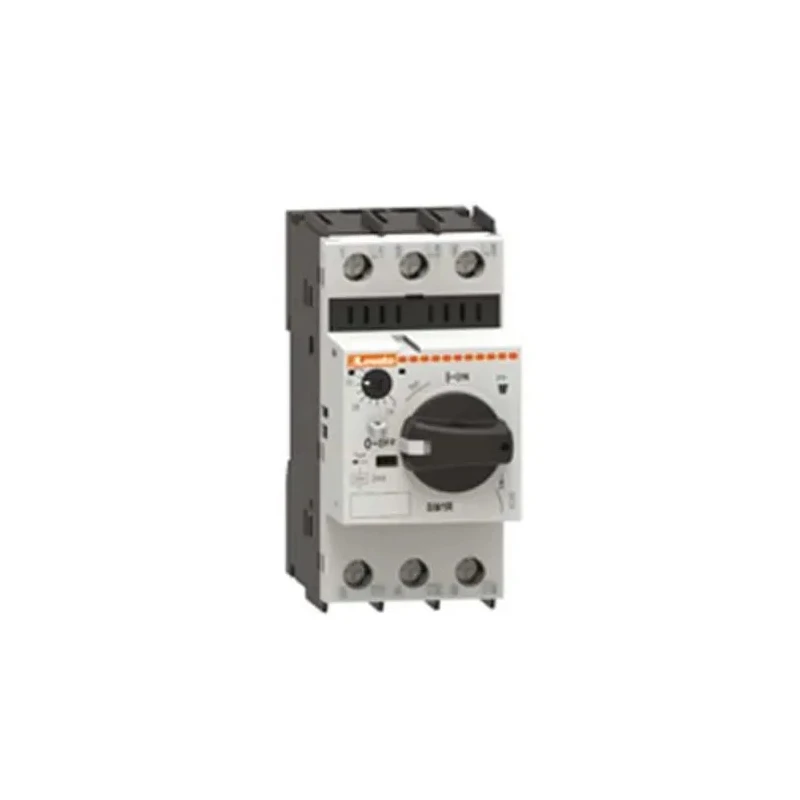

Lovato Motor Protection Circuit Breaker 13 - 18A, 690V, 3 Pole, Thermal Magnetic, IP20 SM1R
Specifications
| Country of Origin | India |
|---|---|
| Brand | Lovato |
| Model | SM1R |
| IP Rating | IP20 |
| Overall Length | 44.8mm |
| Current Rating | 13, 18A |
| Series | SM1R |
| Overall Width | 91.1mm |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Sensing type | Thermal Magnetic |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Standards/Approvals | UL 508, RoHS, IEC/EN 60947-1, EAC, cULus, CSA |
| Overall Depth | 96.6mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
| Lovato 400 V ac Motor Protection Circuit Breaker - 13 → 18 A, 25 kABrand | Lovato |
Key Features
- Protects motors in the 13 to 18 ampere current range.
- Rated for operation at supply voltages up to 690 V.
- Thermal and magnetic releases ensure rapid fault response.
- Integrated magnetic trip indicator avoids unsafe resetting.
- Three-pole configuration supports three-phase motors.
- IP20 protection guards against dust and accidental contact.
- Wide ambient operating temperature of -20°C to 60°C.
- Complies with UL, IEC, RoHS, and other major safety standards.
Product Description
The Lovato SM1R1800 Motor Protection Circuit Breaker is engineered for industrial applications requiring reliable and rapid protection for electric motors with currents from 13 to 18 A at voltages up to 690 V AC. This model features a three-pole configuration, enabling effective isolation and overcurrent protection for motor installations in demanding environments.
Equipped with both thermal and magnetic releases, the SM1R1800 quickly disconnects power in the event of overloads or short circuits, safeguarding both equipment and personnel. The integrated magnetic trip indicator provides a visual signal to avoid accidental closing during fault conditions, enhancing workplace safety.
Designed with a compact form (44.8 mm length, 91.1 mm width, 96.6 mm depth), the circuit breaker fits easily into control panels or electrical enclosures, optimizing valuable cabinet space. Rated to withstand IP20 ingress protection, it offers basic resistance against dust and accidental finger contact, suitable for standard industrial environments.
With compliance to standards including UL 508, IEC/EN 60947-1, RoHS, EAC, cULus, and CSA, users can be assured of robust and internationally recognized safety and quality. The device is engineered for continuous operation, reliably protecting motors within a wide ambient temperature range from -20°C to 60°C.
Industrial sectors that benefit from this solution include manufacturing, process automation, water treatment, HVAC, and infrastructure projects where continuous motor operation and reliable fault protection are critical. By integrating the Lovato SM1R1800, facility managers enhance both safety and operational uptime for their machinery and electrical systems.
Discover more Lovato motor circuit protection options and related control gear in the EnvMart Motor Circuit Breakers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Lovato Motor Protection Circuit Breaker has a current rating of 13 to 18 A.
It is rated for operation at supply voltages up to 690 V.
This model features a three-pole configuration, suitable for three-phase motors.
It is equipped with both thermal and magnetic releases for rapid fault response.
The circuit breaker has an IP20 rating, providing basic protection against dust and accidental contact.
It operates effectively within a wide ambient temperature range of -20°C to 60°C.
The overall dimensions are 44.8 mm in length, 91.1 mm in width, and 96.6 mm in depth.
It complies with UL 508, IEC/EN 60947-1, RoHS, EAC, cULus, and CSA standards.
It is designed for industrial applications including manufacturing, process automation, water treatment, HVAC, and infrastructure projects.
Yes, it features an integrated magnetic trip indicator to avoid unsafe resetting during fault conditions.
The Lovato Motor Protection Circuit Breaker is manufactured in India.
Yes, it is engineered for continuous operation, reliably protecting motors within its specified current range.
