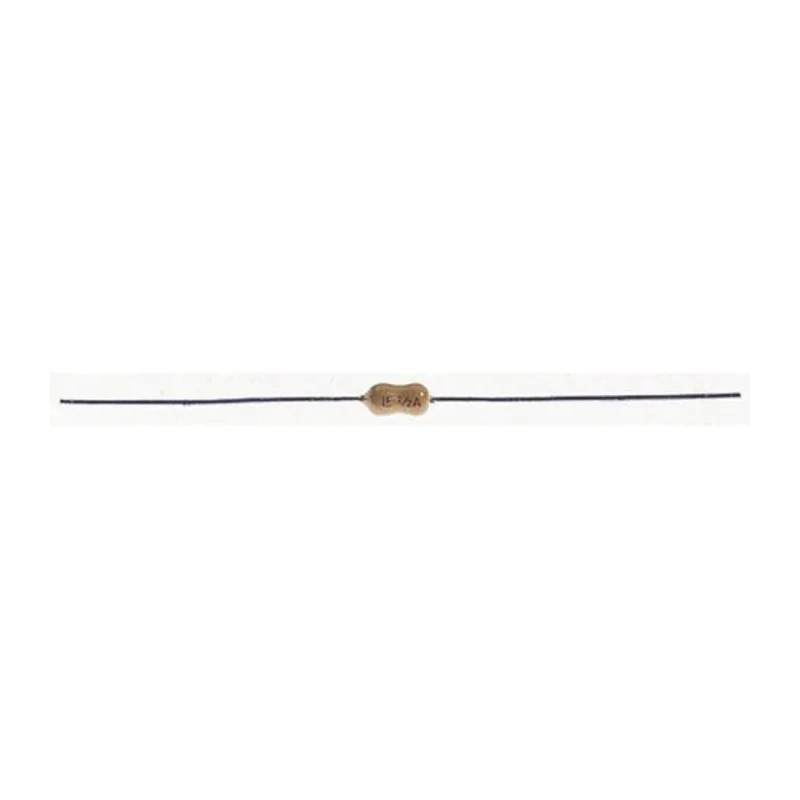

Littelfuse Non-Resettable Wire Ended Fuse Ceramic Body Time Delay 375mA 125 V ac/dc 50A Breaking Capacity 0473.375MAT1L
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125, 125V ac |
| Diameter | 3.18mm |
| Brand | Littelfuse |
| Body Material | Ceramic |
| Height | 7.11mm |
| Length | 27.78mm |
| Model | 0473.375MAT1L |
| Current Rating | 375mA |
| Series | 473 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Lead Length | 38.1mm |
| Breaking Capacity | 50A |
| Standards/Approvals | UL, CSA |
| Pay online using | Or choose to pay later via bank transfer |
| Lead Diameter | 0.64mm |
| Fuse Characteristics | Time Delay |
Key Features
- Rated for 375mA current and 125 V ac/dc voltage.
- Features a 50A breaking capacity suitable for multiple applications.
- Time-delay fuse characteristic for improved durability under transient conditions.
- Compact dimensions with length 27.78mm and lead length 38.1mm.
- Ceramic body material ensures robust and heat-resistant construction.
- Operates within temperature range -55°C to 125°C for versatile environments.
- Complies with UL and CSA standards for safety and performance.
- Part of Littelfuse Series 473 with thermoplastic polyamide body.
Product Description
Littelfuse 0473.375MAT1L Non-Resettable Wire Ended Fuse with a ceramic body and time delay characteristic is designed to provide precise protection for electrical circuits requiring enhanced in-rush withstand capability. It operates at a current rating of 375mA and voltage rating of 125 V ac/dc, making it suitable for both alternating and direct current applications.

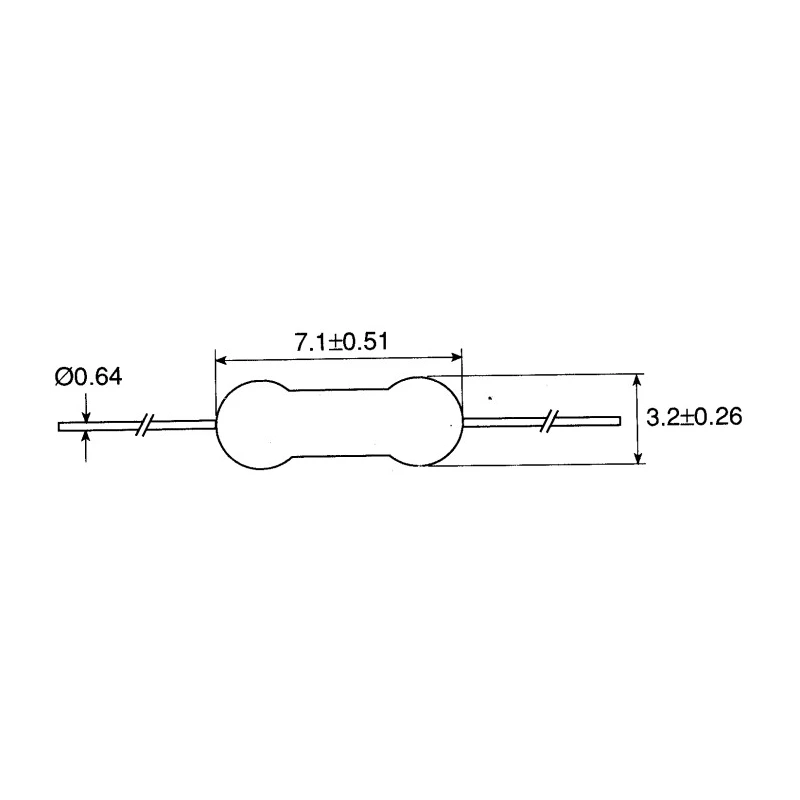

The fuse features a compact design with a length of 27.78mm, lead length of 38.1mm, diameter of 3.18mm, and height of 7.11mm, allowing installation in space-constrained assemblies. Its ceramic body provides durability and thermal stability, supporting operation in temperature ranges from -55°C to a maximum of 125°C.
With a breaking capacity of 50A and a time-delay fuse speed (characteristic T), it supports transient overloads without nuisance blowing. The fuse leads have a diameter of 0.64mm and the fuse meets UL and CSA safety standards, ensuring reliable and certified performance. It is part of the Littelfuse 473 Series which features thermoplastic polyamide bodies designed for efficient and long-lasting protection.
This fuse is well-suited for industrial, electrical automation, and control systems applications where non-resettable, reliable overcurrent protection is critical. It provides enhanced protection in compact assemblies and can be used in circuits sensitive to inrush currents.
Rated for 375mA current and 125 V ac/dc voltage. 50A breaking capacity supports high fault currents safely. Time-delay fuse characteristic mitigates nuisance trips due to transient surges. Ceramic body construction offers heat resistance and mechanical strength.
Operating temperature range suitable for harsh and varying ambient conditions. Compact size with precise dimensional specifications. Complies with UL and CSA standards for assured quality. Part of the robust Littelfuse Series 473 product line.
This Littelfuse fuse is ideal for electrical systems in industrial automation, manufacturing processes, and general electrical equipment requiring stable, non-resettable fuse protection. For more options in fuses, explore the Non Resettable Fuses category at EnvMart.
Explore more products in our Non-Resettable Fuses category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Littelfuse 0473.375MAT1L has a current rating of 375mA.
This model is rated for 125 V ac/dc voltage, making it suitable for both alternating and direct current applications.
It features a breaking capacity of 50A, which allows it to safely handle high fault currents.
The fuse has a length of 27.78mm, a diameter of 3.18mm, a height of 7.11mm, and a lead length of 38.1mm.
It operates within a temperature range of -55°C to 125°C, making it suitable for various environments.
This model features a time-delay fuse characteristic, which helps mitigate nuisance trips due to transient surges.
The Littelfuse 0473.375MAT1L is constructed with a ceramic body, providing durability and heat resistance.
It complies with UL and CSA standards, ensuring reliable performance and safety.
The fuse leads have a diameter of 0.64mm.
This fuse is well-suited for industrial, electrical automation, and control systems applications requiring reliable overcurrent protection.
It is part of the Littelfuse Series 473, which features thermoplastic polyamide bodies designed for efficient protection.
The time-delay feature allows the fuse to withstand transient overloads without nuisance blowing, enhancing its reliability in sensitive circuits.
