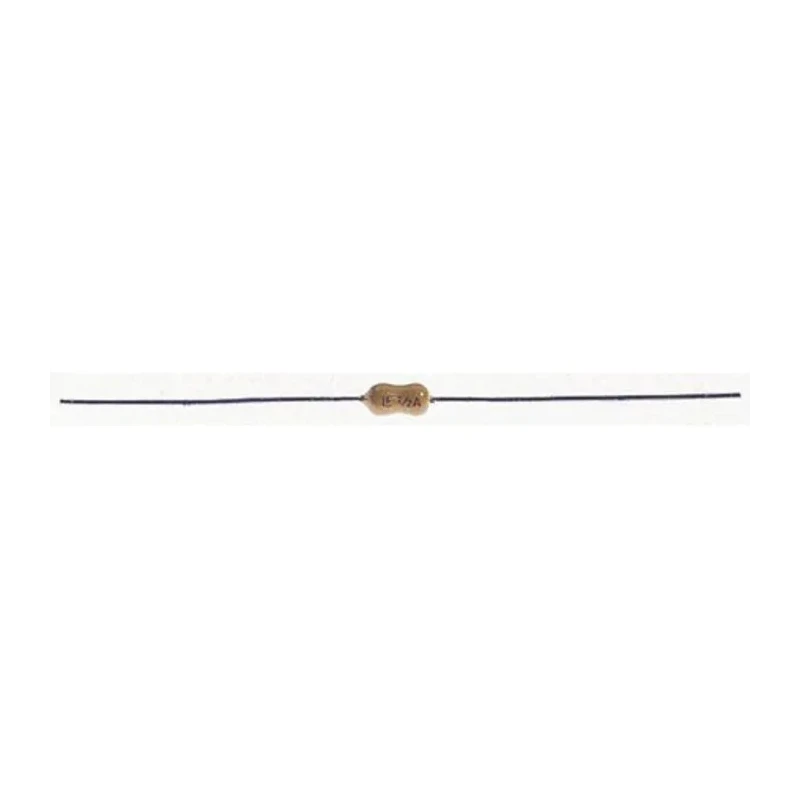

Littelfuse Non-Resettable Wire Ended Fuse Axial 5A 125V AC/DC Ceramic Body Time Delay 0473005.MRT1L
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125, 125V ac |
| Diameter | 2.8mm |
| Brand | Littelfuse |
| Body Material | Ceramic |
| Length | 27.78mm |
| Model | 0473005.MRT1L |
| Width | 7.11mm |
| Current Rating | 5A |
| Series | 473 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Lead Length | 52.4mm |
| Breaking Capacity | 50A |
| Standards/Approvals | UR, PEC, CSA |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 738-3009PBrand: LittelfuseManufacturers Part No.: 0473005.MRT1L |
| Lead Diameter | 0.64mm |
| Fuse Characteristics | Time Delay |
| Lead Orientation | Axial |
Key Features
- Fuse has an axial lead orientation for easy installation in tight spaces.
- Constructed with a durable ceramic body to withstand high temperatures and mechanical stress.
- Features time delay (slow blow) characteristics for enhanced inrush current tolerance.
- Compact dimensions of 27.78mm length and 7.11mm width with a 2.8mm diameter fuse element.
- Breaking capacity of 50A supports safety in fault conditions.
- Operating temperature range from -55°C to 125°C for use in various environments.
- Lead length of 52.4mm with 0.64mm lead diameter enhances connectivity reliability.
- Complies with industry standards UR, PEC, and CSA ensuring quality and safety.
Product Description
Littelfuse 0473005.MRT1L Non-Resettable Wire Ended Fuse is a premium quality fuse designed for electrical circuit protection in industrial, automation, and electrical applications. It operates at 5A current rating with a voltage capacity of 125V AC and DC, making it suitable for diverse low-voltage electrical circuits.
The fuse features an axial lead orientation with durable ceramic body materials, providing excellent heat resistance and mechanical strength. Its time delay fuse characteristics enable it to withstand temporary inrush currents without nuisance blowing, enhancing equipment longevity.
Physical dimensions include a fuse length of 27.78mm, width of 7.11mm, and a 2.8mm diameter element with 52.4mm lead length. The fuse can operate safely in a wide temperature range from -55°C up to 125°C, suitable for harsh industrial environments.
With a breaking capacity rated at 50A, this Littelfuse product ensures circuit protection under short-circuit conditions while maintaining compliance with UR, PEC, and CSA standards, guaranteeing adherence to international and national safety requirements.
Axial lead orientation for efficient mounting. Ceramic body for high temperature and mechanical durability. Time delay feature for inrush current tolerance. Compact and precise dimensions for space-saving installation. High breaking capacity of 50A for protection against faults.
Wide operating temperature range from -55°C to 125°C. Compliance with certification standards UR, PEC, CSA.
This fuse is ideal for use in electrical panels, industrial machinery, automation systems, and various other applications requiring reliable circuit protection. Choose Littelfuse Non-Resettable Wire Ended Fuse for enhanced safety and performance in your electrical designs.
Explore more Non-Resettable Fuses and circuit protection components at EnvMart for all your industrial and electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 5A, making it suitable for low-voltage electrical circuits.
It has a breaking capacity of 50A, ensuring effective circuit protection under fault conditions.

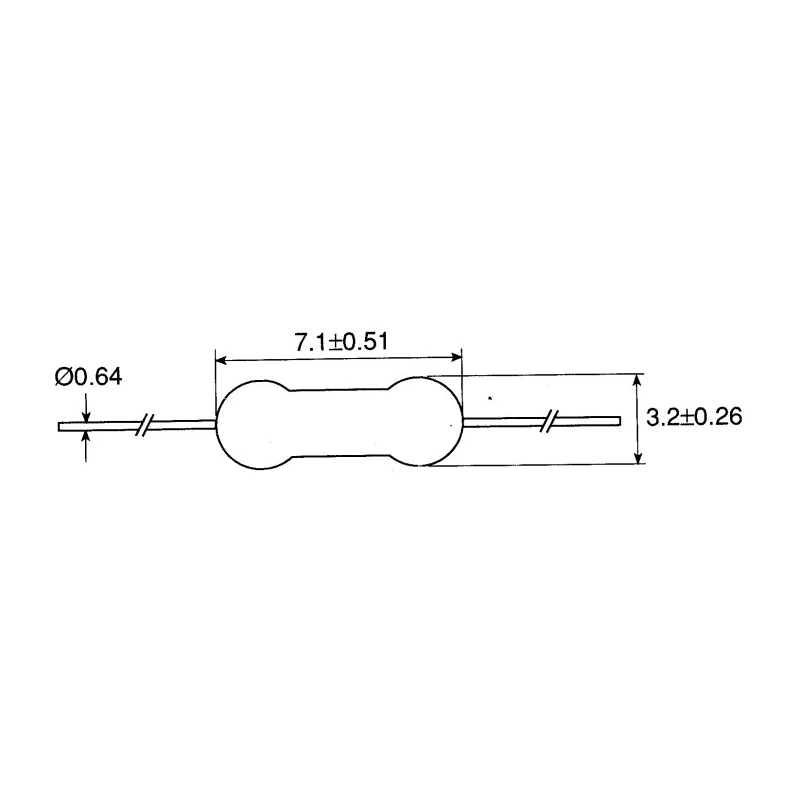

The fuse measures 27.78mm in length, 7.11mm in width, and has a diameter of 2.8mm.
It can operate safely at a maximum temperature of 125°C, suitable for various environments.
The fuse is constructed with a ceramic body, providing durability and heat resistance.
It features a lead length of 52.4mm with a lead diameter of 0.64mm, enhancing connectivity reliability.
This model features time delay (slow blow) characteristics, allowing it to tolerate temporary inrush currents without nuisance blowing.
It complies with industry standards UR, PEC, and CSA, ensuring quality and safety in its applications.
The fuse can operate at a minimum temperature of -55°C, making it suitable for harsh conditions.
It has an axial lead orientation, which allows for easy installation in tight spaces.
This fuse is ideal for use in electrical panels, industrial machinery, and automation systems requiring reliable circuit protection.
It supports a voltage capacity of 125V AC and DC, suitable for diverse low-voltage electrical circuits.
