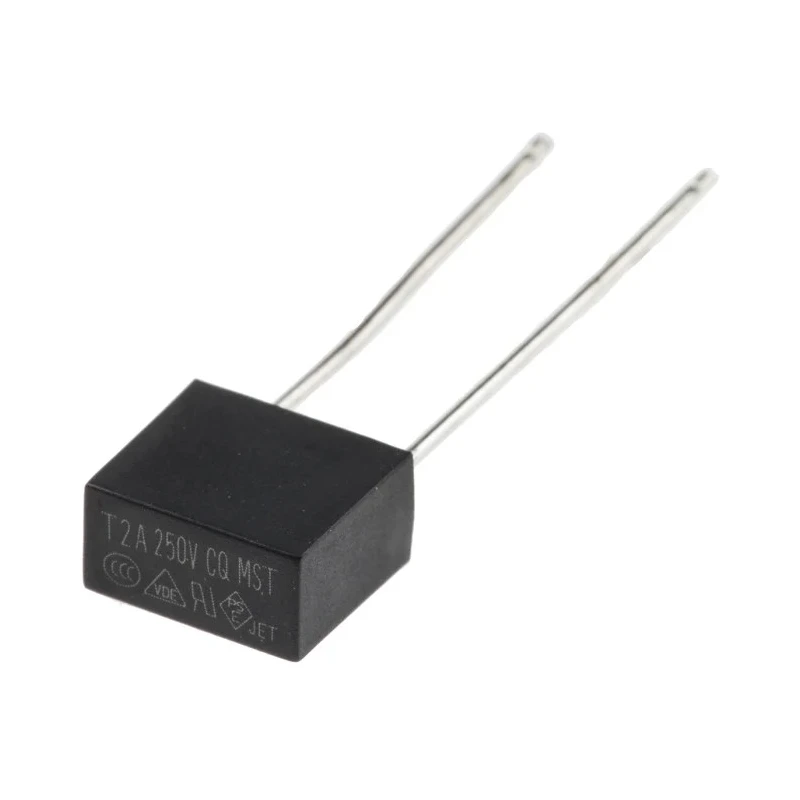

RS PRO Non-Resettable Fuse Radial 2A 250V AC Thermoplastic Body RS PRO 767-5055
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V ac |
| Diameter | 0.62mm |
| Brand | RS PRO |
| Body Material | Thermoplastic |
| Height | 7.7mm |
| Length | 8.35mm |
| Model | 767-5055 |
| Width | 4.3mm |
| Current Rating | 2A |
| Series | RS PRO |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Lead Length | 22mm |
| Breaking Capacity | 35A |
| Standards/Approvals | CSA, RoHS |
| Fuse Characteristics | Time Delay |
| Lead Orientation | Radial |
Key Features
- The fuse is rated for 2 amps current with a voltage of 250 volts AC.
- It has a time delay fuse characteristic suitable for diverse applications.
- The body material comprises high-quality thermoplastic for durability.
- Features radial lead orientation with 22 mm lead length and 0.62 mm lead diameter.
- Designed to operate within a temperature range of -55°C to 125°C.
- Breaking capacity is rated at 35 amps, ensuring effective circuit protection.
- Compact dimensions of approximately 8.35 mm length, 4.3 mm width, and 7.7 mm height.
- Certifications include CSA and RoHS compliance, ensuring safety and environmental standards.
Product Description
RS PRO 767-5055 Non-Resettable Fuse Radial 2A 250V AC is a high-quality slow blow fuse designed to provide reliable circuit protection in electrical and automation systems. Featuring a thermoplastic body with UL 94-V0 rating, this fuse combines safety with durability, ideal for industrial, commercial, and laboratory electrical applications.
The fuse has a radial lead orientation, enhancing ease of installation and secure connections. Its 2 ampere rating at 250 volts AC and a breaking capacity of 35 amps make it suitable for a wide range of low-voltage applications requiring time delay characteristics.
Constructed with tin-plated copper pins and tested to stringent industry standards including MIL-STD-202G vibration and salt spray resistance, this fuse ensures dependable operation even in challenging environments. It operates reliably within a temperature range from -55°C to 125°C.
Compact dimensions of 8.35 mm length, 4.3 mm width, and 7.7 mm height allow integration into space-limited electrical assemblies. The fuse's thermoplastic polyamide body further ensures excellent electrical insulation and mechanical strength.
The fuse is rated for 2 amps current with a voltage of 250 volts AC. Time delay characteristic suitable for sensitive electronics. Radial lead orientation with 22 mm lead length and 0.62 mm lead diameter. Breaking capacity of 35 amps for robust circuit protection.
Operates between -55°C and 125°C for thermal stability. Thermoplastic body material with UL 94-V0 safety rating. Meets CSA and RoHS compliance certifications. Manufactured in Taiwan, Province Of China.
This fuse is ideal for protecting circuits in industrial automation, electrical installations, manufacturing equipment, and commercial electronic devices. Its reliable time delay capability safeguards sensitive components against transient surges and overload conditions, ensuring longevity and safety.
Discover more quality RS PRO electrical components and supplies through EnvMart’s comprehensive catalog, designed to meet professional and industrial needs with precision and trust.
Explore more products in our Non-Resettable Fuses category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 2 amps current at a voltage of 250 volts AC.
The breaking capacity is rated at 35 amps, providing effective circuit protection.
It has compact dimensions of approximately 8.35 mm in length, 4.3 mm in width, and 7.7 mm in height.
This unit features a radial lead orientation with a lead length of 22 mm and a diameter of 0.62 mm.
It operates reliably within a temperature range of -55°C to 125°C.
The body is made from thermoplastic material, which provides excellent electrical insulation and mechanical strength.
This model meets CSA and RoHS compliance certifications, ensuring safety and environmental standards.
It has a time delay characteristic, making it suitable for sensitive electronics and protecting against transient surges.
This fuse is ideal for protecting circuits in industrial automation, electrical installations, manufacturing equipment, and commercial electronic devices.
The fuse is manufactured in Taiwan, Province Of China.
The thermoplastic body has a UL 94-V0 safety rating, indicating good flame resistance.
The radial lead orientation enhances ease of installation and secure connections in electrical assemblies.
