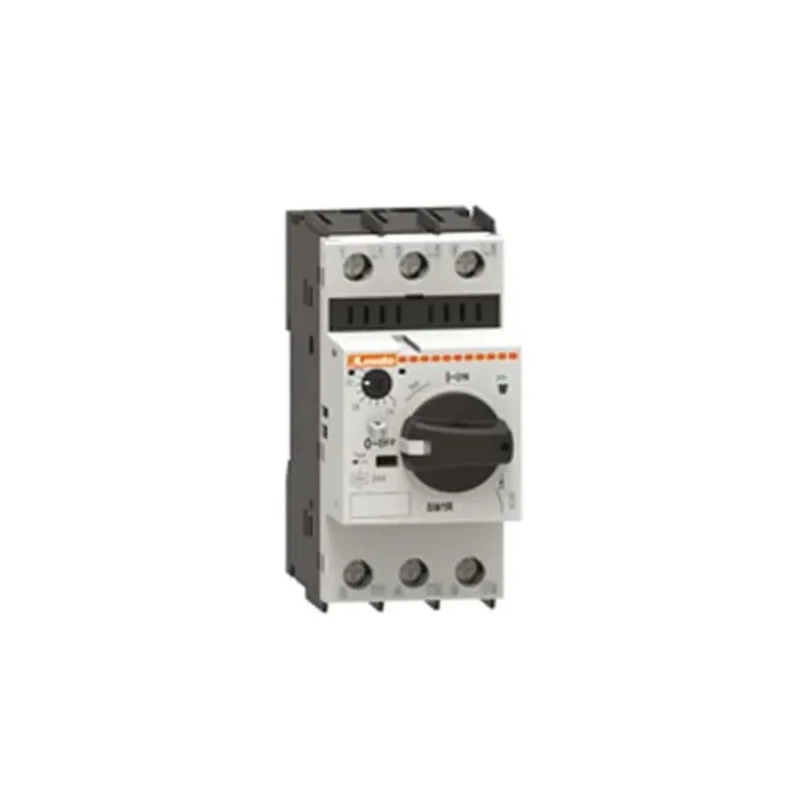

Lovato Motor Protection Circuit Breaker, Thermal Magnetic, 630 mA / 1A, 690V, 3 Poles, IP20 SM1R
Specifications
| Country of Origin | India |
|---|---|
| Brand | Lovato |
| Model | SM1R |
| IP Rating | IP20 |
| Overall Length | 44.8mm |
| Current Rating | 630, 1mA |
| Series | SM1R |
| Overall Width | 91.1mm |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Sensing type | Thermal Magnetic |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Standards/Approvals | cULus, EAC, UL 508, IEC/EN 60947-1, CSA, RoHS |
| Overall Depth | 96.6mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
| Lovato 400 V ac Motor Protection Circuit Breaker - 0.63 → 1 A, 100 kABrand | Lovato |
Key Features
- Thermal and magnetic releases protect motors from overload and short-circuit conditions.
- Rated for 630 mA and 1A current, suitable for diverse motor applications.
- Maximum supply voltage of 690V supports high-performance industrial environments.
- IP20 ingress protection ensures basic safety against dust and accidental contact.
- Compact 3-pole unit with dimensions 44.8x91.1x96.6 mm enables easy panel installation.
- Wide operating temperature range from -20°C to 60°C for versatile deployment.
- Conforms to IEC/EN 60947-1, UL 508, cULus, EAC, CSA, RoHS standards for compliance.
- Integrated magnetic trip indicator prevents closure during detected short-circuit events.
Product Description
The Lovato SM1R0100 Motor Protection Circuit Breaker is a specialized industrial device engineered for safeguarding electric motors from overload and short-circuit events. With its thermal magnetic sensing technology, the breaker offers dual protection and quick response to hazardous conditions, ensuring uninterrupted motor performance in demanding automation and control environments.
This unit is rated for a current of 630 mA and 1A, delivering reliable protection for a range of motor applications operating up to 690V. The design features three poles and is intended for integration into control panels, machinery, and automated systems where safety and reliability are paramount.
Safety and compliance are at the core of this circuit breaker, meeting international standards such as IEC/EN 60947-1, UL 508, cULus, EAC, CSA, and RoHS. The IP20 rating provides basic ingress protection against dust and accidental contact, suitable for standard industrial installations.
The compact housing measures 44.8 mm in length, 91.1 mm in width, and 96.6 mm in depth, facilitating straightforward installation and space-efficient panel design. The integrated magnetic trip indicator is a key innovation, preventing closure operations when short-circuit conditions are detected.
Operational flexibility is assured with a wide ambient temperature range of -20°C to 60°C, making the SM1R0100 suitable for diverse environments such as manufacturing, HVAC, laboratory, water treatment, and commercial facilities.
Applications include motor starter protection, automation control gear, industrial processing equipment, and HVAC systems. Users benefit from advanced protection functionality, compliance with rigorous standards, and robust build quality for long-term performance.
Explore the full range of motor protection circuit breakers in the 'Motor Circuit Breakers' category or discover other Lovato industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 630 mA and 1A, making it suitable for various motor applications.
The maximum supply voltage for this unit is 690V, which supports high-performance industrial environments.
It is a compact 3-pole unit designed for integration into control panels and machinery.
The circuit breaker has an IP20 ingress protection rating, providing basic safety against dust and accidental contact.
It operates within a wide temperature range from -20°C to 60°C, allowing for versatile deployment in various environments.
It conforms to several international standards including IEC/EN 60947-1, UL 508, cULus, EAC, CSA, and RoHS.
The overall dimensions of this unit are 44.8 mm in length, 91.1 mm in width, and 96.6 mm in depth.
It utilizes thermal magnetic sensing technology to protect motors from overload and short-circuit conditions.
Yes, it features an integrated magnetic trip indicator that prevents closure during detected short-circuit events.
It is suitable for applications such as motor starter protection, automation control gear, industrial processing equipment, and HVAC systems.
The country of origin for this product is India.
This model belongs to the SM1R series, which includes various motor protection circuit breakers.
