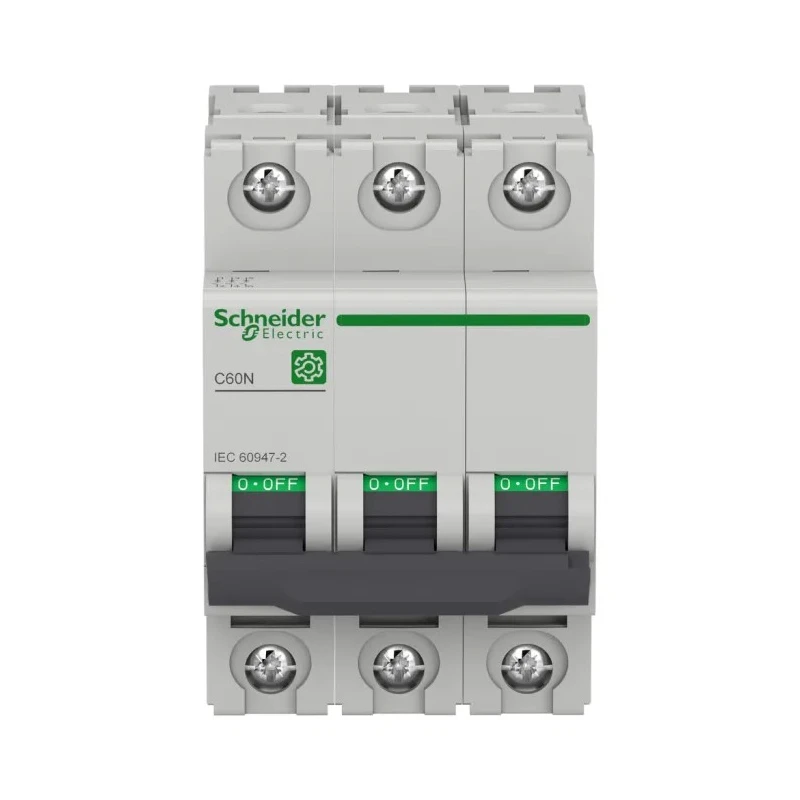

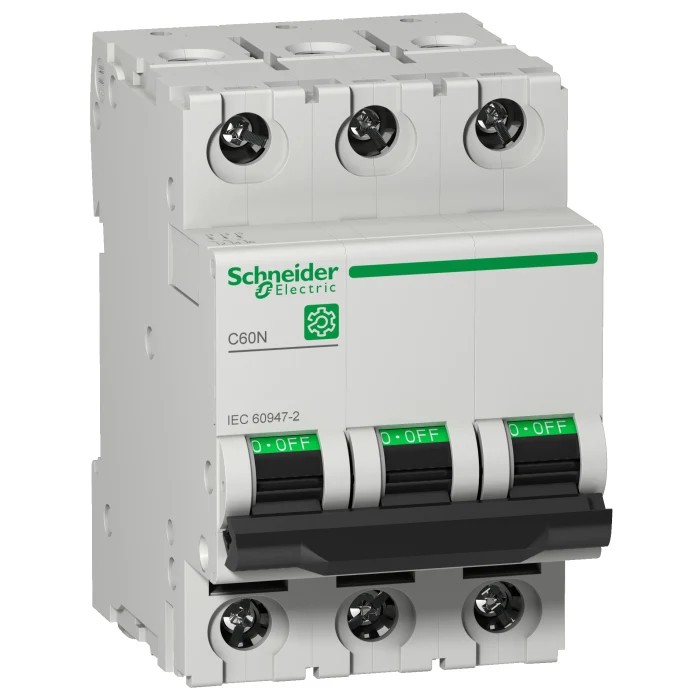

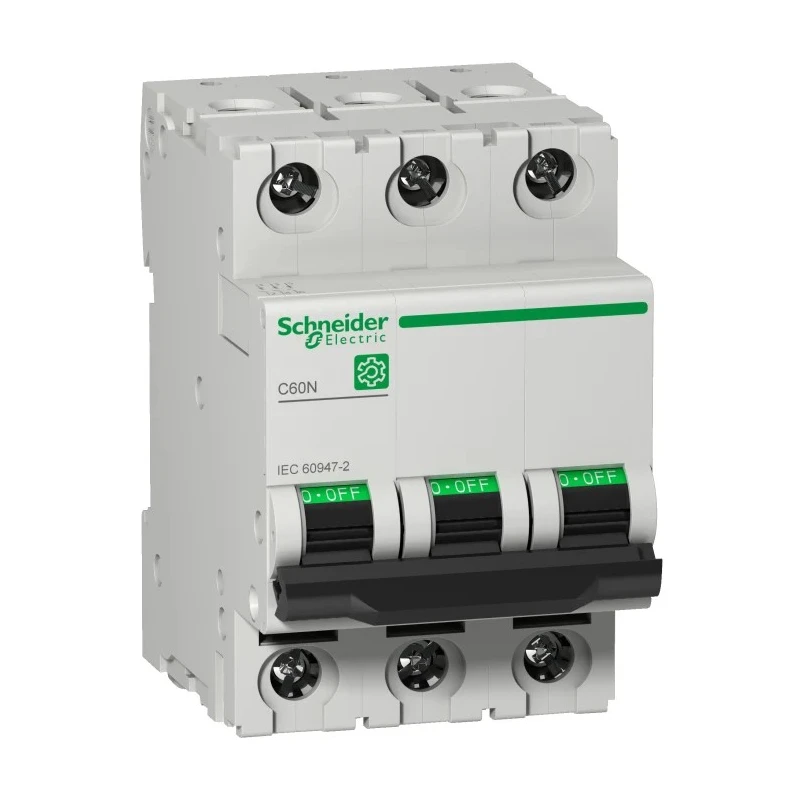

Schneider Electric Multi9 C60N Miniature Circuit Breaker, 3-Pole, 6A, Type C, 125V DC, 10kA Breaking Capacity M9F11306

Schneider Electric M9F11306 Miniature Circuit Breaker (MCB) is a high-performance low voltage circuit protection device engineered for industrial and residential electrical distribution systems. This 3-pole breaker supports 6A rated current and is equipped with Type C tripping characteristics, making it suitable for applications requiring moderate inrush current tolerance such as lighting and motor protection.

Designed to operate at a rated DC voltage of 125 volts, the breaker has a robust breaking capacity of 10 kiloamperes ensuring protection against high fault currents. Compliance with EN/IEC 60947-2 standard, as well as EN/IEC 60898-1, guarantees conformity with recognized industrial and residential electrical safety requirements.

The M9F11306 model features thermal magnetic tripping mechanism that combines a fast response to short circuits with thermal protection against overloads. It has a practical clip-on mounting type for DIN rail installation, aiding quick and secure integration into control panels. The tunnel terminal type and 6 pitch width (54 mm) enable flexible wiring while maintaining compactness.

Operational temperatures range from -30°C to 70°C, making it adaptable to diverse environments. Its electrical endurance of 10,000 operational cycles and mechanical endurance of 20,000 guarantee extended service life. The unit's rated insulation voltage (Ui) is 500VAC and impulse withstand voltage (Uimp) is 6kV, contributing to its durability against voltage surges.

Dimensionally the unit measures 54 mm width, 81 mm height, and 72 mm depth, and weighs 0.36 kg, rendering it suitable for space-conscious installations. The product is color-coded light grey (RAL7035) and offers an IP20 degree of protection on terminals.

3-pole configuration protects three separate circuits simultaneously. 6 amp rated current suitable for distribution applications. Type C thermal magnetic trip curve for enhanced protection against overload and short circuit.

Clips securely onto DIN rail for easy installation. High breaking capacity of 10 kiloamperes guarantees safety under fault conditions. Compact dimensions of 54mm width, 81mm height, and 72mm depth save panel space. Thermal magnetic trip mechanism ensures fast and reliable tripping response.

Operates reliably in ambient temperatures from -30°C to 70°C. Electrical endurance of up to 10000 cycles and mechanical endurance up to 20000 cycles. Rated insulation voltage of 500VAC and impulse withstand voltage of 6kV.

This model is specifically designed for original equipment manufacturers (OEMs) and control panel builders requiring dependable circuit protection solutions. It is ideal for use in industrial, commercial, and residential electrical distribution and control systems where consistent, safe interruption of electrical faults is essential.
