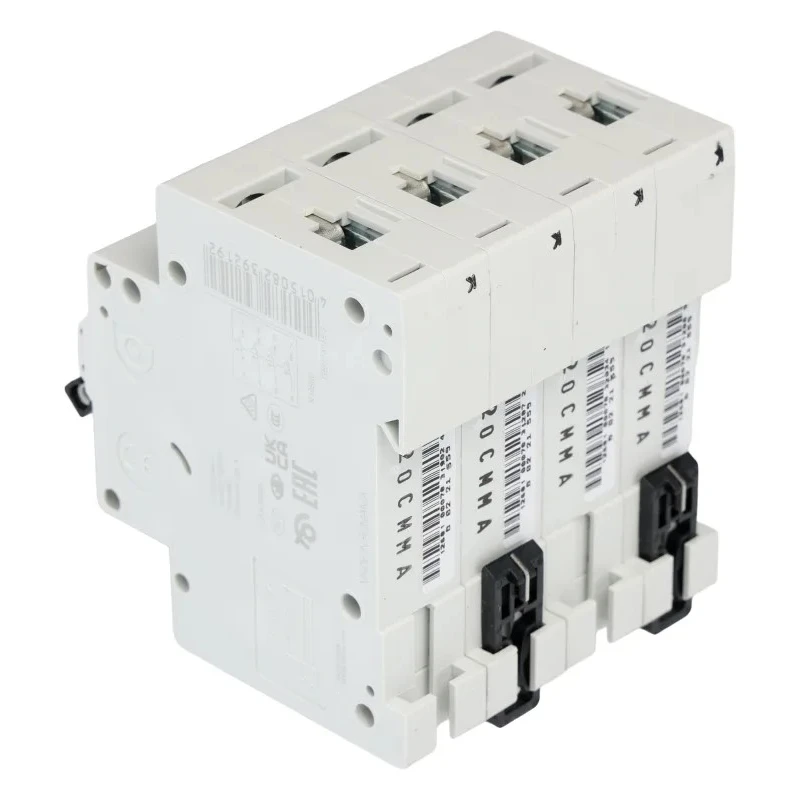

ABB Miniature Circuit Breaker, 4 Poles, 20A Current Rating, Type C, 400V AC, 6 kA Breaking Capacity 239219 FAZ6-C20/4



Category Miniature Circuit Breaker (MCB) Brand ABB Condition New

Specifications

Country of Origin	India
Range	xEffect
Brand	ABB
Model	239219 FAZ6-C20/4
Depth	62mm
IP Rating	IP20
Width	17.5mm
Mount Type	DIN Rail
Current Rating	20A
Series	xEffect
Breaking Capacity	6kA
Number of Poles	4
Standards/Approvals	IEC/EN 60947-2
Rated AC Voltage	400V ac
Tripping Characteristics	Type C
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch
Break Time	Instantaneous

Key Features

Designed for industrial and commercial electrical protection.
Type C tripping characteristic suitable for inductive loads.
Mounts easily on standard DIN rail systems.
Compact dimensions of 17.5mm width and 62mm depth save panel space.
Thermal magnetic trip mechanism ensures fast interruption on faults.
Rated with IP20 for indoor moisture resistance.
Conforms to IEC/EN 60947-2 standards for quality and safety.

Product Description

Eaton 239219 FAZ6-C20/4 Miniature Circuit Breaker is a robust electrical protection device designed for industrial applications requiring reliable circuit interruption. It supports a rated current of 20 amps across 4 poles with a Type C tripping characteristic, ideal for handling inductive loads such as motors and transformers effectively without nuisance tripping. The device accommodates an AC voltage rating up to 400V and features a breaking capacity of 6 kA, ensuring rapid disconnection in fault conditions to safeguard electrical installations.

The compact design with dimensions of 17.5mm width and 62mm depth allows efficient use of panel space and easy DIN rail mounting. Equipped with a thermal magnetic trip mechanism, it combines thermal and magnetic protection for overload and short circuit conditions. Its IP20 rating makes it suitable primarily for indoor environments, providing protection against solid objects but limited moisture resistance. Compliance with IEC/EN 60947-2 standards confirms its adherence to global safety and performance benchmarks.

This Eaton MCB is widely employed in industrial automation systems, commercial electrical installations, and manufacturing environments to secure equipment and maintain operational safety. Its quick response to electrical faults minimizes damage risks and helps maintain compliance with electrical safety standards.

Industrial and commercial circuit protection with 4 poles. Type C tripping for effective inductive load handling. Mount Type DIN rail for standardized installation. 6 kA breaking capacity for high fault current interruption.

Compact form factor saves panel space. IP20 rating suitable for indoor electrical panels. Thermal magnetic trip mechanism.

Eaton, a renowned name formerly known as Moeller, continues to provide reliable and efficient circuit protection devices. Explore more miniature circuit breakers and electrical components on EnvMart to find the perfect fit for your industrial and commercial electrical needs.

Explore more products in our Miniature Circuit Breaker (MCB) category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a current rating of 20A.

It features a breaking capacity of 6 kA, allowing for effective interruption of high fault currents.

The rated AC voltage for this unit is 400V.

This circuit breaker has 4 poles, making it suitable for multi-phase applications.

It has a Type C tripping characteristic, which is suitable for inductive loads such as motors and transformers.

The dimensions are 17.5mm in width and 62mm in depth, allowing for efficient panel space usage.

It is designed for mounting on standard DIN rail systems, facilitating easy installation.

This circuit breaker has an IP20 rating, indicating it is suitable for indoor use with protection against solid objects but limited moisture resistance.

It conforms to IEC/EN 60947-2 standards, ensuring compliance with global safety and performance benchmarks.

It utilizes a thermal magnetic trip mechanism for effective overload and short circuit protection.

This miniature circuit breaker is widely employed in industrial automation systems and commercial electrical installations to secure equipment and maintain operational safety.

This model is part of the xEffect series, which is designed for robust electrical protection.
