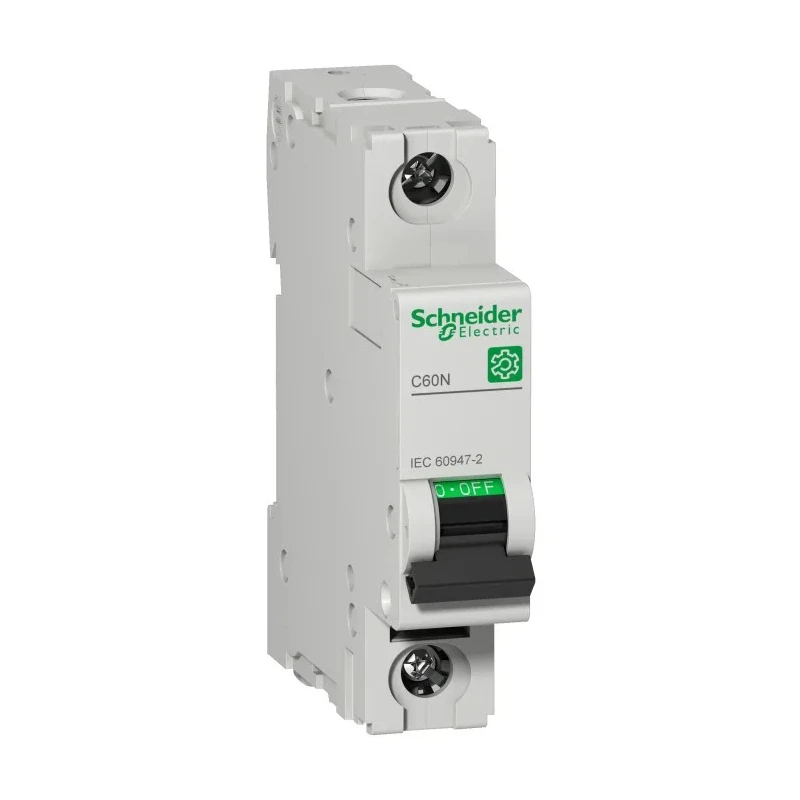

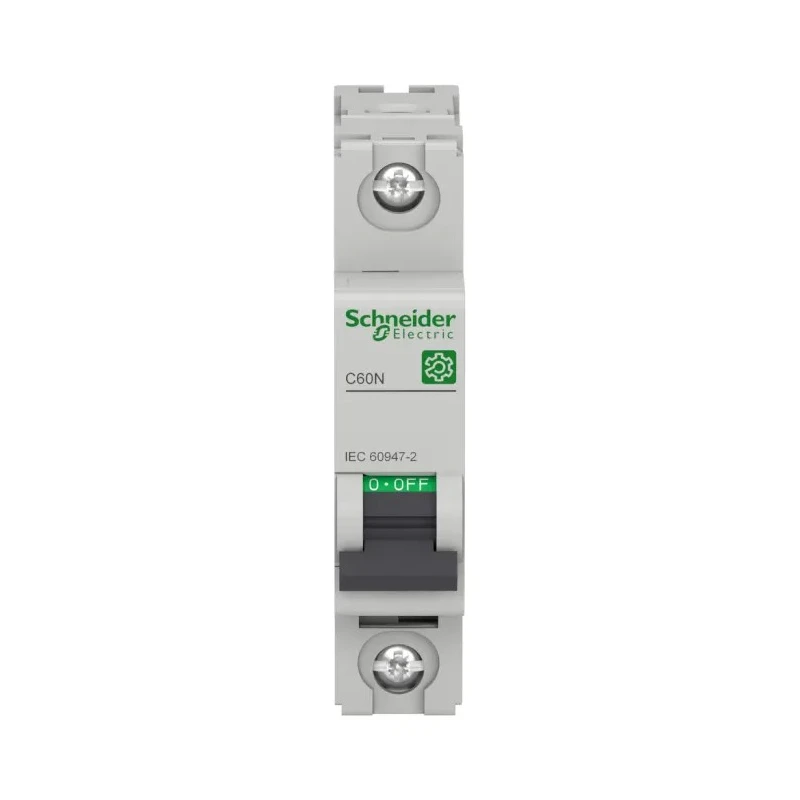

Schneider Electric Multi9 C60N Miniature Circuit Breaker 1-Pole 20A Type C 240V ac 72V dc 10kA Breaking M9F11120
Specifications
| Country of Origin | Bulgaria |
|---|---|
| Range | Multi9 |
| Brand | Schneider Electric |
| Height | 81mm |
| Model | M9F11120 |
| Depth | 72mm |
| IP Rating | IP20, IP40 |
| Width | 18mm |
| Mount Type | Clip-on |
| Current Rating | 20A |
| Series | C60N |
| Mechanical endurance | 20000 cycles |
| Terminal type | Tunnel Terminal |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Standards/Approvals | CCC, EAC, EN/IEC 60947-2, KC |
| Rated AC Voltage | 240V ac |
| Rated DC Voltage | 72V dc |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Electrical Endurance | 10000 cycles |
Key Features
- It supports an AC voltage rating of 240V and DC voltage rating of 72V.
- Features thermal magnetic tripping mechanism offering reliable overcurrent protection.
- Breaking capacity is rated at 10kA ensuring high fault current interruption capability.
- Mount type is clip-on compatible with DIN rail installations.
- Compact dimensions of 18mm width, 81mm height, and 72mm depth for panel space efficiency.
- IP20 and IP40 protection ratings provide terminal safety against solid foreign objects.
- Endurance values include electrical endurance up to 10,000 cycles and mechanical endurance up to 20,000 cycles.
- Operating temperature range between -30°C and 70°C suits varied industrial environments.
Product Description
Schneider Electric M9F11120 Multi9 C60N miniature circuit breaker is a low voltage, 1-pole protection device designed for industrial and residential electrical installations. Rated at 20A with Type C tripping characteristic, it offers precise and reliable protection against overload and short circuits.
The circuit breaker operates at 240V AC and 72V DC with a breaking capacity of 10kA, ensuring effective interruption of fault currents. Its thermal magnetic trip unit technology responds quickly to overloads and short circuits to safeguard electrical circuits and connected equipment.
This device is designed to clip onto DIN rails, featuring compact dimensions of 18mm width, 81mm height, and 72mm depth, facilitating easy installation in confined control panels. The breaker has an IP20 degree of protection at terminals and also supports IP40 protection, guarding against solid objects and ensuring operator safety.
The electrical endurance of this MCB reaches up to 10,000 cycles with a mechanical endurance of 20,000 cycles, providing long-term reliability in demanding applications. It is engineered to perform within an ambient operating temperature range of -30°C to 70°C and a storage range of -40°C to 80°C, making it suitable for various climates and industrial environments.
Standards compliance includes CCC, EAC, EN/IEC 60947-2, and KC certifications, reflecting adherence to international safety and performance benchmarks. The use of tunnel terminals simplifies wiring, and the product’s light grey RAL7035 color enhances its visibility and standardization inside electrical panels.
This miniature circuit breaker is ideal for original equipment manufacturers, electrical panel builders, and distributors looking for high-quality, dependable circuit protection for applications in industrial, commercial, HVAC, water treatment, and residential power distribution systems.
Supports 1 pole with 20 amp current rating. Type C tripping characteristics for moderate inrush current applications. Rated breaking capacity of 10 kA for high fault current interruptions. Clip-on DIN rail mount for easy installation.
Compact size at 18 mm width for space-efficient panels. Explore more products in the Miniature Circuit Breaker category and Schneider Electric solutions at EnvMart.
Explore more products in our Miniature Circuit Breaker (MCB) category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 20A, suitable for various applications requiring moderate inrush current handling.
It features a breaking capacity of 10kA, ensuring effective interruption of high fault currents.
The circuit breaker operates at a rated AC voltage of 240V and a rated DC voltage of 72V.
It utilizes a thermal magnetic tripping mechanism, which provides reliable protection against overloads and short circuits.
This unit has compact dimensions of 18mm in width, 81mm in height, and 72mm in depth, making it space-efficient for panel installations.
It is a 1-pole circuit breaker, designed for single-phase applications.
It is designed for clip-on mounting, compatible with DIN rail installations for easy setup.
The mechanical endurance of this model is rated at 20,000 cycles, indicating its capability to withstand repeated operations.
It has an IP20 rating for terminal protection and can support an IP40 rating for additional safety against solid objects.
It complies with several standards including CCC, EAC, EN/IEC 60947-2, and KC certifications, ensuring adherence to international safety benchmarks.
The operating temperature range is between -30°C and 70°C, making it suitable for various industrial environments.
It features tunnel terminals, which simplify wiring and enhance connection reliability.
