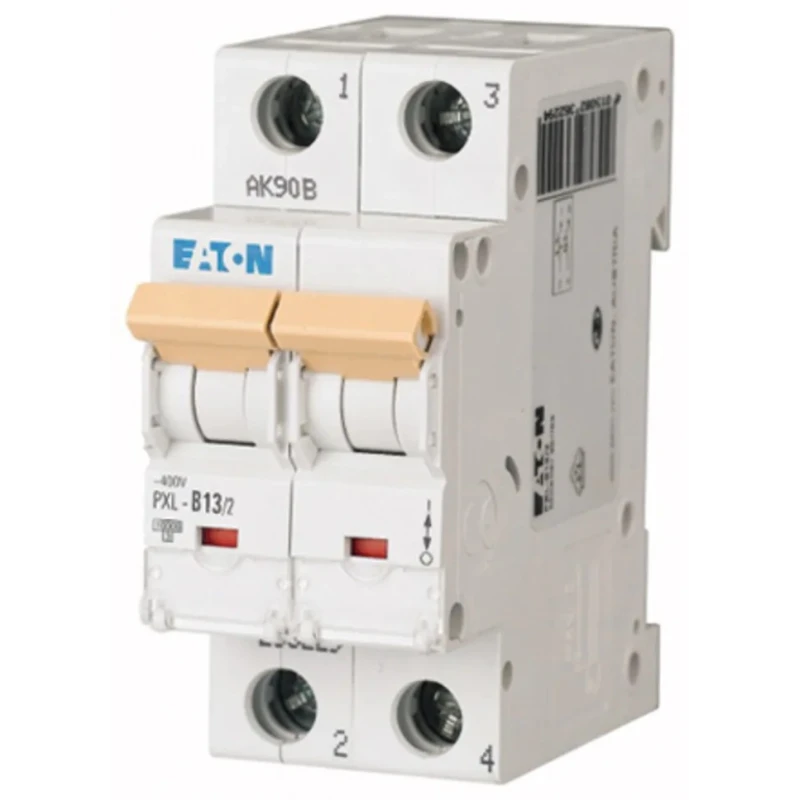

Eaton xPole Miniature Circuit Breaker 2-Pole 13A Type B 400V AC 48V DC 10kA Breaking Capacity 236229 PXL-B13/2

Eaton 236229 PXL-B13/2 Miniature Circuit Breaker is a high-performance, 2-pole, 13A Type B circuit breaker designed for electrical protection in diverse applications including industrial, advanced commercial, and residential environments.

This MCB operates at 400V AC and 48V DC with a breaking capacity of 10kA, providing reliable protection against overloads and short circuits. It features a DIN rail mounting style that saves space and ensures a firm hold within electrical panels.

The breaker is equipped with an electromagnetic tripping mechanism that ensures instantaneous disconnection during fault conditions. Its toggle switch actuator offers easy manual reset after tripping. The device includes high-visibility red and green on/off contact position indicators enhancing operator safety.

Designed with double terminals, this MCB accommodates different cable sizes and can be mounted on busbars, offering installation flexibility. The compact dimensions of 80mm width, 35mm height, and 60mm depth facilitate integration into electrical panels. The IP20 rating guarantees finger-proof and back-of-hand protection, ensuring operator safety during handling and installation.

Compliant with IEC and EN 60898 standards, Eaton’s xPole series provides quality and safety assurance. This breaker incorporates a class III current limiting feature to protect cables and wiring, enhancing system reliability. Its quick-fit action with three locking positions supports easy assembly on top-hat rails per IEC/EN 60715.

Applications for this breaker range from industrial machinery, manufacturing plants, HVAC systems, water treatment facilities to commercial and residential power distribution boards. It is an essential safety device for protecting electrical systems against overload and faults while minimizing downtime by allowing simple and quick resets.

The breaker is rated for 400V AC and 48V DC operation. Features high breaking capacity of 10kA ensuring reliable protection against short circuits. Equipped with a toggle switch reset actuator and electromagnetic tripping mechanism for instant response.

DIN rail mounting allows easy installation and firm support. Indicator shows on/off contact positions with clear red and green colors for safety. Double terminals provide compatibility with various cable sizes and busbars.

Body dimensions are 80mm width, 35mm height, and 60mm depth. IP20 rating offers finger-proof back-of-hand protection. Complies with IEC and EN 60898 standards for circuit breakers. Manufactured in Austria ensuring high-quality construction.
