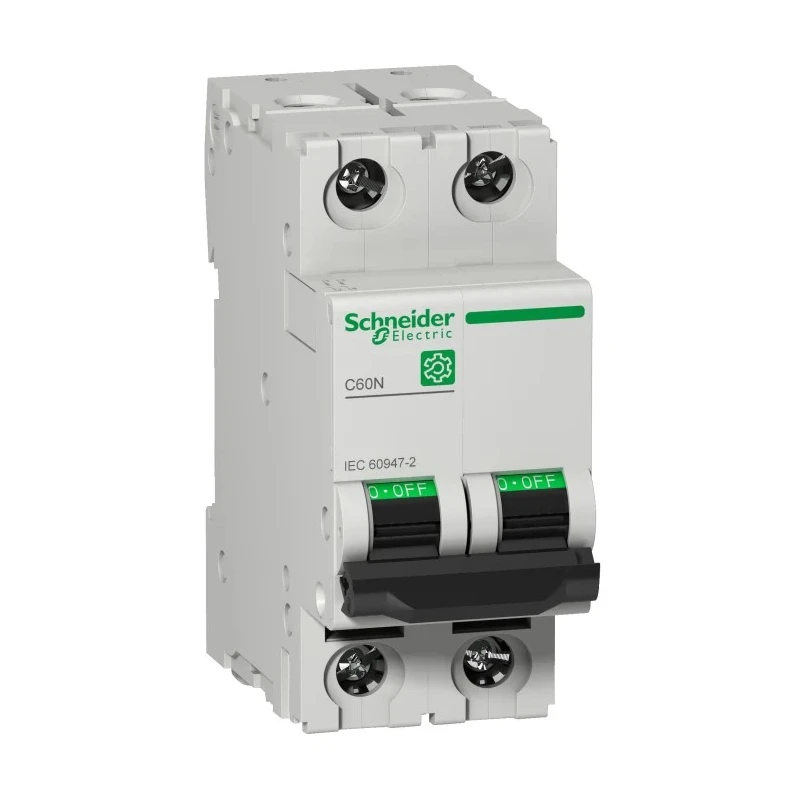

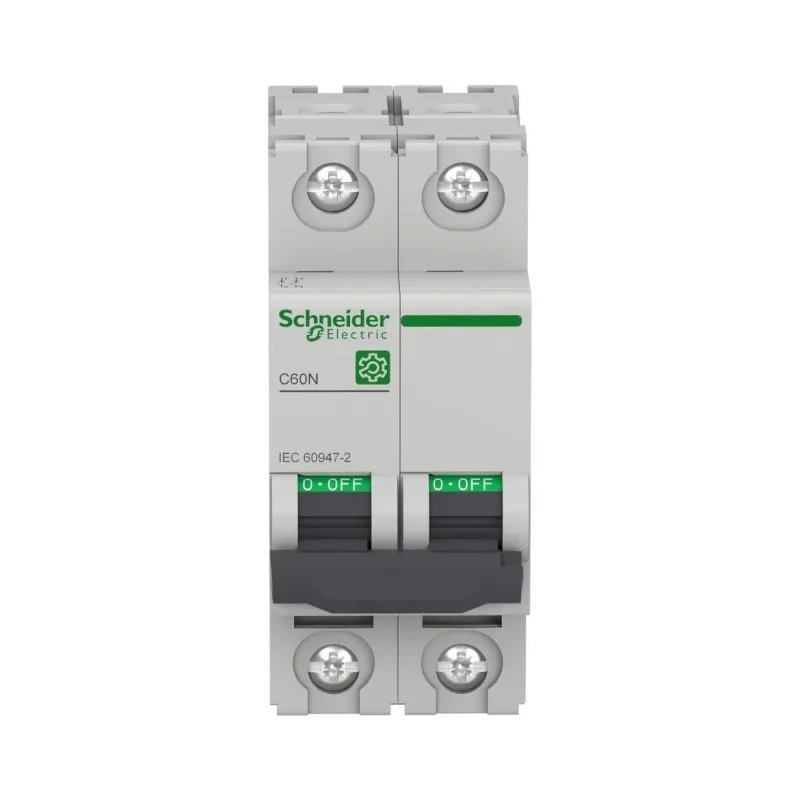

Schneider Electric Multi9 C60N Miniature Circuit Breaker, 2-Pole, 16A, Type C, 125 V dc, 10 kA Breaking Capacity M9F11216

Schneider Electric M9F11216 Multi9 C60N Miniature Circuit Breaker is a high-performance 2-pole electrical protection device rated at 16 amperes with a Type C tripping characteristic. It supports DC voltage operation up to 125 V and delivers a breaking capacity of 10 kA, meeting the rigorous EN/IEC 60947-2 industrial standard and residential standard EN/IEC 60898-1, ensuring robust protection against overload, short circuit, and earth leakage.

This miniature circuit breaker utilizes a thermal magnetic tripping mechanism for precise and fast disconnection during electrical faults. Designed with a clip-on mount, the device facilitates easy installation on DIN rails commonly used in control panels and electrical distribution systems. The breaker features a compact form factor with dimensions of 36 mm in width, 81 mm height, and 72 mm depth, allowing efficient space utilization in electrical enclosures.

With electrical endurance rated at 10,000 cycles and mechanical endurance up to 20,000 cycles, the M9F11216 breaker ensures long-lasting reliability. It maintains operation within a broad temperature range of -30°C to 70°C and offers IP20 protection level at the terminals per IEC/EN 60529 standards, providing safety against solid foreign objects.

The product is suitable for use by original equipment manufacturers (OEMs) and control panel builders, delivering enhanced protection for industrial, commercial, and residential electrical systems. Its light grey color (RAL7035) and standardized design support seamless integration into various electrical applications requiring dependable circuit protection.

Applications span across industrial automation, building infrastructure, manufacturing, and electrical distribution, providing assured electrical system safety and performance. Its compliance with global electrical standards guarantees compatibility and quality assurance.

Features a 10 kA breaking capacity at 415 VAC for enhanced safety. Rated for 125 V DC operation, suitable for DC applications. Thermal magnetic tripping mechanism offers fast and accurate protection. Compact clip-on mount design for easy DIN rail installation.

Complies with EN/IEC 60947-2 and EN/IEC 60898-1 industrial and residential standards. Electrical endurance up to 10,000 cycles and mechanical endurance up to 20,000 cycles. Operates reliably in temperatures from -30°C to 70°C with IP20 protection at terminals.

Dimensions: 36mm width, 81mm height, 72mm depth, optimized for panel mounting. Explore more Schneider Electric circuit protection solutions and related electrical components in the EnvMart catalog.
