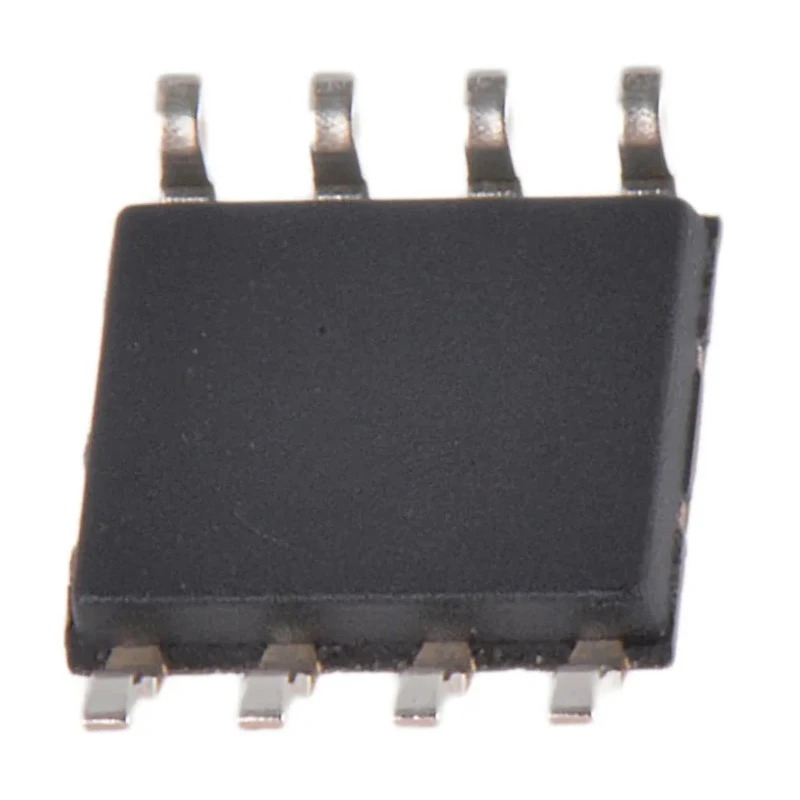

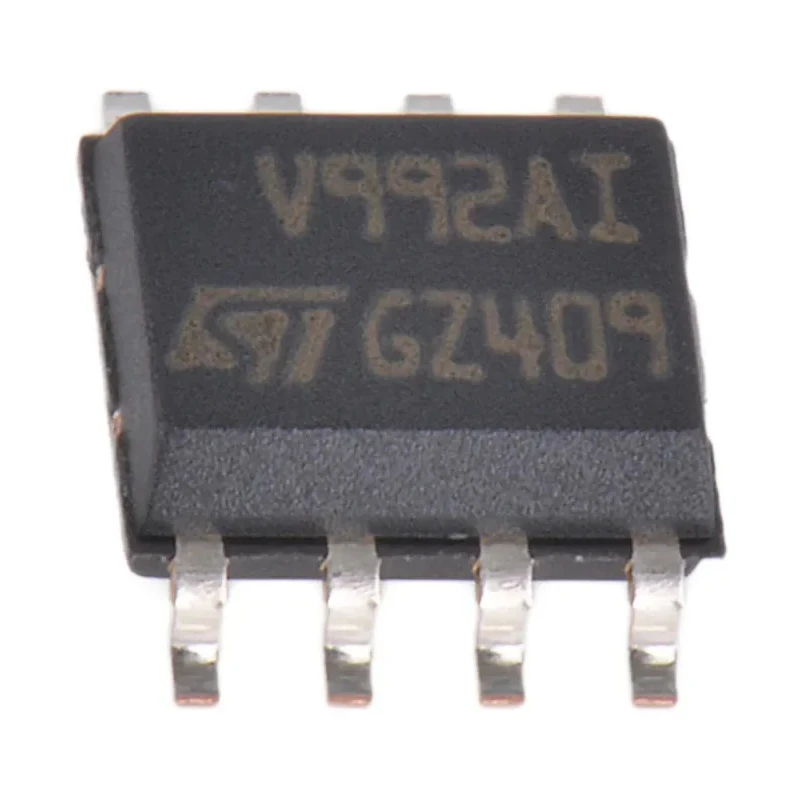

STMicroelectronics Operational Amplifier 20 MHz 8-Pin SOIC Surface Mount Dual Channel 2.5-5.5V TSV992AIDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.25mm |
| Length | 5mm |
| Model | TSV992AIDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TSV992A |
| Output Current | 16mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 795-9091PBrand: STMicroelectronicsManufacturers Part No.: TSV992AIDT |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| GBP - Gain Bandwidth Product | 20MHz |
| Input Bias Current | 100 pA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 10V/μs |
| Low input offset voltage | 1.5 mV max. (A grade) |
| High output current | 35 mA |
| ESD high tolerance | 5 kV |
Key Features
- Built for low power consumption with 820 μA typical current.
- Wide supply voltage range from 2.5 V to 5.5 V.
- Low input bias current of 100 pA and input offset voltage of 3 mV.
- High slew rate of 10 V/μs supports fast signal processing.
- Output current capability up to 16 mA with a high output of 35 mA max.
- AEC-Q100 automotive qualified for reliable automotive use.
- Operating temperature range from -40°C to 125°C suits harsh environments.
- Compact dimensions 5 mm length, 4 mm width, and 1.25 mm height for PCB space efficiency.
Product Description
STMicroelectronics TSV992AIDT operational amplifier is a high-performance dual channel device featuring a 20 MHz gain bandwidth product, designed for low power operation between 2.5 V and 5.5 V supply voltages. Its 8-pin SOIC surface mount package ensures easy integration on modern PCB designs. The device is engineered for industrial, automotive, and general electronics applications where precise amplification and low noise are critical.
With a low input bias current of 100 pA and input offset voltage of 3 mV, the TSV992AIDT enhances signal accuracy in sensitive circuits. The 10 V/μs slew rate allows rapid response to changing input signals, making it suitable for fast analog signal processing tasks.
This operational amplifier can deliver output currents up to 16 mA typical and 35 mA peak, ensuring robust drive capacity for downstream components. It is AEC-Q100 qualified, confirming its suitability in automotive electronics requiring high reliability and thermal endurance from -40°C to 125°C operating temperature.
The compact device footprint of 5 mm length, 4 mm width, and 1.25 mm height optimizes PCB real estate usage. It is stable for gains of at least 4 or less than or equal to -3, supporting diverse amplifier configurations.
Additional ruggedness is provided by high ESD protection rating of 5 kV, protecting against electrostatic discharge events during manufacturing and operation. Low power consumption with typical 820 μA current draw. Dual channel operational amplifier functionality.
Surface mount SOIC package for automated assembly. Wide supply voltage and operating temperature ranges for versatile use. Automotive industry qualification for critical applications.
This operational amplifier from STMicroelectronics is an optimal choice for electronics engineers seeking precision, reliability, and efficiency in signal amplification for automotive, industrial, and consumer electronics sectors.
Explore more Operational Amplifiers and reliable semiconductor solutions in the Semiconductor category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 20 MHz, allowing for effective signal amplification in various applications.
It operates within a supply voltage range of 2.5 V to 5.5 V, making it versatile for different circuit designs.
This operational amplifier can deliver a typical output current of 16 mA and a maximum output current of 35 mA.
The dimensions of this model are 5 mm in length, 4 mm in width, and 1.25 mm in height, which helps in optimizing PCB space.
It can operate within a temperature range from -40°C to 125°C, suitable for harsh environments.
The input bias current for this operational amplifier is 100 pA, which enhances signal accuracy in sensitive applications.
The slew rate of the TSV992AIDT is 10 V/μs, allowing for rapid response to changing input signals.
It comes in an 8-pin SOIC surface mount package, facilitating easy integration into modern PCB designs.
Yes, it is AEC-Q100 qualified, confirming its reliability for automotive applications.
The input offset voltage is 3 mV, which is critical for maintaining signal integrity in precision applications.
This operational amplifier is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
It is designed for industrial, automotive, and general electronics applications where precise amplification is required.
