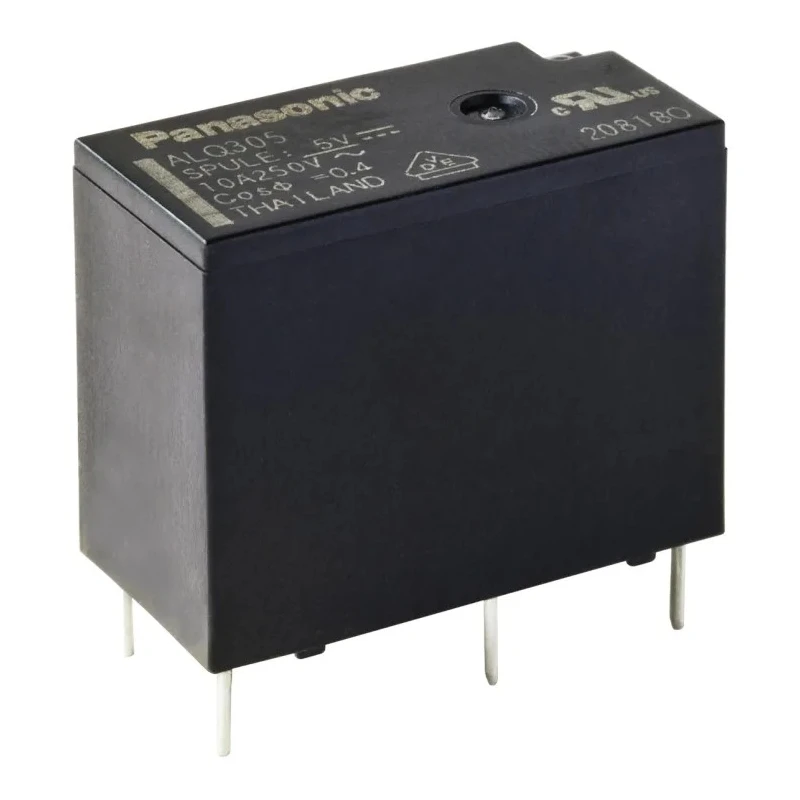

Panasonic Power Relay PCB Mount SPDT 12V DC Coil, 10A Switching Current ALQ1F12

Panasonic ALQ1F12 is a high-quality power relay designed for PCB mounting with a 12V DC coil voltage and a 10A switching current capacity. This SPDT (Single Pole Double Throw) relay incorporates silver alloy contacts to ensure reliable electrical performance with minimal contact resistance, making it ideal for industrial and commercial automation.

The compact size with dimensions 20mm (length) x 10mm (width) x 15.6mm (height) allows easy integration into various circuit boards. It operates efficiently with a coil power of only 400mW and a resistance of 360Ω. The relay’s robust design supports a wide ambient temperature range from -40°C up to 85°C, enabling dependable operation in extreme environmental conditions.

This relay is built to withstand high surge voltages up to 8000V and breakdown voltage of 4000V, ensuring long service life and protection against electrical stress. It supports switching AC voltages up to 250V and DC voltages up to 30V, with a switching power capacity of 500VA. The contact configuration SPDT adds versatility for multiple switching scenarios.

Certified under several international standards such as CSA, cULus, UL, VDE, and CQC, the ALQ1F12 relay meets stringent quality and safety requirements. Its applications span household appliances like refrigerators, cooking ovens, and washing machines, as well as industrial equipment including motor control, air conditioners, and robotic systems.

Compact size suitable for PCB mounting with 20mm length, 15.6mm height, and 10mm width. Silver alloy contact material ensuring low contact resistance of 100mΩ and high durability. Wide ambient operating temperature range from -40°C to 85°C enables use in harsh environments.

High surge voltage resistance of 8000V and breakdown voltage of 4000V for robust performance. SPDT contact configuration provides versatile switching capabilities in circuits. Low coil power consumption of 400mW with coil resistance of 360Ω for energy efficiency.

Switching capacity up to 500VA, switching AC voltage up to 250V and DC voltage up to 30V. Meets multiple international approvals including CSA, cULus, UL, VDE, and CQC standards. Ideal for applications such as appliances, industrial equipment, motor control, and robotics.
