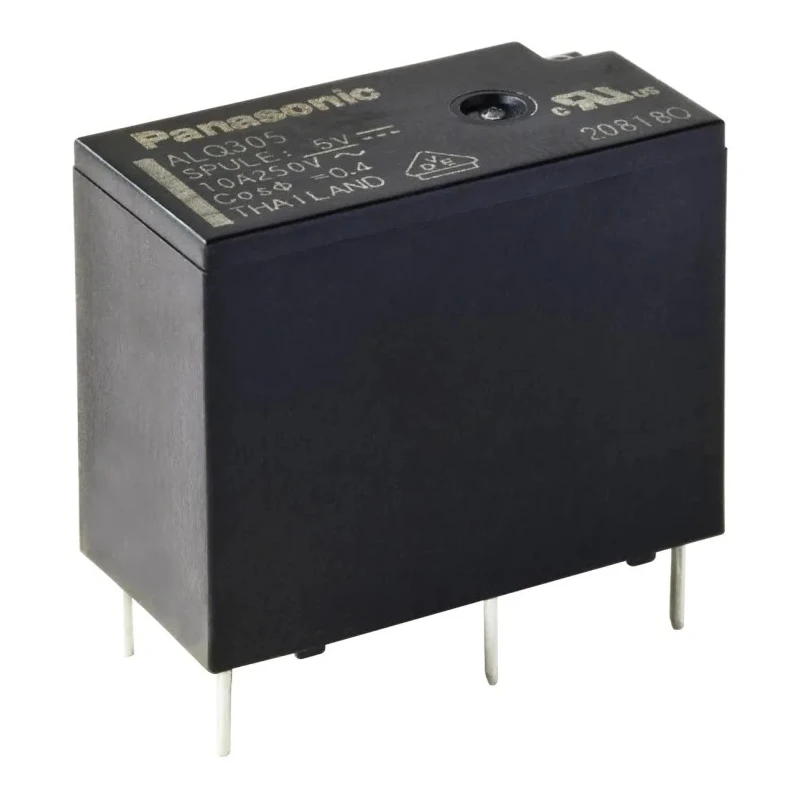

Panasonic PCB Power Relay 5V DC Coil 10A Switching Current SPDT ALQ105
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 15.6mm |
| Length | 20mm |
| Model | ALQ105 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | ALQ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Ambient Temperature | - 40°C to +85°C |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CQC, CSA, VDE, cUL, cULus, UL |
| Coil Resistance | 62.5Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 400mW |
| High surge voltage | 8000 V |
| High breakdown voltage | 4000 V |
Key Features
- Compact and robust design ideal for industrial and automation use.
- Coil voltage of 5 volts DC ensures efficient operation in PCB mounting.
- Maximum switching current of 10 amperes with silver alloy contacts for reliability.
- Operates reliably between -40°C and 85°C ambient temperatures.
- High surge voltage rating of 8000 volts and breakdown voltage of 4000 volts.
- Low contact resistance of 100 milliohms for minimal power loss.
- PCB pin terminal type for secure mounting and easy integration.
- Suitable for diverse applications including appliances, HVAC, robotics, and power supplies.
Product Description
Panasonic ALQ105 is a high-reliability PCB power relay designed for versatile industrial and automation applications. Featuring a 5V DC coil, it supports a maximum switching current of 10A through an SPDT (Single Pole Double Throw) contact configuration, making it suitable for controlling loads up to 500VA switching power.
This compact relay measures 20mm in length, 10mm in width, and 15.6mm in height, fitting densely packed PCB assemblies comfortably. The construction includes silver alloy contacts and ensures low contact resistance of 100 milliohms, reducing energy losses and improving durability.
Operating temperature range spans from -40°C to +85°C, ensuring stable performance in harsh environments. It offers high surge voltage immunity at 8000 volts and high breakdown voltage of 4000 volts, further enhancing reliability under transient electrical conditions.
Mount type is PCB with PCB pin terminals to facilitate easy and secure mounting on printed circuit boards. Coil resistance of 62.5 ohms and coil power of 400 milliwatts contribute to efficient coil energizing without excess power consumption.
The ALQ105 relay series is widely applicable in appliances such as refrigerators, cooking ovens, washing machines, air conditioners, as well as in motor control systems, robotics, and power supply units. It complies with multiple safety and quality standards, including CQC, CSA, VDE, cUL, cULus, and UL certifications.
Country of origin is Thailand, ensuring global manufacturing standards and quality control. Compact and robust design ideal for industrial and automation use. Coil voltage of 5 volts DC ensures efficient operation in PCB mounting.
Maximum switching current of 10 amperes with silver alloy contacts for reliability. Operates reliably between -40°C and 85°C ambient temperatures. High surge voltage rating of 8000 volts and breakdown voltage of 4000 volts.
Low contact resistance of 100 milliohms for minimal power loss. PCB pin terminal type for secure mounting and easy integration. Dimensions: Length 20mm, Width 10mm, Height 15.6mm, making it compact for space-saving designs.
Suitable for diverse applications including appliances, HVAC, robotics, and power supplies. Explore our extensive range of Panasonic Power Relays and other industrial-grade relays at EnvMart for reliable control solutions in electronic and electrical systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 10 amperes.
The coil voltage of the Panasonic ALQ105 is 5 volts DC.
This model measures 20mm in length, 10mm in width, and 15.6mm in height.
The contact configuration of this relay is SPDT (Single Pole Double Throw).
The operating temperature range for the ALQ105 is -40°C to +85°C.
The contact resistance of this relay is 100 milliohms.
This relay uses PCB pin terminals for secure mounting.
The coil power consumption of the ALQ105 is 400 milliwatts.
The high surge voltage rating for this relay is 8000 volts.
The ALQ105 complies with multiple standards including CQC, CSA, VDE, cUL, cULus, and UL.
The contacts in this relay are made of silver alloy.
The ALQ105 is suitable for applications including appliances, HVAC, robotics, and power supplies.
