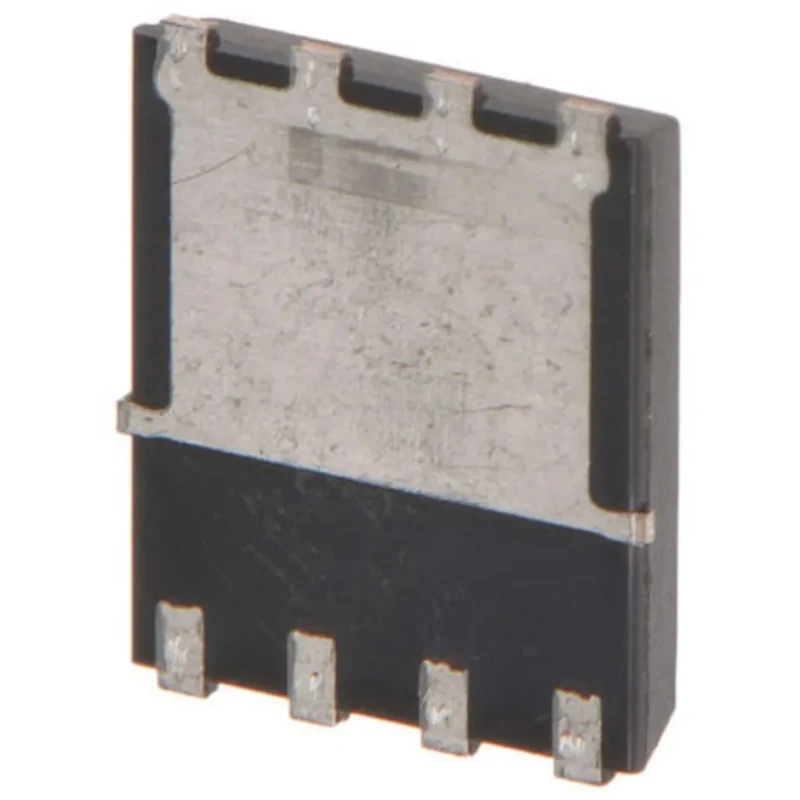

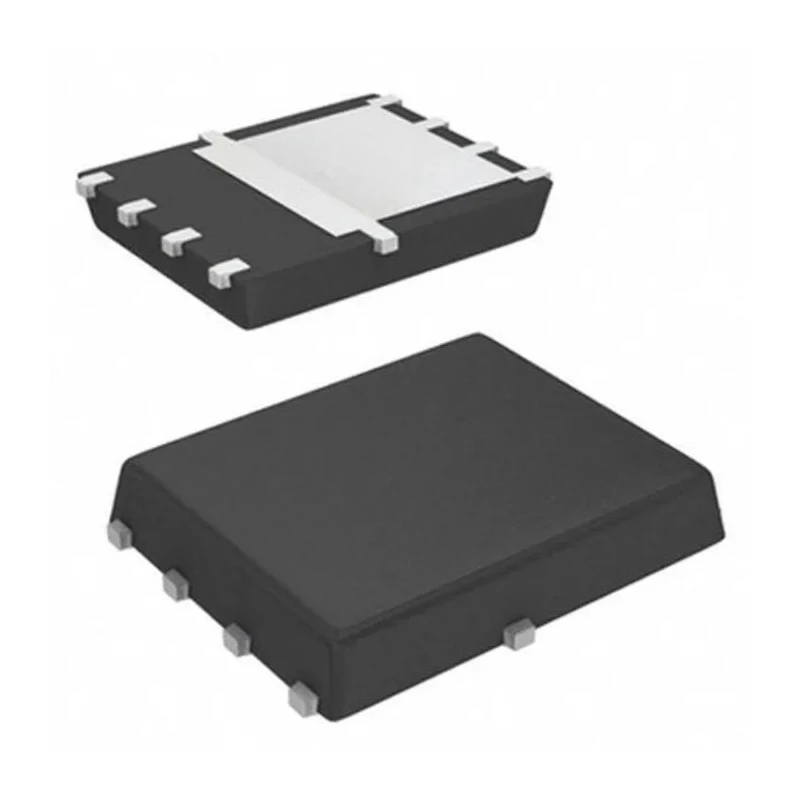

Infineon HEXFET N-Channel MOSFET 44 A 150 V Enhancement Mode 8-Pin PQFN IRFH5015TRPBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 850μm |
| Length | 6mm |
| Model | IRFH5015TRPBF |
| Width | 5mm |
| Mount Type | Surface |
| Series | HEXFET |
| Maximum Operating Temperature | 150°C |
| Package Type | PQFN |
| Minimum Operating Temperature | -55°C |
| Pin Count | 8 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 44A |
| Maximum Drain Source Voltage Vds | 150V |
| Maximum Drain Source Resistance Rds | 31mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 156W |
| Typical Gate Charge Qg @ Vgs | 36nC |
| Maximum Gate Source Voltage Vgs | -20, +20V |
| Forward Voltage Vf | 1.3V |
Key Features
- Supports a maximum continuous drain current of 44 amperes.
- Maximum drain-source voltage rating of 150 volts for robust performance.
- Low on-state resistance of 31 milliohms ensures efficient conduction.
- Surface mount package type in PQFN form factor with 8 pins.
- Designed for enhancement mode operation with typical gate charge of 36 nanocoulombs.
- Maximum power dissipation capacity of 156 watts for high-power applications.
- Wide operating temperature range from -55°C to 150°C for reliability.
- Forward voltage drop of 1.3 volts minimizes losses during switching.
Product Description
Infineon IRFH5015TRPBF is a HEXFET N-Channel Power MOSFET designed for high efficiency and reliability in power switching applications. This MOSFET is rated for a maximum continuous drain current of 44 A and a drain-source voltage of 150 V, making it suitable for demanding industrial, automotive, and electronic systems.
Encapsulated in an 8-pin PQFN surface mount package, the device combines low conduction losses with excellent thermal performance, supporting a power dissipation up to 156 W. The enhancement mode channel and low on-resistance of 31 milliohms significantly reduce power loss, enhancing overall system efficiency.
The device operates reliably across a wide temperature range from -55°C to 150°C, making it suitable for harsh environments. The gate charge specification of 36 nC allows fast switching speeds, and the gate-source voltage tolerates ±20 V, providing robust control margins.
Typical applications for the IRFH5015TRPBF include power management circuits, DC-DC converters, motor drivers, and load switches in industrial automation, HVAC systems, automotive electronics, and consumer electronic devices requiring high current and voltage ratings.
The compact 6 mm by 5 mm footprint with a height of only 850 micrometers allows for space-saving PCB layouts optimized for thermal management. Infineon's HEXFET technology ensures optimized conduction and switching efficiencies to meet modern power design needs.
Supports a maximum continuous drain current of 44 amperes. Maximum drain-source voltage rating of 150 volts for robust performance. Low on-state resistance of 31 milliohms ensures efficient conduction. Surface mount package type in PQFN form factor with 8 pins.
Designed for enhancement mode operation with typical gate charge of 36 nanocoulombs. Maximum power dissipation capacity of 156 watts for high-power applications. Wide operating temperature range from -55°C to 150°C for reliability.
Forward voltage drop of 1.3 volts minimizes losses during switching. Gate-source voltage max range from -20 V to +20 V for flexible control. Compact dimensions: Length 6 mm, Width 5 mm, Height 850 micrometers.
Choose Infineon HEXFET MOSFETs for reliable power switching and high efficiency in industrial, automotive, and consumer electronic designs. Explore EnvMart's comprehensive catalog for related semiconductor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 44 amperes.
It has a maximum drain-source voltage rating of 150 volts.
The on-state resistance is 31 milliohms, which ensures efficient conduction.
This MOSFET comes in an 8-pin PQFN surface mount package type.
The typical gate charge is 36 nanocoulombs.
The maximum power dissipation capacity is 156 watts, suitable for high-power applications.
It operates reliably across a wide temperature range from -55°C to 150°C.
The forward voltage drop is 1.3 volts, which minimizes losses during switching.
The dimensions are 6 mm in length, 5 mm in width, and 850 micrometers in height.
The maximum gate-source voltage tolerates -20 V to +20 V, providing flexible control margins.
It is suitable for applications such as power management circuits, DC-DC converters, motor drivers, and load switches in various systems.
This model utilizes an N-channel type for enhancement mode operation.
