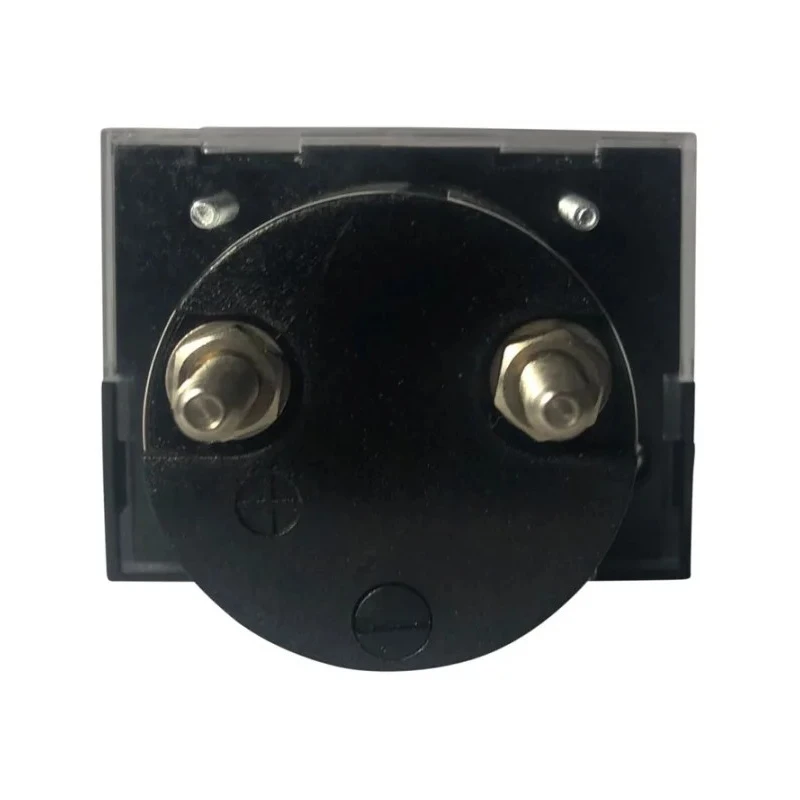

RS Pro Analogue Panel Ammeter 50 A DC, 57 mm x 44 mm, ±1.5 % High Torque Pivot and Jewel Moving Coil and Moving Iron 186-2537

RS Pro 186-2537 Analogue Panel Ammeter is a precision instrument designed for DC current measurement up to 50 A, with a compact panel cutout of 57 mm by 44 mm. Its ±1.5% accuracy and high torque pivot and jewel moving coil and moving iron movement ensure reliable and precise readings in demanding industrial and commercial applications.

The instrument operates efficiently within a temperature range of 0°C to 60°C and maintains performance across a relative humidity range of 25% to 80%. This ammeter features a knife-edge type pointer for clear visibility of measurements and includes a rear zero adjuster, allowing fine calibration adjustment for long-term reliability.

The robust polycarbonate casing protects the internal components while the detachable lower fascia plate adds flexibility during installation and maintenance. The meter's maximum operating voltage is 600 V, and it offers excellent integration possibilities in marine, switchgear, distribution systems, control panels, embedded generation, energy management, building management, utility power monitoring, and motor monitoring applications.

Certified for safety and electromagnetic compatibility (EMC), it complies with standards such as VDE 0110-1, DIN 43807, ANSI C39.1, UL3111-1, EN 61010-1, UL 94 V-O, IS 1248, IEC 61010-1, IS 9249, 93/68/EEC, BS EN 61326, IEC 51, ISO 20653:2006-08, and others, reflecting high quality and reliability.

Offers a measurement range from 0 A to 50 A DC. Features a high torque pivot and jewel moving coil and moving iron movement for precise readings. Compact cutout size of 57 mm height by 44 mm width suitable for panel mounting.

Operating temperature range from 0°C to 60°C ensures durability in industrial environments. Equipped with a knife-edge type pointer for easy visibility and accuracy. Relative humidity tolerance from 25% to 80% guarantees operational reliability.

Includes a rear zero adjuster to maintain accuracy over time. Enclosed in polycarbonate cover providing robust protection. Complies with multiple industrial and safety standards including VDE, UL, IEC, ISO, and CE certifications.

This ammeter is ideally suited for applications in industrial automation systems, electrical panels, marine environments, power distribution, and control systems where accurate DC current monitoring is crucial. Explore the RS Pro range for reliable and durable panel meters and automation control gear solutions.
