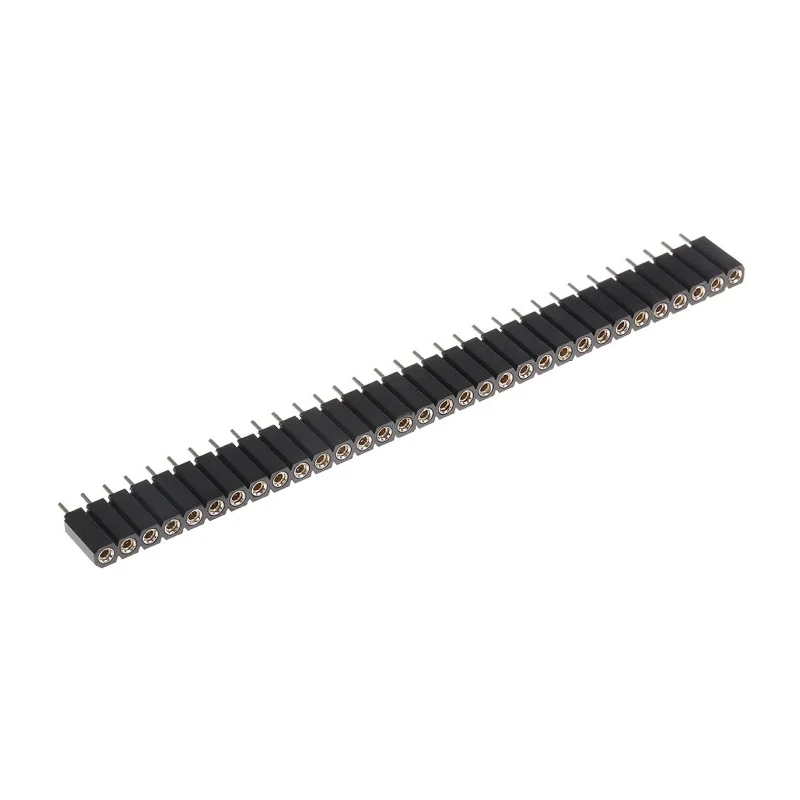

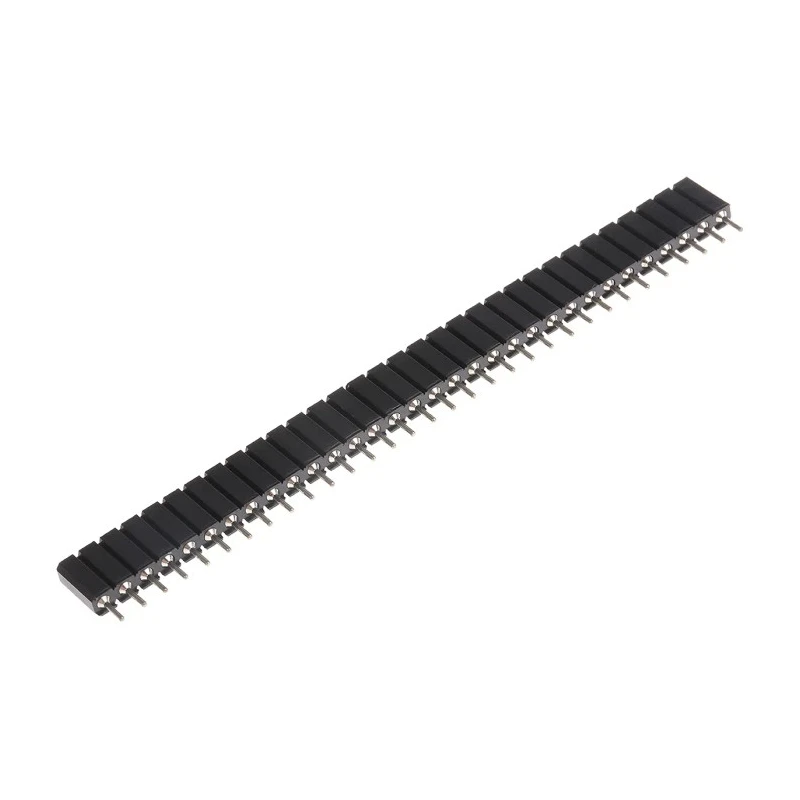

ASSMANN WSW AW 127 Series Straight Through Hole PCB Socket, 32-Contact, 1 Row, 2.54 mm Pitch, Solder Terminal AW 127-32/Z-HP
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 12A |
| Model | AW 127-32/Z-HP |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Bronze |
| Series | AW 127 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | UL 94 V-0 |
| Contact Plating | Tin |
| Number of Contacts | 32 |
| Contact Gender | Female |
Key Features
- High-quality solder termination ensures secure mounting.
- Constructed with durable Polybutylene Terephthalate housing material for thermal resistance.
- Contact material is bronze with tin plating for excellent conductivity and corrosion resistance.
- Rated for a current capacity of 12 A and voltage up to 100 V.
- Operational temperature range from -40°C to 105°C suitable for industrial environments.
- Single-row layout facilitates straightforward circuit board integration.
- Certified to UL 94 V-0 standards ensuring flame retardancy.
- Designed with female contact gender for PCB connection.
Product Description
ASSMANN WSW AW 127-32/Z-HP is a high-performance Straight Through Hole PCB Socket featuring 32 contacts arranged in a single row with a 2.54 mm pitch, optimized for board-to-board connections in electronic assemblies. This socket utilizes solder termination, enabling reliable and sturdy attachment to circuit boards, enhancing connection integrity in industrial and manufacturing setups.
The housing is made of Polybutylene Terephthalate, a material known for its mechanical strength and high thermal tolerance, allowing the socket to operate safely between -40°C and 105°C. The contact pins are fabricated from bronze and plated with tin to provide excellent electrical conductivity and protection against corrosion, ensuring long operational life in demanding environments.
This PCB socket supports a current rating of 12 A and withstands voltages up to 100 V, making it suitable for a variety of electrical and electronic applications including industrial equipment, manufacturing lines, and testing apparatus. Its straight orientation and single-row design simplify installation and maintenance.
The product conforms to UL 94 V-0 standards for flame retardancy, guaranteeing safe use in electronic components. Female contact gender provides compatibility with standard male PCB pins, facilitating straightforward integration.
This component, manufactured in China, is essential for electronics assemblies requiring dependable interconnections and high durability. It is ideal for applications in electronics manufacturing, industrial controls, and laboratory equipment where performance and reliability are paramount.
High-quality solder termination ensures secure mounting. Durable Polybutylene Terephthalate housing material offers thermal resistance. Bronze contacts with tin plating provide excellent conductivity. Supports 12 A current and 100 V voltage for versatile use.
Wide operating temperature range from -40°C to 105°C. Single-row, 32-contact design with 2.54 mm pitch. Meets UL 94 V-0 flame retardant standards. Female contact gender for PCB integration. Explore more high-quality PCB Sockets and electronic components at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current capacity of this PCB socket is 12 A.
This model is rated for a voltage of up to 100 V.
The housing is made of Polybutylene Terephthalate, while the contact pins are bronze with tin plating for conductivity and corrosion resistance.
It features a 2.54 mm pitch with 32 contacts arranged in a single row.
The operational temperature range for this socket is from -40°C to 105°C.
This model utilizes solder termination for secure mounting to circuit boards.
It is certified to UL 94 V-0 standards, ensuring flame retardancy.
This PCB socket has a female contact gender, allowing compatibility with standard male PCB pins.
It is designed for through hole mounting, facilitating straightforward installation.
It is suitable for various applications including industrial equipment, manufacturing lines, and testing apparatus.
This model has a straight orientation, which simplifies the integration into circuit boards.
This product is manufactured in China.
