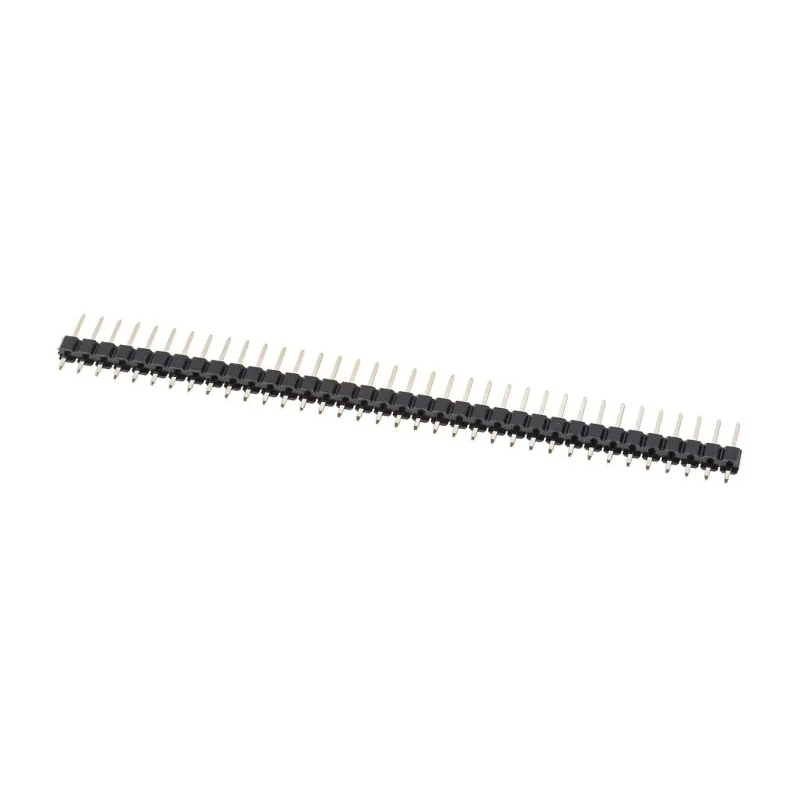

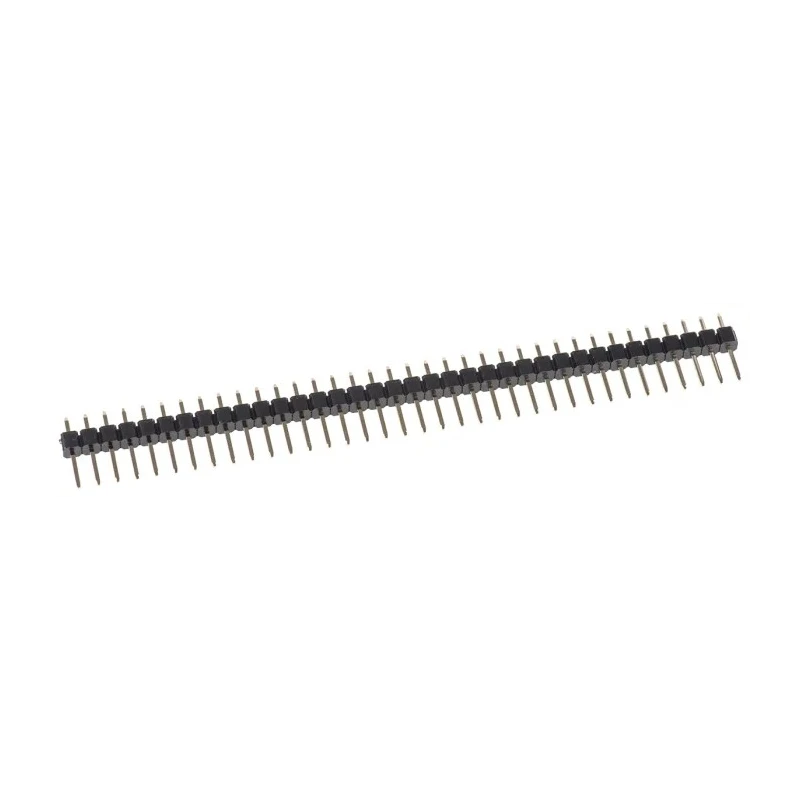

ASSMANN WSW AW140 Series Straight Through Hole Pin Header, 36 Contact, 2.54 mm Pitch, 1 Row, Unshrouded AW140
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 3A |
| Model | AW140 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AW140 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 36 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 5.66mm |
Key Features
- Offers a 2.54 mm pitch for precise PCB mounting.
- 36 male contacts provide secure electrical connection.
- Made with brass contact material plated with gold for durability.
- Housing made from Polybutylene Terephthalate ensuring insulation and mechanical strength.
- Designed for through hole mounting enhancing solder joint reliability.
- Rated for 3A current and 250V voltage operation for various electronic applications.
- Operating temperature range from -40°C to 105°C for wide industrial use.
- Unshrouded, straight orientation suitable for board-to-board connector system.
Product Description
ASSMANN WSW AW140 Series Straight Through Hole Pin Header AW140 offers a high-quality electronic connector solution with 36 male contacts arranged in a single row with 2.54 mm pitch for precise and reliable PCB board-to-board connections. The unshrouded pin header is constructed with brass contacts plated in gold for enhanced conductivity and corrosion resistance.
The housing is manufactured from robust Polybutylene Terephthalate material, providing excellent insulation and mechanical stability in demanding environments. This through hole mounted pin header supports current up to 3A and operates safely at voltages up to 250V, making it suitable for a wide variety of industrial electronics, automation, and communication equipment.
Designed with a temperature range from -40°C to 105°C, it can endure harsh environmental conditions in industrial, manufacturing, and electronic assembly applications. The pin header has a 3 mm solder tail pin length and a 5.66 mm mating pin length, optimizing the effectiveness of solder joints and ensuring secure mating with compatible connectors.
This product is ideal for use in electronic manufacturing and repair, providing a reliable, unshrouded connector option for engineers and technicians working on PCB design and assembly. Its straight orientation and board-to-board connector system compatibility allow versatile integration in multiple device configurations.
Offers a 2.54 mm pitch for precise PCB mounting. 36 male contacts provide secure electrical connection. Made with brass contact material plated with gold for durability. Housing made from Polybutylene Terephthalate ensuring insulation and mechanical strength.
Designed for through hole mounting enhancing solder joint reliability. Rated for 3A current and 250V voltage operation for various electronic applications. Operating temperature range from -40°C to 105°C for wide industrial use.
Pin lengths: 3 mm tail length and 5.66 mm mating length for effective soldering and connection. Unshrouded, straight orientation suitable for board-to-board connector system.
This ASSMANN WSW AW140 pin header assembly supports industrial electronics manufacturing, PCB prototyping, and repair applications. Browse more PCB Headers and connectors on EnvMart for your specific electronics assembly requirements.
