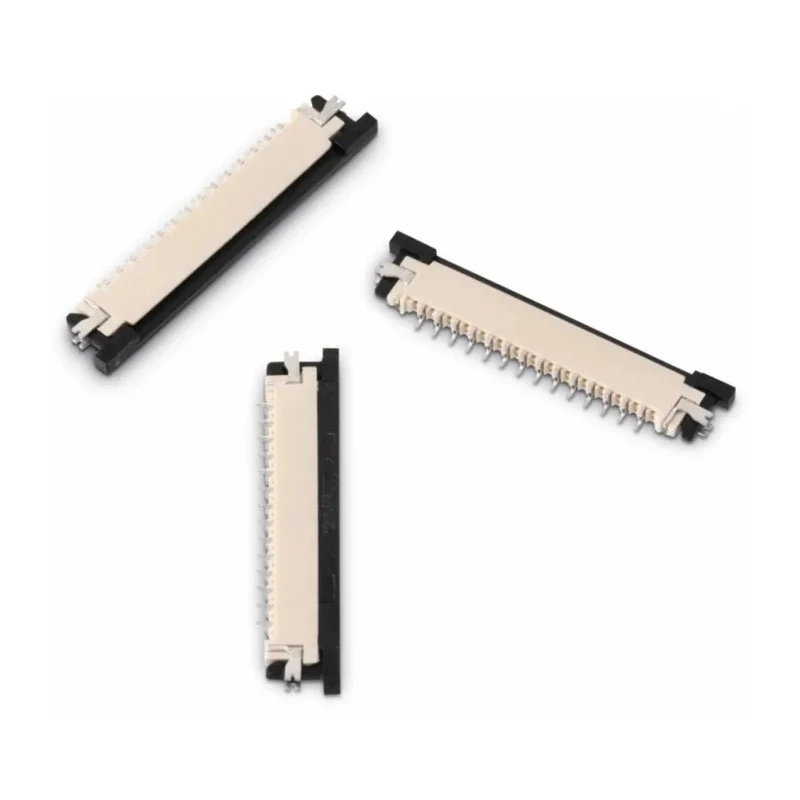

Wurth Elektronik WR-FPC 1 mm Pitch 10 Way Horizontal Female Low Profile ZIF FPC Connector Surface Mount 686110183422

Wurth Elektronik 686110183422 WR-FPC is a 10 way horizontal female FPC connector featuring a 1 mm pitch and surface mount design. This low profile ZIF (Zero Insertion Force) connector provides a height of just 1.2 mm, ideal for compact electronic assemblies requiring reliable, space-saving connections.

The WR-FPC series uses a rotating flip lock actuator that facilitates easy insertion of flat flexible cables (FPC) and provides strong retention ensuring both electrical and mechanical stability. The phosphor bronze contacts are plated with tin over nickel for corrosion resistance and dependable signal integrity.

Its horizontal orientation and surface mount termination type make it suitable for automated PCB assembly lines. The connector supports a maximum current of 800mA and operating voltage of 50V AC. Designed to operate over a temperature range of -25°C to 85°C, the liquid crystal polymer housing offers excellent mechanical strength and thermal stability for demanding environments.

This component includes brass solder tabs that enhance connector retention on the PCB, minimizing mechanical stress during handling and use. Available with top contact positioning, it provides design flexibility for varied electronic layouts.

Common application areas include compact consumer devices such as tablets, PC peripherals, mobile phones, touch panels, and screens. The connector is also suitable for business, industrial, and medical equipment requiring high-density, reliable FPC connections.

10 female contacts with 1 mm pitch ensure precise, high-density interconnection. ZIF flip lock actuator enables easy cable insertion and secure connection. Phosphor bronze contacts with tin over nickel plating resist corrosion and wear.

Surface mount and horizontal orientation improve assembly compatibility. Robust liquid crystal polymer housing ensures durability in tough conditions. Operating temperature range from -25°C to +85°C covers most industrial applications.

Includes solder retention tabs for enhanced PCB mechanical stability. Supports 800mA current and 50V AC voltage ratings for reliable performance. Ideal for miniaturized electronic systems including displays and mobile devices.

Widely used in consumer electronics, industrial, medical, and business sectors. Explore more Wurth Elektronik FPC Connectors and other high-quality electronic components at EnvMart for your next project.
