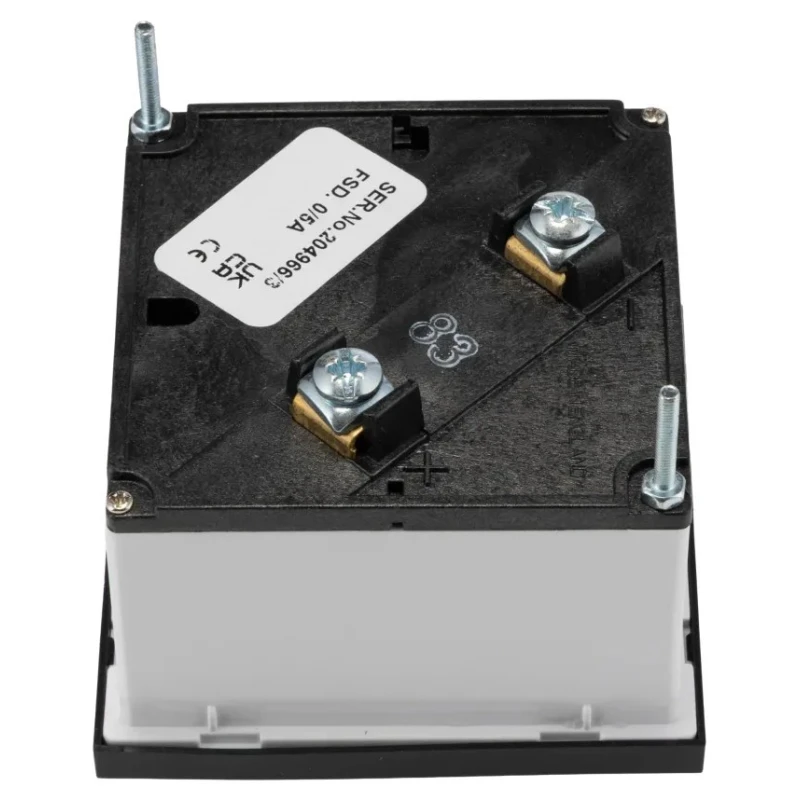

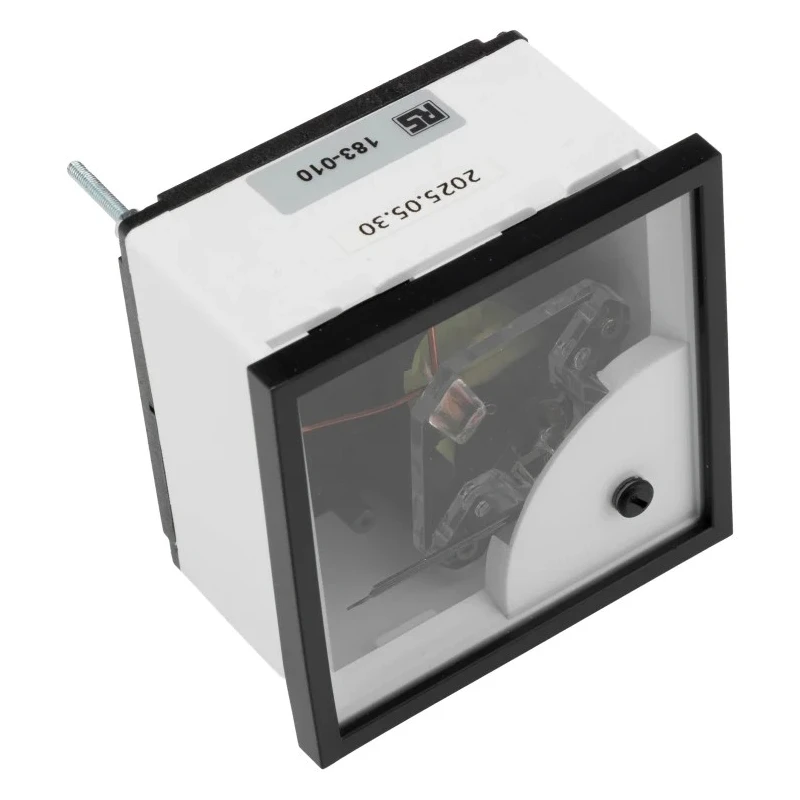

HOBUT Analogue Panel Ammeter AC 72 mm x 72 mm Class 1.5 Moving Iron D72SD

HOBUT D72SD Analogue Panel Ammeter AC with a panel dimension of 72 mm x 72 mm delivers reliable and precise AC current measurement using a moving iron element. Designed for industrial and process control applications, it operates within a temperature range from -25°C to 40°C, ensuring stable performance in various environmental conditions.

The ammeter features a Class 1.5 accuracy rating conforming to standards BS 89, IEC 51, and DIN 43802, guaranteeing measurement precision. The flame retardant case meets UL94V0 compliance, enhancing safety. Intended for DIN mounting with a cutout size of 68 x 68 mm to 92 x 92 mm, it fits standard instrumentation panels.

Its CT operated design supports current transformers with 5A secondaries, suitable for integration into complex control systems. The device is capable of withstanding overloads up to 10 times the full scale deflection for short periods, protecting the meter from damage during transient spikes.

The 90° scale arc and moving iron technology provide clear, easily readable analog output. Supplied with mounting brackets, installation requirements are simplified for industrial setups including manufacturing, automation, and electrical distribution panels.

Accurate current measurement with Class 1.5 meter accuracy. Operating temperature range from -25°C to 40°C for various environments. Durable flame retardant case compliant with UL94V0 standards. Compact panel cutout sizes of 68 x 68 mm and 92 x 92 mm.

Compatible with current transformers featuring 5A secondaries. Overload rating of 10 times full scale deflection for 5 seconds ensures safety. CT operated DIN moving iron ammeter with a 90° scale arc for easy readability.

Includes mounting brackets for simple installation.

This Analogue Panel Ammeter suits industrial automation, electrical panels, and process control environments requiring robust, accurate AC current measurement solutions. Explore similar quality instruments in the EnvMart Automation & Control Gear category.
