HOBUT Analogue Panel Ammeter 100 A AC/DC with UL94V0 Flame Retardant Case PD721MCS1A/2-003

HOBUT PD721MCS1A/2-003 Analogue Panel Ammeter 100 A AC/DC is designed for precise current measurement in electrical automation and control panel applications. This instrument features a horizontal scale and integral scales optimized for AC and DC currents, making it versatile for industrial use.

The device operates within a temperature range of -25°C to 40°C, suitable for diverse ambient conditions. It has a flame retardant case constructed to UL94V0 standards to ensure safety and durability in industrial environments.

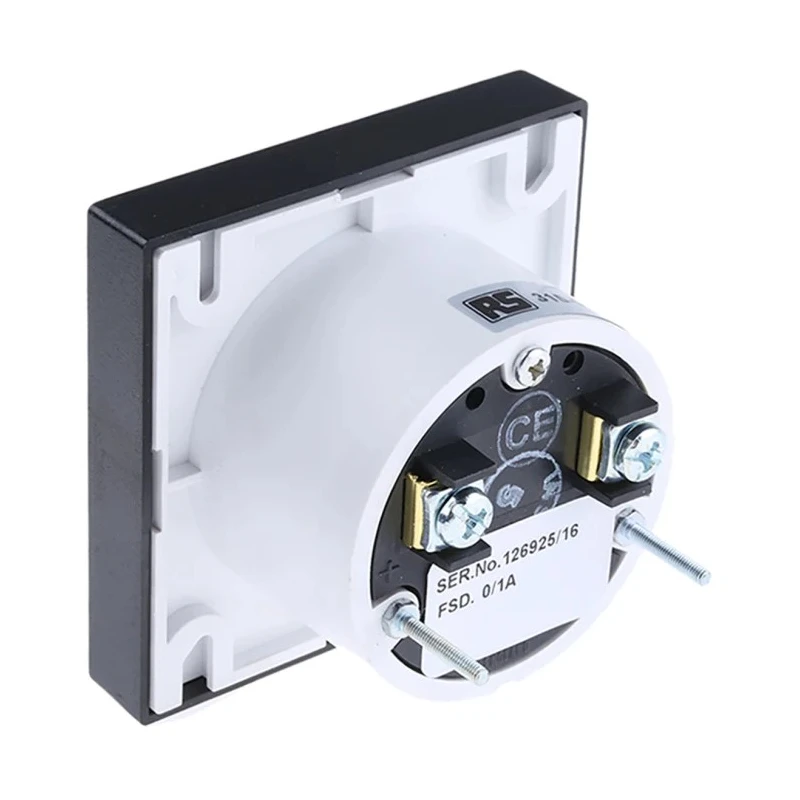

The panel meter includes secure mounting options such as a U-clamp, 4 pin M3 fixing, and an anti-rotation pin. Its compact panel cut-out diameter of 56 mm matches widely used cutter sizes, facilitating easy integration.

The ammeter is calibrated to an accuracy class of 1.5 in accordance with BS89 and IEC51 standards, with a full scale deflection from 0 to 75 mV providing reliable measurement across its range. For currents up to 50 A, the meter is used without a shunt; higher ratings (such as 100 A or 300 A) require appropriate shunts available separately.

Compliance with multiple international standards including BS89, DIN 43700, IEC 51, ES50-2, and UL94 ensure performance and safety for industrial, laboratory, manufacturing, HVAC, and electrical panel applications.

Measures AC/DC currents up to 100 A with high precision. Operating temperature range suits industrial environments. UL94V0 flame retardant casing enhances safety. Multiple mounting methods with anti-rotation feature. 56 mm panel cut-out for easy installation.

Accurate horizontal scale with full scale deflection. This Analogue Panel Ammeter is manufactured in the United Kingdom and is ideal for industrial automation, process control, and electrical measurement tasks. Explore the extensive range of reliable and tested panel meters and automation components available at EnvMart for your industrial and commercial needs.
