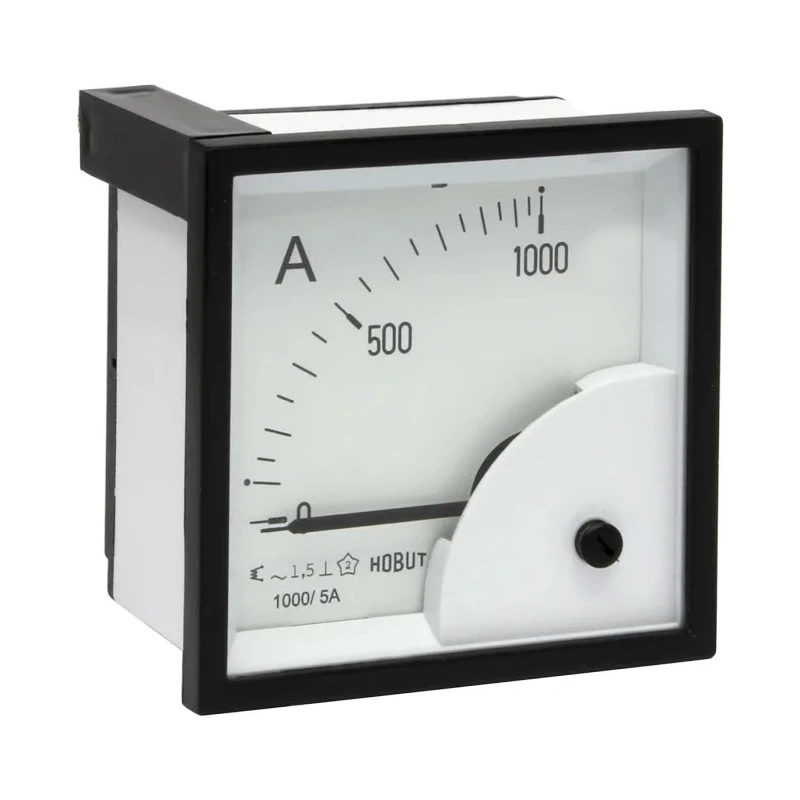

HOBUT Analogue Panel Ammeter AC, Moving Iron, 72 mm x 72 mm, Class 1.5 Accuracy D72SD

HOBUT D72SD analogue panel ammeter AC is a precision instrument designed for accurate alternating current measurement in industrial and automation applications. Featuring a moving iron element and class 1.5 accuracy, it offers reliable performance on a clear 90° scale arc within a compact 72 mm x 72 mm panel cutout size, depth 38.5 mm. The meter is designed to operate within temperatures from -25°C to 40°C, making it suitable for various environmental conditions.

Manufactured according to BS89, IEC 51, DIN 43700, DIN 43802, and with approvals including CE and UL 94V0 flame retardant requirements, this ammeter ensures high safety and quality standards. The flame retardant case enhances operational safety and durability in challenging industrial environments.

This model is CT operated with moving iron technology, compatible with current transformers providing 5A secondary output. The overload capacity withstands up to 10 times full scale for five seconds, protecting the device during transient overcurrent conditions.

The panel cut-out dimensions include options for 68 x 68 mm and 92 x 92 mm, providing flexible mounting options. Mounting brackets are supplied for easy installation, while terminal covers are available separately for enhanced safety and maintenance convenience.

Measures alternating current with moving iron technology for reliable performance. Features 72 mm x 72 mm panel cutout dimensions suitable for standard installations. Offers class 1.5 meter accuracy ensuring precise current readings.

Operating temperature ranges from -25°C to 40°C for versatile use. Manufactured to BS89 and IEC 51 standards, ensuring quality compliance. Compatible with current transformers with 5A secondaries for CT operation. Flame retardant case complies with UL 94V0 safety standards.

Includes mounting brackets for straightforward panel installation. Overload rating up to 10 times full scale for short durations enhances durability.

This ammeter is widely used in industrial automation, process control systems, electrical panel monitoring, and building management systems. Its robust construction and precision measurement make it ideal for laboratory, manufacturing, HVAC control, and electrical distribution panel applications.
