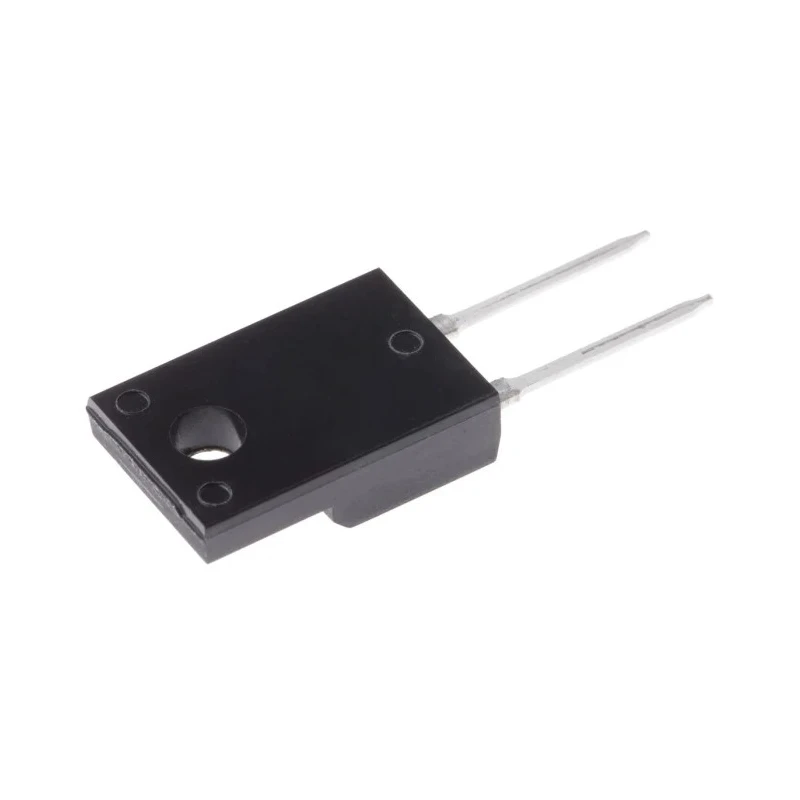

IXYS Diode Switching 2-Pin TO-220 1200 V 10 A DHG10I1200PM

Name: IXYS Diode Switching 2-Pin TO-220 1200 V 10 A DHG10I1200PM
Brand: IXYS
SKU: 138608
Price: 20.22 USD
Availability: InStock



Category Semiconductors Brand IXYS Condition New

Specifications

Country of Origin	India
Brand	IXYS
Height	9.19mm
Length	10.36mm
Model	DHG10I1200PM
Width	4.9mm
Mount Type	Through Hole
Maximum Operating Temperature	150°C
Package Type	TO-220
Minimum Operating Temperature	-55°C
Pin Count	2
Maximum Continuous Forward Current If	10A
Peak Reverse Repetitive Voltage Vrrm	1200V
Diode Configuration	Single
Rectifier Type	Switching
Peak Reverse Current Ir	15μA
Peak Non-Repetitive Forward Surge Current Ifsm	70A
Maximum Forward Voltage Vf	3.56V
Peak Reverse Recovery Time trr	75ns

Key Features

This diode features a maximum continuous forward current of 10 A.
It supports a peak reverse repetitive voltage of 1200 V.
The device has a peak non-repetitive forward surge current of 70 A.
Peak reverse recovery time is 75 ns for fast switching applications.
Operating temperature range is from -55°C to a maximum of 150°C.
The diode configuration is single with a switching rectifier type.
Peak reverse current is low at 15 μA, ideal for efficient rectification.
Designed for industrial and electronic power applications requiring reliable switching diodes.

Product Description

The IXYS DHG10I1200PM is a high-performance switching diode specifically designed for power electronic applications requiring fast switching capabilities and robust voltage and current handling.

This single diode device comes in a TO-220 package with two pins for through-hole mounting, making it suitable for industrial, laboratory, and manufacturing electronics assemblies.

With a maximum continuous forward current rating of 10 A and a peak reverse repetitive voltage of 1200 V, this diode is ideal for rectification and switching tasks in power supplies, inverters, and motor controllers.

The diode features a peak non-repetitive forward surge current of 70 A ensuring durable performance during transient overloads. Rapid switching is facilitated by a peak reverse recovery time of only 75 ns, enhancing efficiency in switching regulators and other high-frequency circuits.

Operating temperatures range from -55°C to 150°C, making this diode appropriate for harsh industrial environments. Its low peak reverse current of 15 μA minimizes leakage and power loss, contributing to efficient power management.

Compact package dimensions of 10.36 mm length, 4.9 mm width, and 9.19 mm height allow for easy integration into standard PCB layouts. This IXYS diode is suited for demanding applications such as power rectification, switching power supplies, and other electronic designs requiring high reliability and endurance.

Set your electronics system up with this reliable switching diode to ensure long-term operational stability and performance. Browse our selected range of Semiconductors at EnvMart for more power management solutions. This diode features a maximum continuous forward current of 10 A.

It supports a peak reverse repetitive voltage of 1200 V. The device has a peak non-repetitive forward surge current of 70 A. Peak reverse recovery time is 75 ns for fast switching applications. Operating temperature range is from -55°C to a maximum of 150°C.

The package dimensions are length: 10.36 mm, width: 4.9 mm, and height: 9.19 mm. The diode configuration is single with a switching rectifier type. Peak reverse current is low at 15 μA, ideal for efficient rectification.

Designed for industrial and electronic power applications requiring reliable switching diodes. Mount type supports through hole soldering for easy integration into PCBs.
