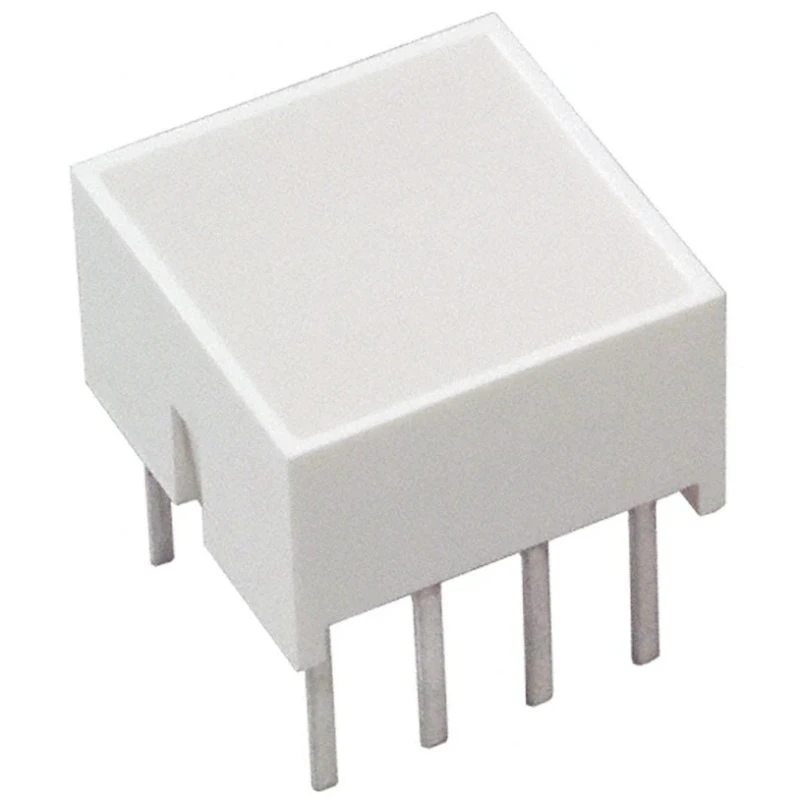

Broadcom Light Bar LED Display Yellow 38mcd 19.5 mm HLMP-2755
Specifications
| Country of Origin | India |
|---|---|
| Display Type | Light Bar |
| Brand | Broadcom |
| Model | HLMP-2755 |
| Mount Type | Through Hole |
| Character height | 19.5mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 1 |
| External Width | 8.9mm |
| External Depth | 10.2mm |
| External Height | 6.2mm |
| Luminous Intensity | 38mcd |
| Standards/Approvals | Lead (Pb) Free, RoHS |
| LED Colour | Yellow |
| Dominant Wavelength | 585nm |
| Colour of Face | White |
| Forward Voltage | 2.1V |
| Forward Current | 20mA |
| Character Width | 8.89mm |
Key Features
- Light Bar display type with a single segment for straightforward status indication.
- Yellow LED with dominant wavelength of 585nm ensures bright and clear visibility.
- Through Hole mount type designed for secure PCB installation.
- Compact dimensions with 8.9mm width, 6.2mm height, and 10.2mm depth for versatile application.
- Wide operating temperature range from -40°C to 85°C suitable for diverse industrial environments.
- Forward voltage of 2.1V and forward current of 20mA allow efficient electrical performance.
- White-colored face ensures enhanced contrast and readability.
- Lead (Pb) Free and RoHS compliant, meeting environmental safety standards.
Product Description
Broadcom HLMP-2755 Light Bar LED Display Yellow features a bright yellow LED with a luminous intensity of 38mcd and character height of 19.5 mm, suitable for use in electronic indicators and display modules within industrial, telecommunications, and control panel applications.
This LED display is designed as a single-segment light bar, delivering uniform light emission with a dominant wavelength of 585nm. It is mounted through the hole on PCBs, ensuring sturdy installation. Its physical dimensions of 8.9 mm (width), 6.2 mm (height), and 10.2 mm (depth) enable integration in compact devices.
The device can operate reliably in temperature environments ranging from -40°C to 85°C, supporting harsh industrial conditions. Electrical characteristics include a forward voltage of 2.1V and a forward current rating of 20mA, compatible with standard LED driving circuits.
The yellow LED display has a white-colored face to provide high contrast and clear visibility. It is environmentally compliant with Lead (Pb) Free construction and RoHS certification, making it suitable for modern electronics manufacturing requirements.
Single segment light bar display for clear visual indication. Bright yellow LED with dominant wavelength of 585nm for optimum visibility. Through Hole mounting for robust PCB fitting. Compact external size to fit tight spaces.
Wide operating temperature range from -40°C to 85°C. Low forward voltage and current for efficient operation. White face color for enhanced contrast. Compliant with environmental standards including RoHS and Lead Free.
This product is ideal for use in electronic displays, telecommunications equipment, status indicators, and bar graph applications in industrial, commercial, and instrumentation environments. Its durability, visibility, and environmental compliance make it a reliable component in demanding applications.
Explore more such high-quality LED Display solutions from Broadcom at EnvMart to meet your precision electronic component needs.
