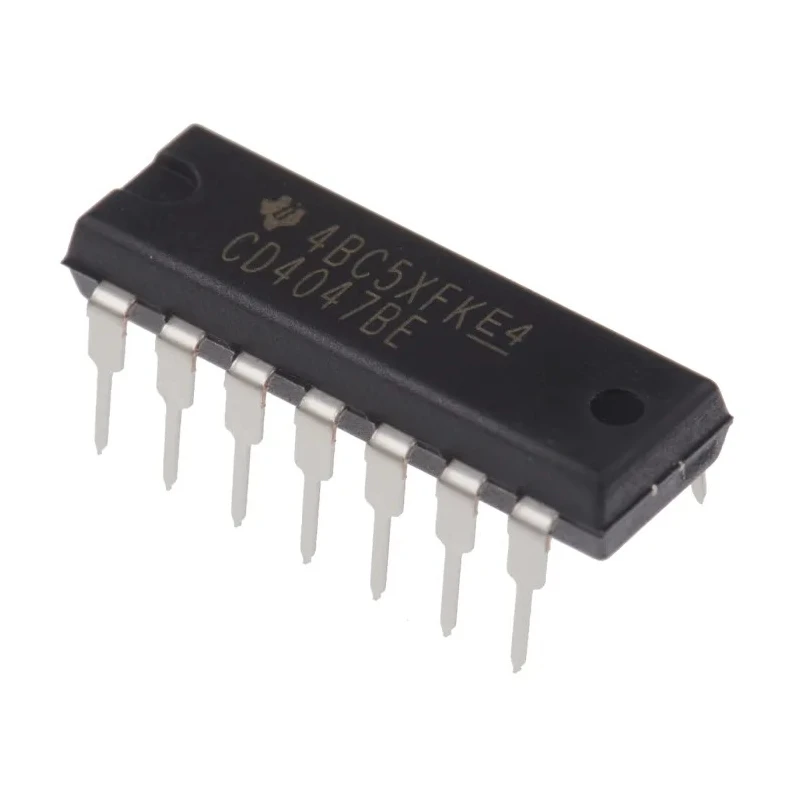

Texas Instruments Monostable Multivibrator Logic IC CMOS 4000 Series 1 Element 14-Pin PDIP CD4047BE

Texas Instruments CD4047BE is a monostable multivibrator logic IC in the CMOS 4000 series, designed for precision timing and pulse generation in electronic circuits. It features a single monostable element housed in a 14-pin PDIP through-hole package. The device operates over a wide supply voltage range from 3V to 18V and delivers a maximum quiescent current of just 20μA, making it efficient for low-power designs.

The IC supports a minimum pulse width as low as 50 nanoseconds and provides a maximum propagation delay time of 1000 nanoseconds at typical load conditions, making it suitable for high-speed switching and timing applications. Its output current capabilities are -6.8mA (high level) and 6.8mA (low level), suitable for driving moderate loads directly.

With an operating temperature range from -55°C to 125°C, the CD4047BE is robust for use in industrial and harsh environment applications. The compact physical dimensions of 19.3mm length and 4.57mm height facilitate integration into densely packed PCBs.

The package type is the widely used Plastic Dual In-line Package (PDIP) which simplifies prototyping and manufacturing. Due to its wide voltage range, low power consumption, and standard pin count of 14, it is well suited for timing circuits, industrial automation, measurement instrumentation, and digital logic applications.

Belongs to the CMOS 4000 logic family for broad compatibility. Single element per chip monostable multivibrator. Wide voltage range from 3 to 18 volts. Low quiescent current of 20 microamps. Compact 14-pin through-hole PDIP package.

Operating temperature range suitable for industrial use. Timely pulse generation with minimum pulse width of 50 nanoseconds. Maximum propagation delay time of 1000 nanoseconds at load. Output currents supporting moderate load driving.

Ideal for industrial, laboratory, and electronic design uses.

This device supports various electronic applications encompassing industrial, laboratory instrumentation, and digital control systems. Its rugged temperature range and low power characteristics make it valuable for embedded system designs and measurement devices.

Explore the full range of semiconductor logic ICs and Monostable Multivibrators in EnvMart for advanced and reliable components suited to demanding industrial and electronics engineering environments.
