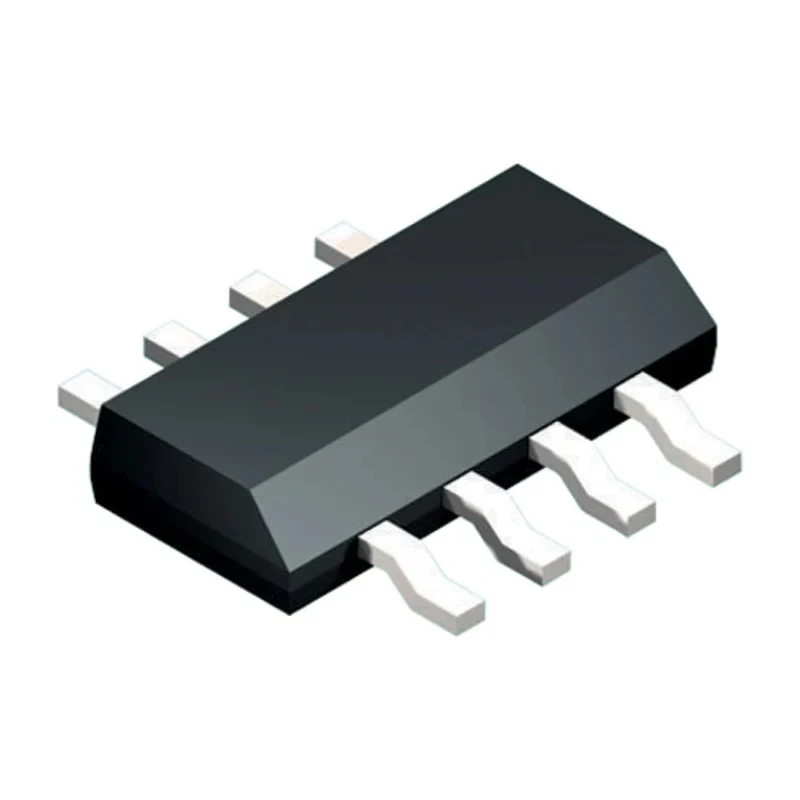

Texas Instruments 1 Monostable Multivibrator LVC 32 mA 8-Pin Surface Mount SN74LVC1G123DCTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.2mm |
| Length | 3.15mm |
| Model | SN74LVC1G123DCTR |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Series | SN74LVC1G123 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Operating Voltage | 1.65 to 5.5 V |
| Pin Count | 8 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | LVC |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ CL | 8ns |
| Maximum Low Level Output Current | 32mA |
| Minimum Pulse Width | 2.5ns |
| Maximum Quiescent Current | 20μA |
| Multivibrator Type | Monostable Multivibrator |
Key Features
- Operates at low voltage range from 1.65V to 5.5V.
- Provides a single monostable multivibrator element per chip.
- Maximum output high current of -32mA and low level output current of 32mA.
- Minimum pulse width of 2.5 nanoseconds ensures fast response.
- Low quiescent current of 20 microamperes for efficient power usage.
- 8-pin surface mount package suitable for compact PCB designs.
- Maximum propagation delay time of 8 nanoseconds at CL.
- Wide operating temperature range from -40°C to 125°C.
Product Description
Texas Instruments SN74LVC1G123DCTR is a single element monostable multivibrator within the 74LVC1G family designed for use in low-voltage CMOS logic circuits. This device operates efficiently over a supply voltage range of 1.65 to 5.5 V, making it versatile for various industrial and commercial electronic applications.
The device features a surface mount 8-pin package and supports a maximum high-level output current of -32 mA and 32 mA for low-level output current, enabling robust signal driving capabilities. It delivers precise timing pulses with a minimum pulse width of 2.5 ns and a maximum propagation delay of 8 ns, suitable for high-speed timing and control circuits.
With low quiescent current of 20 µA, this multivibrator supports low-power designs. It functions reliably across an extended temperature range of -40°C to 125°C, making it ideal for automotive, industrial, and consumer electronics environments.
The SN74LVC1G123DCTR is compatible with LVTTL/TTL input logic levels while providing LVCMOS output levels, facilitating ease of integration into mixed-logic systems. It also demonstrates superior latch-up immunity in compliance with JESD 78 Class II and enhanced ESD protection per JESD 227 standards.
Operates on 1.65 to 5.5 V supply voltage. 8-pin surface mount package suitable for compact PCB layouts. Single monostable multivibrator element per chip. Maximum output current ±32 mA. Minimum pulse width: 2.5 ns. Propagation delay: up to 8 ns.
Extended operating temperature range (-40°C to 125°C). Compatible with LVTTL/TTL input and LVCMOS output logic levels. Robust latch-up performance and ESD protection.
This device is commonly used in electronic timing, pulse generation, and waveform shaping applications within industrial, automotive, and commercial electronic systems. The surface mount form factor facilitates modern PCB assembly processes, and Texas Instruments offers extensive technical documentation for design integration.
Explore more semiconductor components and logic ICs from Texas Instruments at EnvMart for advanced electronics solutions.
Explore more products in our Monostable Multivibrators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a voltage range of 1.65 to 5.5 V.
The maximum high-level output current is -32 mA, while the maximum low-level output current is 32 mA.
The minimum pulse width is 2.5 nanoseconds, ensuring a fast response time for timing applications.
The maximum propagation delay time is 8 nanoseconds at CL.
This model has a height of 1.2 mm and a length of 3.15 mm, suitable for compact PCB designs.
It operates reliably within an extended temperature range of -40°C to 125°C.
It is compatible with LVTTL/TTL input logic levels and provides LVCMOS output levels.
The quiescent current is 20 microamperes, which supports efficient power usage.
This device contains a single monostable multivibrator element per chip.
The SN74LVC1G123DCTR features an 8-pin surface mount package, suitable for modern PCB assembly.
This model belongs to the SN74LVC1G123 series of monostable multivibrators.
The SN74LVC1G123DCTR is manufactured in India.
