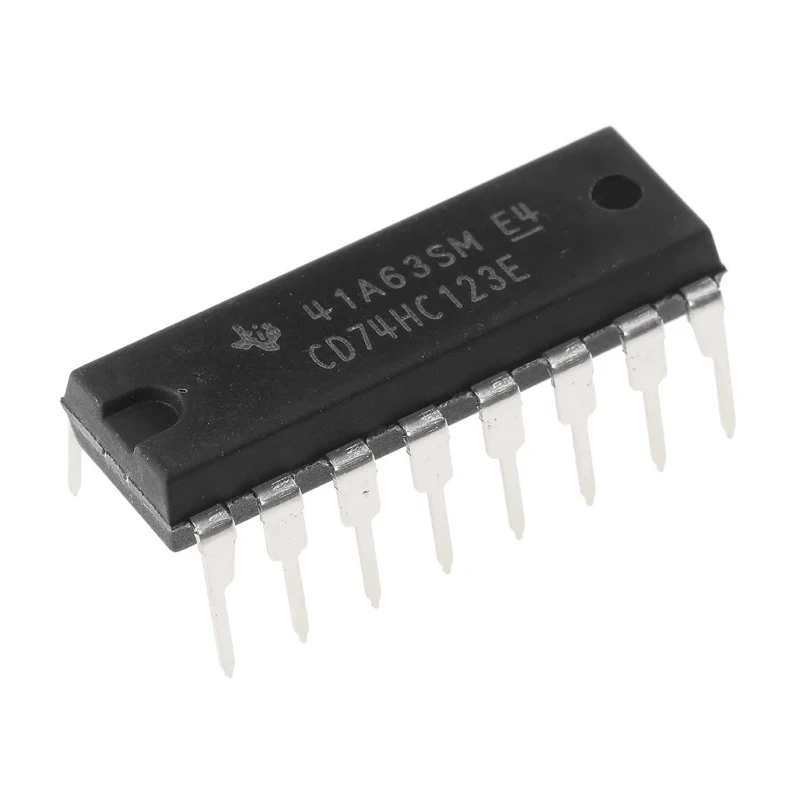

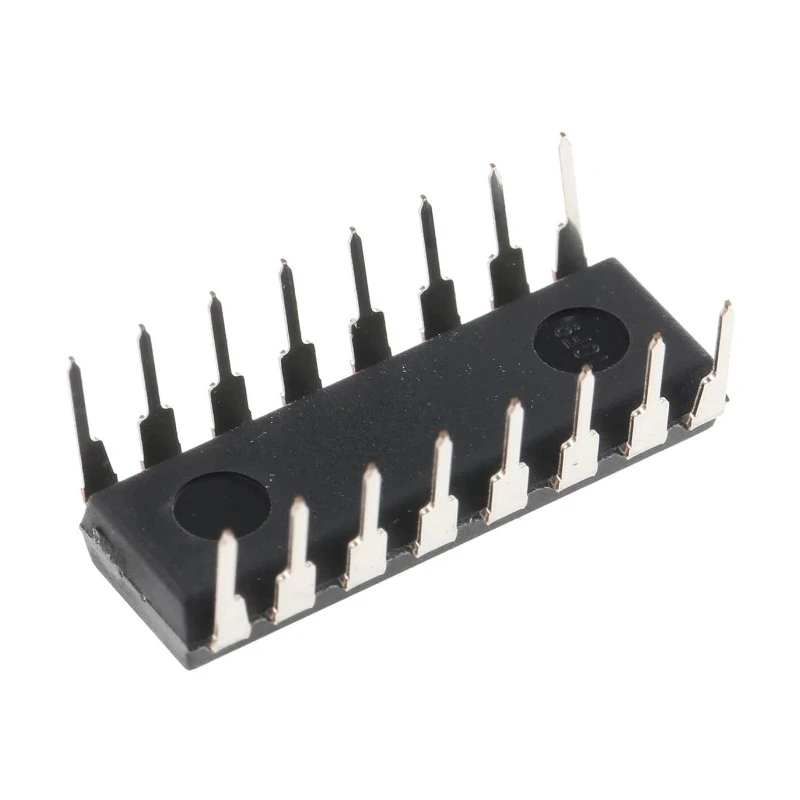

Texas Instruments Monostable Multivibrator 2 Elements HC Logic Family 16-Pin PDIP CD74HC123E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | CD74HC123E |
| Mount Type | Through Hole |
| Compatibility | Input CMOS, Output CMOS |
| Series | CD74HC123 |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Operating Voltage | 2 to 6 V |
| Pin Count | 16 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 6V |
| Logic Family | HC |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -5.2mA |
| Maximum Propagation Delay Time @ CL | 450ns |
| Maximum Low Level Output Current | 5.2mA |
| Minimum Pulse Width | 17ns |
| Maximum Quiescent Current | 8μA |
| Multivibrator Type | Monostable Multivibrator |
Key Features
- Operates between 2 to 6 volts supply voltage for flexible power use.
- Maximum quiescent current is as low as 8 microamperes, ensuring energy efficiency.
- Supports a minimum pulse width of 17 nanoseconds suitable for precise timing applications.
- Featuring a maximum propagation delay time of 450 nanoseconds at typical load conditions.
- Designed for operation from -55°C to 125°C covering wide temperature ranges.
- Compatible with both input and output CMOS logic for versatile integration.
- The device has a 16-pin PDIP through-hole mount package for easy PCB assembly.
- Includes two monostable multivibrator elements per chip for dual timing functionalities.
Product Description
Texas Instruments CD74HC123E is a high-speed, low-power CMOS monostable multivibrator belonging to the 74HC family of logic ICs. It features two independent monostable multivibrators within a single 16-pin PDIP package, suitable for generating precise timing pulses in a variety of industrial, laboratory, and electronic instrumentation applications.
This device operates efficiently over a supply voltage range of 2 V to 6 V, with a maximum quiescent current of 8 microamperes, making it ideal for battery-operated and low power designs. The minimum pulse width of 17 nanoseconds coupled with a maximum propagation delay of 450 nanoseconds ensures high timing accuracy for signal processing and control tasks.
The CD74HC123E supports through-hole mounting, facilitating straightforward installation on printed circuit boards for prototyping and production. Its robust operating temperature range from -55 °C up to 125 °C makes it well-suited for use in harsh industrial environments.
The monostable multivibrator type allows it to produce a single output pulse for each input trigger pulse, useful for applications including pulse shaping, delay generation, and timing control in communications, automation, and control systems.
Operates at 2 to 6 V supply voltage. Low quiescent current of 8 μA enables energy-saving applications. Minimum pulse width of 17 ns for precise timing. Maximum propagation delay of 450 ns under specified load. Wide operating temperature range: -55 °C to 125 °C.
Two monostable multivibrator elements per IC. Through hole PDIP 16-pin package for easy mounting. Compatible with CMOS input and output logic families.
This Texas Instruments component is widely used in laboratory instruments, industrial control circuits, communication devices, and other semiconductor-based electronic applications where accurate, stable timing pulses are required.
Explore more semiconductor logic ICs and Monostable Multivibrators from Texas Instruments with trusted quality and performance at EnvMart for your electronic design and manufacturing needs.
