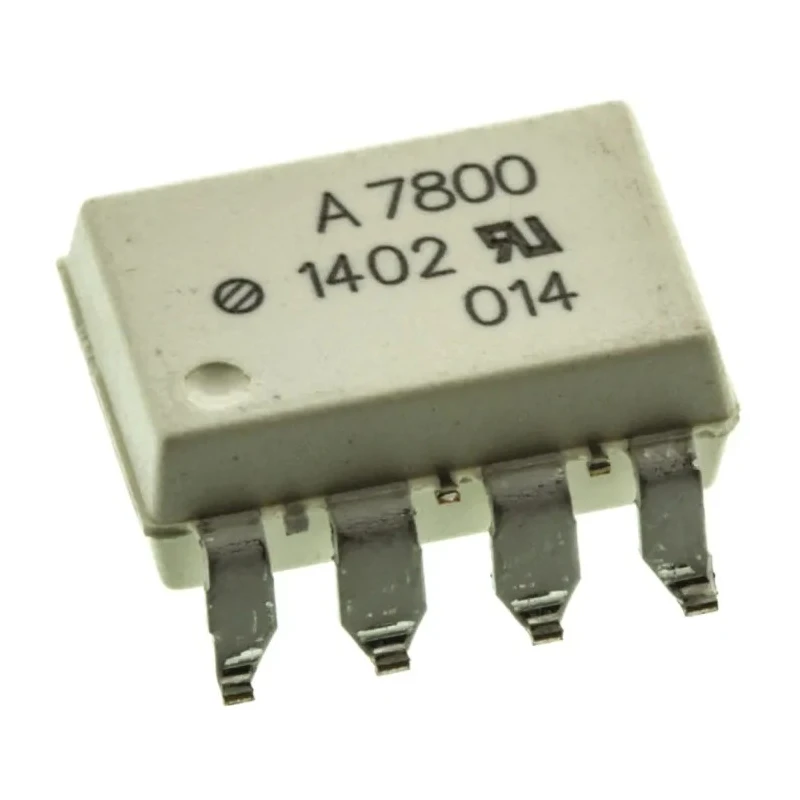

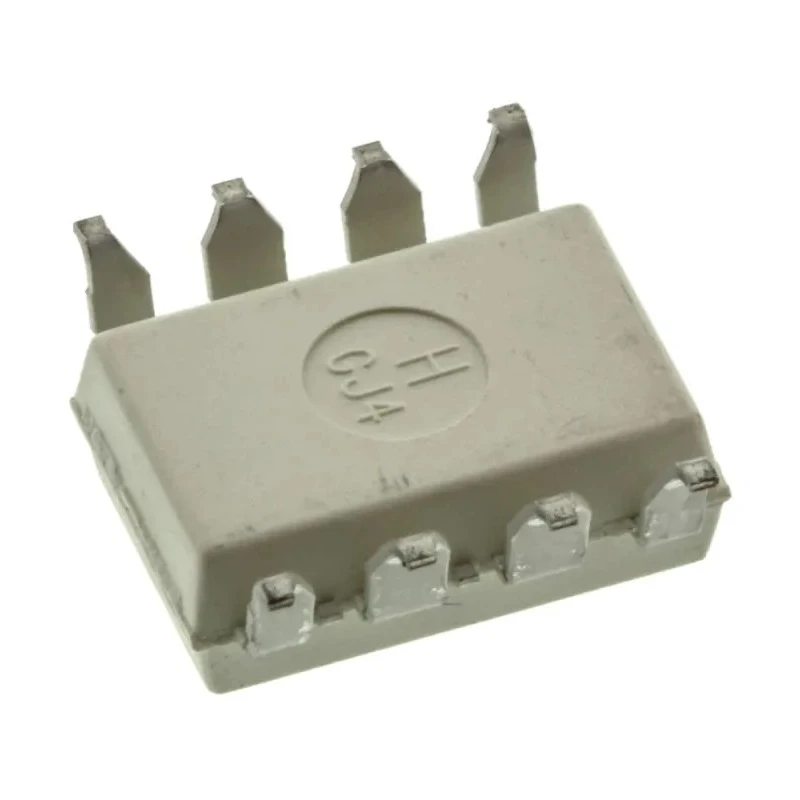

Broadcom Isolation Amplifier 8-Pin 5.5V DIP-8 HCPL-7800-300E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 1.78mm |
| Length | 9.8mm |
| Model | HCPL-7800-300E |
| Mount Type | Through Hole, Surface |
| Series | HCPL-7800 |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP-8 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | IEC/EN/DIN EN 60747-5-2, CSA, UL 1577 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Vos - Input Offset Voltage | 0.3 mV |
| CMRR - Common Mode Rejection Ratio | 76dB |
Key Features
- Designed for precise isolation in industrial and electronic circuits.
- Single channel isolation amplifier with a common mode rejection ratio of 76 dB.
- Through hole and surface mountable DIP-8 package with 8 pins.
- Operates in temperature range from -40°C to 100°C.
- Certified to IEC/EN/DIN EN 60747-5-2, CSA, and UL 1577 standards.
- Compact size with length 9.8 mm and height 1.78 mm.
- High isolation voltage rating of 3750 Vrms for safety insulation.
Product Description
Broadcom HCPL-7800-300E Isolation Amplifier 8-Pin DIP-8 is a precision isolating amplifier designed for industrial, electronic, and measurement applications that require high voltage isolation and accurate signal transmission. It operates with a minimum supply voltage of 4.5V and maximum of 5.5V, delivering reliable performance with a low input offset voltage of 0.3 mV and a high common mode rejection ratio of 76 dB, ensuring signal integrity in noisy environments.
The device is housed in a standard DIP-8 package with 8 pins, suitable for through-hole and surface mounting on printed circuit boards. Its compact dimensions (9.8 mm length and 1.78 mm height) allow flexible integration in constrained spaces. Rated for isolation voltage up to 3750 Vrms, it provides superior safety insulation compliant with IEC/EN/DIN EN 60747-5-2, CSA, and UL 1577 standards.
Engineered to operate safely over an extended temperature range from -40°C to 100°C, this isolation amplifier offers reliability in harsh industrial and electronic environments. It serves as an alternative to Hall Effect isolation amplifiers for current and voltage sensing in power converters, motor drives, and inverter applications.
High CMRR performance supporting precise measurement in industrial environments. Built-in safety insulation for high voltage isolation requirements. Compact DIP-8 package providing easy PCB integration. Robust temperature rating for broad environmental conditions.
Standards compliance guaranteeing quality and safety. Single channel signal isolation suitable for various measurement needs. Ideal for power inverters, motor drive current sensing, and general isolation circuits.
This Broadcom isolation amplifier is part of the HCPL-7800 series, trusted in demanding applications where reliability and precision are critical. For engineers and designers, this component supports innovative and safe system designs. Browse the Electronics & Electricals catalog at EnvMart for similar Isolation Amplifiers and semiconductor amplifiers to meet diverse circuit requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The common mode rejection ratio (CMRR) of this isolation amplifier is 76 dB, ensuring effective signal integrity in noisy environments.
The maximum supply voltage for the HCPL-7800-300E is 5.5V.
It operates within a temperature range of -40°C to 100°C, making it suitable for harsh industrial environments.
The dimensions of the HCPL-7800-300E are 9.8 mm in length and 1.78 mm in height.
This model supports both through-hole and surface mounting options.
The input offset voltage (Vos) for this isolation amplifier is 0.3 mV.
It is certified to IEC/EN/DIN EN 60747-5-2, CSA, and UL 1577 standards, ensuring compliance with safety regulations.
This isolation amplifier has a single channel configuration.
The isolation voltage rating of this amplifier is 3750 Vrms, providing high safety insulation.
The HCPL-7800-300E is part of the HCPL-7800 series of isolation amplifiers.
It is designed for industrial, electronic, and measurement applications that require high voltage isolation and accurate signal transmission.
The HCPL-7800-300E is manufactured in India.
