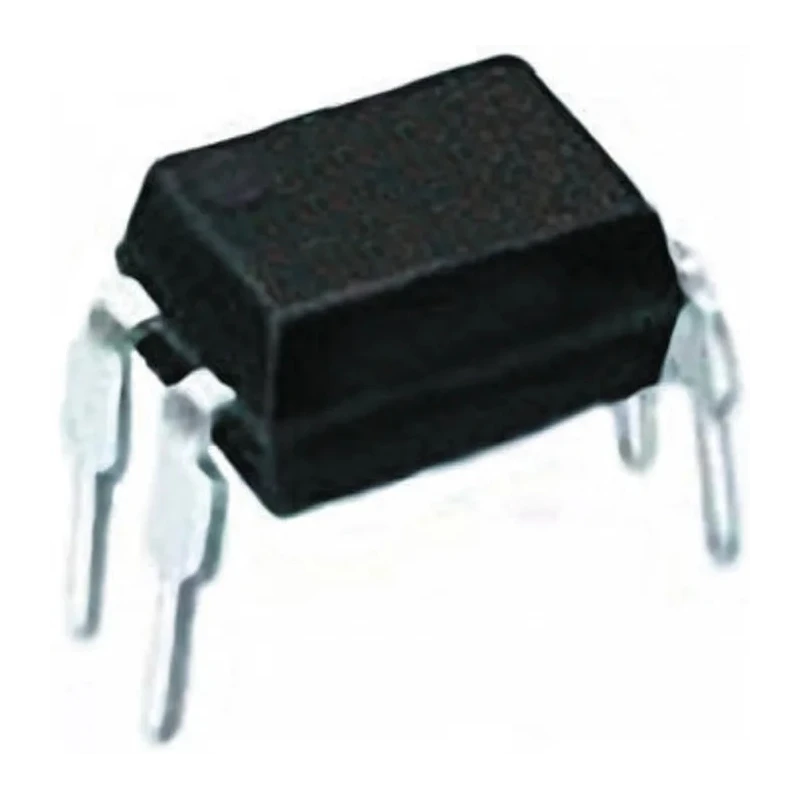

onsemi DC Input Optocoupler Through Hole, 4-Pin MDIP FOD852300

Free Delivery in India | Lowest Global Shipping Charges

onsemi DC Input Optocoupler Through Hole, 4-Pin MDIP FOD852300

Name: onsemi DC Input Optocoupler Through Hole, 4-Pin MDIP FOD852300
Brand: onsemi
SKU: 374866
Price: 0.76 USD
Availability: InStock



Category Optocoupler Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Model	FOD852300
Packaging	Tube
Mount Type	Through Hole
Output type	Photodarlington
Series	FOD
Maximum Operating Temperature	100°C
Package Type	MDIP
Minimum Operating Temperature	-30°C
Maximum input current	50mA
Number Of Channels	1
Standards/Approvals	UL, DIN, EN
Maximum Forward Voltage	1.4V
Number of Pins	4
Input Current Type	DC
Typical Rise Time	300μs
Maximum Current Transfer Ratio	15000%
Typical Fall Time	100μs
Minimum Current Transfer Ratio	1000%

Key Features

Features a photodarlington output type providing high current transfer ratio.
Designed with a through hole mount type and comes in an MDIP package type.
Operates over a temperature range from -30°C to 100°C for versatile applications.
Provides isolation voltage of 5000 Vrms ensuring excellent electrical isolation.
Maximum forward voltage of 1.4 V with a maximum input current of 50 mA.
Typical rise and fall times are 300 μs and 100 μs respectively for effective signal switching.
Complies with UL, DIN, and EN standards for quality assurance.
Packaged in a tube with 4 pins and 1 channel for ease of assembly.

Product Description

onsemi FOD852300 is a DC input optocoupler featuring a 4-pin MDIP package with through hole mount style, designed for effective electrical isolation in electronic circuits. Operating within a temperature range of -30°C to 100°C, this device is suitable for a variety of industrial and electronic applications, including power and display control systems.

The optocoupler utilizes a photodarlington output to ensure a high current transfer ratio, reaching up to 15000%, with a guaranteed minimum of 1000%. It features a maximum forward voltage of 1.4 V and a maximum input current rating of 50 mA. With a typical rise time of 300 μs and fall time of 100 μs, it offers reliable switching performance.

This product provides an isolation voltage of 5000 Vrms, ensuring robust protection between input and output circuits, critical in applications such as industrial automation and control, instrumentation, and power electronics.

The FOD852300 series complies with recognized standards including UL, DIN, and EN, certifying safety and reliability in various environments. It is supplied in a tube packaging for easy insertion into machinery and production lines.

Photodarlington output for high current transfer efficiency. Through hole mounting and MDIP package for easy PCB integration. Wide operating temperature range from -30°C to 100°C. High isolation voltage of 5000 Vrms for electrical safety.

Maximum forward voltage of 1.4 V and input current of 50 mA. Compliant with UL, DIN, and EN standards. Typical rise time 300μs and fall time 100μs for responsive switching. Packaged in tubes, designed for production efficiency.

This optocoupler serves well in industrial, laboratory, instrumentation, and commercial electronic applications requiring electrical isolation and signal transfer. Explore more optoelectronic components within the Optocouplers category at EnvMart for comprehensive solutions.
