| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | Taiwan Semiconductor |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | 1N5818 |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | 1N581x |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Rectifier Diode |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 875mV |

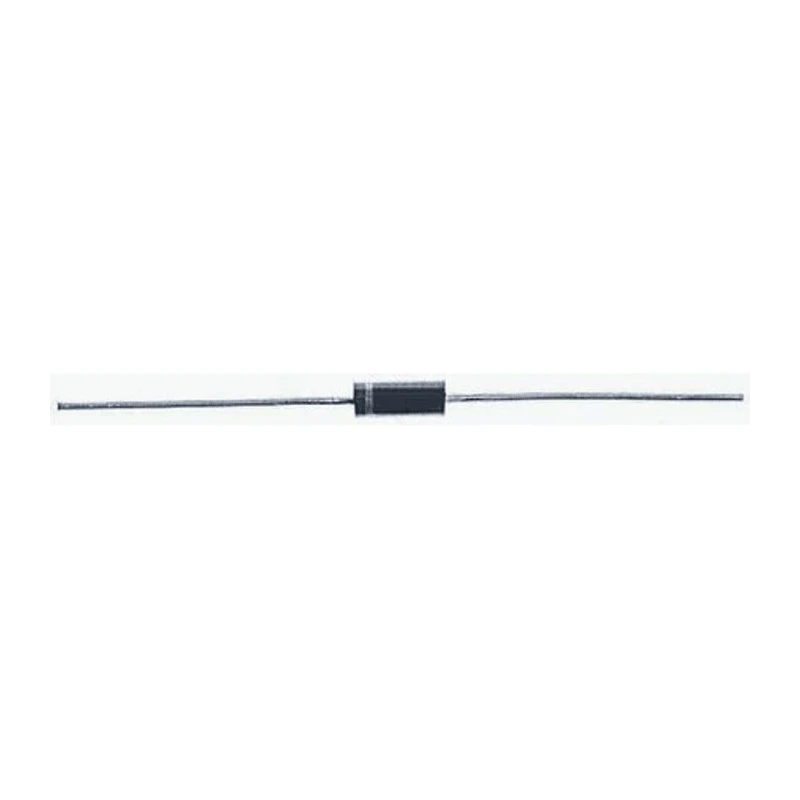

Taiwan Semiconductor 1N5818 Schottky Barrier Rectifier Diode 2-Pin DO-41 is a high-performance semiconductor device designed for efficient rectification and low forward voltage drop in power electronic circuits.
Featuring a maximum continuous forward current of 1 ampere and a peak reverse voltage of 30 volts, this diode provides robust performance in diverse industrial and automotive applications where efficient current flow and high voltage endurance are critical.
The device supports through hole mounting with a compact DO-41 package, measuring 5.2 mm in length with a 2.7 mm diameter, facilitating integration into printed circuit boards with ease.
Its wide operating temperature range from -65°C to 125°C makes it suitable for demanding environments including automotive electronics, power management systems, and general industrial controls.
Additional attributes include a low forward voltage drop of 875 millivolts which minimizes power loss during operation, and a high peak surge current rating of 30 amperes allowing for reliable withstand of transient currents.
Certified to meet the automotive standard AEC-Q101, the 1N5818 diode is suitable for use in quality-sensitive applications demanding reliability and performance. Through hole mounting for secure and easy installation. DO-41 package type with 2-pin configuration.
Maximum continuous forward current of 1 ampere for low power loss. Peak reverse repetitive voltage rated at 30 volts ensuring protection under high voltage conditions. Low maximum forward voltage of 875 millivolts for efficient operation.
Wide operating temperature range from -65°C to 125°C. Peak non-repetitive forward surge current of 30 amperes for transient voltage tolerance. Compact dimensions with 5.2 mm length and 2.7 mm diameter. Compliant with automotive standard AEC-Q101.
This Schottky barrier rectifier diode is widely used in automotive, power management, industrial equipment, and electronics manufacturing, making it a versatile element for varied rectification and protection needs.
Explore more semiconductor and rectifier diode products by Taiwan Semiconductor on EnvMart for reliable and efficient component solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
