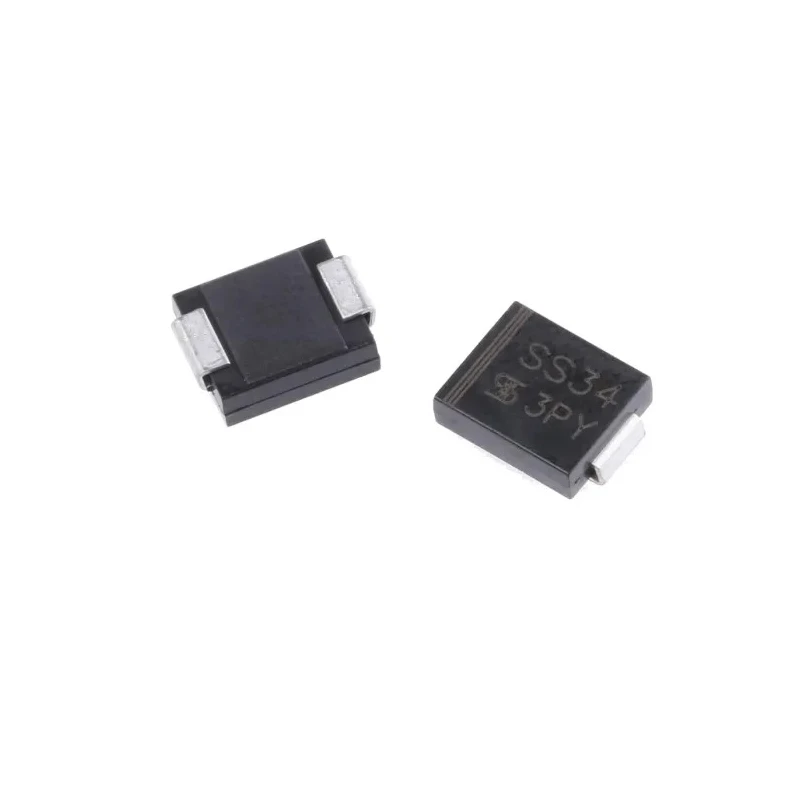

Taiwan Semiconductor 40 V 3 A Surface Mount Schottky Diode DO-214AB SS34
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SS34 |
| Width | 6.22mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 0.5V |
Key Features
- Low forward voltage drop of 0.5 V for efficient power handling.
- Maximum continuous forward current rating of 3 A.
- Peak reverse repetitive voltage of 40 V offers robust voltage tolerance.
- Compact DO-214AB (SMC) surface mount package with 2 pins.
- Operating temperature range from -55°C to 125°C for reliable performance.
- High peak non-repetitive forward surge current up to 100 A.
- Low peak reverse current of 500 μA minimizes leakage losses.
- Dimensioned at 7.11 mm length, 6.22 mm width, and 2.42 mm height.
Product Description
Taiwan Semiconductor SS34 Schottky Diode is a high-performance single diode designed specifically for surface mount applications, featuring a compact DO-214AB (SMC) package. It supports a maximum continuous forward current of 3 A and withstands peak reverse repetitive voltage up to 40 V, providing reliable rectification with low power loss.
With a low forward voltage drop of 0.5 V, this Schottky barrier diode minimizes energy dissipation and improves efficiency in power circuits. Its operating temperature range from -55°C to 125°C ensures robust performance across wide industrial environments, including power management, semiconductors, and electronic component manufacturing.
The diode features a high peak non-repetitive forward surge current of 100 A, which safeguards against transient spikes in electrical systems. Low peak reverse current of 500 μA further reduces leakage currents, improving circuit stability. The device's compact dimensions (7.11 mm length x 6.22 mm width x 2.42 mm height) enable reliable mounting on compact PCB layouts.
Specifically designed as a Schottky rectifier with a single diode configuration, it is ideal for discrete semiconductor applications, power supplies, and switching power circuits where fast switching and low forward voltage drop are critical. Its surface mount construction simplifies assembly and reduces space on printed circuit boards.
The Taiwan Semiconductor SS34 is widely used in industrial, manufacturing, laboratory, and electronics assembly for reliable and efficient semiconductor diode solutions. Low forward voltage drop of 0.5 V for efficient power handling.
3 A maximum continuous forward current rating. 40 V peak reverse repetitive voltage capability. DO-214AB (SMC) surface mount package with 2 pins. Operating temperature range from -55°C to 125°C. 100 A peak non-repetitive forward surge current for transient protection.
500 µA peak reverse current for minimal leakage. Compact dimensions for space-efficient PCB integration. Single diode configuration optimized as Schottky barrier diode. Ideal for industrial and power semiconductor applications.
Explore more semiconductor components and diodes on EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this Schottky diode is 3 A.
The peak reverse repetitive voltage for the SS34 diode is 40 V.
The dimensions of the DO-214AB package are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
The operating temperature range for this model is from -55°C to 125°C.
The forward voltage drop of the SS34 diode is 0.5 V.
This diode can handle a peak non-repetitive forward surge current of up to 100 A.
The peak reverse current for this diode is 500 μA.
The SS34 diode uses a surface mount type for installation.
The SS34 diode has a single diode configuration optimized as a Schottky barrier diode.
The SS34 diode is typically used in power management, semiconductors, and electronic component manufacturing.
The country of origin for the SS34 diode is India.
The SS34 diode is a Schottky rectifier type.
