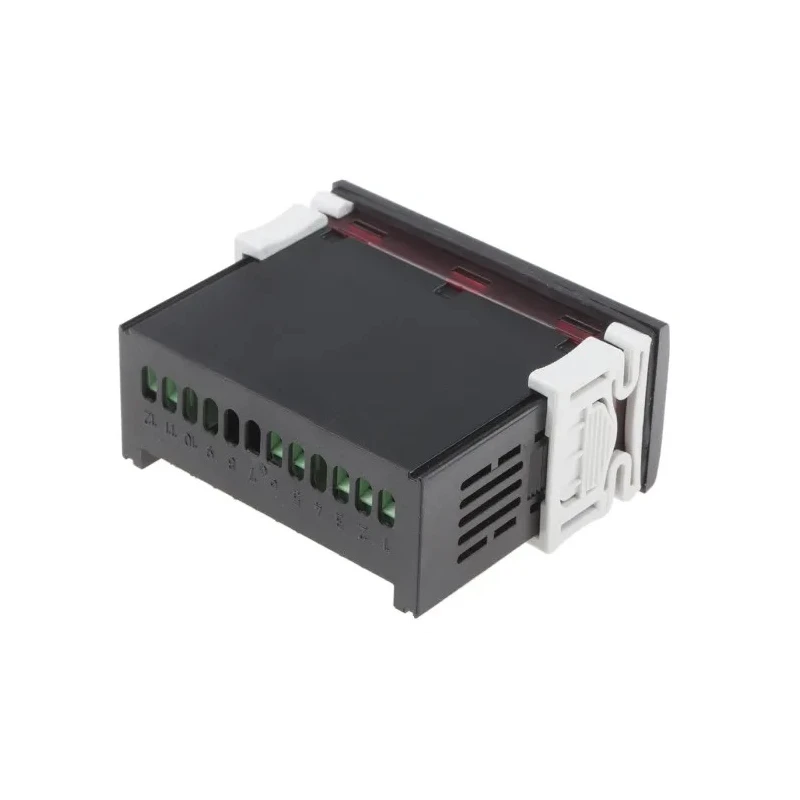

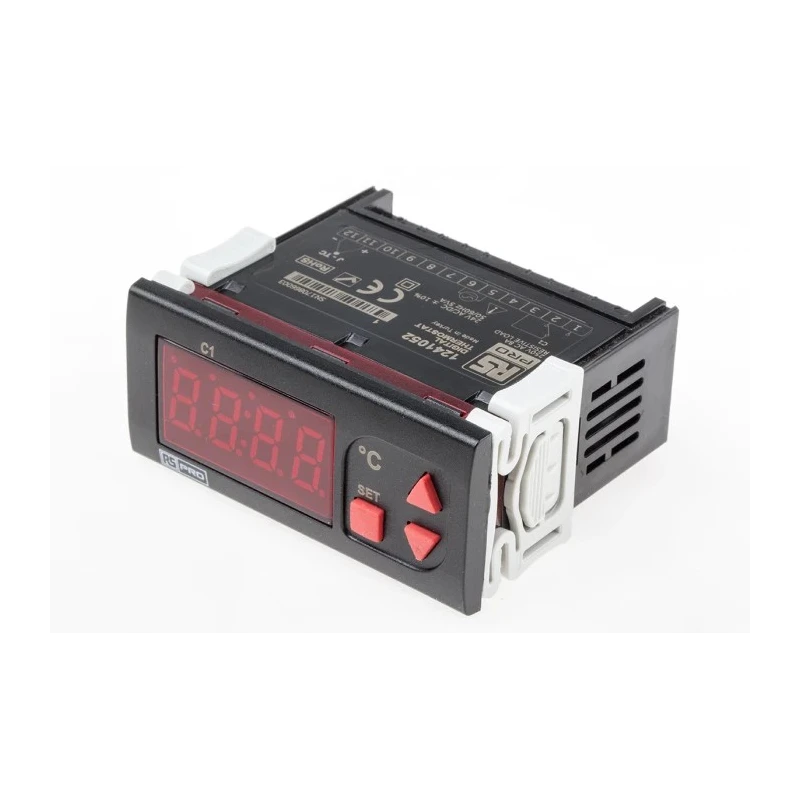

RS PRO Panel Mount On-Off Temperature Controller 1 Input 1 Output Relay 24V ac 8A CE Marked 124-1052

RS PRO 124-1052 is a high-quality panel mount On-Off temperature controller designed for industrial applications requiring reliable temperature regulation. It accepts 1 J Type thermocouple input and provides 1 relay output capable of switching up to 8A at 24V ac. The controller operates in ambient temperatures from 0°C to 50°C and features a clear 7 segment LED display, enabling easy reading of the controlled temperature.

This compact controller comes with IP65 and IP20 protection ratings, making it suitable for panel mounting in harsh industrial environments. The screw-type terminals guarantee secure and durable electrical connections. Comprehensive compliance with CE marking and international standards such as EN 60751 and EN 61010-1 ensures product reliability and safety.

The RS PRO 124-1052 model includes features such as a single set-point, zero point shift, probe failure detection with configurable output status, sensor input offset adjustment, and compressor protection delay timer. These capabilities make it ideal for temperature control in a wide range of industrial use cases including HVAC systems, laboratory ovens, incubators, automotive environments, and storage solutions.

On-Off temperature control intelligently manages heating or cooling cycles by turning the output relay on when the temperature falls below the set point and off once the target temperature is achieved. This controller performs well in applications where gradual temperature changes are typical and where precise PID control is not required.

Panel mount installation design and compact form factor allow easy integration into existing equipment panels and control boxes. RS PRO ensures consistent quality and performance backed by rigorous testing and certification. This temperature controller is engineered to provide durability, accuracy, and ease of use across varied industrial temperature regulation scenarios.

Equipped with a J Type thermocouple input suitable for diverse industrial environments. Offers on-off control with a relay output to manage heating or cooling applications effectively. Features a bright 7 segment LED display for clear temperature indication.

Designed to operate within 0°C to 50°C ambient temperature range. IP65 and IP20 ratings ensure protection against dust and water ingress in panel mount applications. Robust screw terminal connections enable secure wiring installation.

Compliant with CE standards and international approvals including EN 60751 and EN 61010-1. Compact dimensions of 77mm length, 35mm width, and 61mm panel depth for easy integration. Incorporates compressor protection delay timer to extend system longevity.

Ideal for industrial HVAC, ovens, incubators, automotive, and storage temperature control. Explore other precision Temperature Controllers and industrial automation solutions at EnvMart, where quality meets performance for professional engineering applications.
