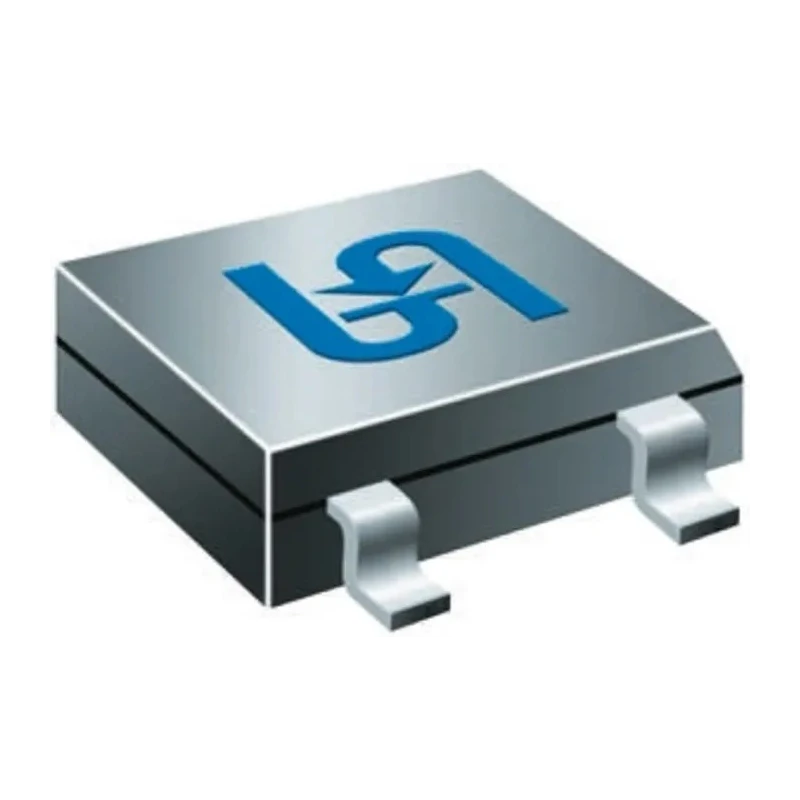

Taiwan Semiconductor Bridge Rectifier DBLS201G RD, 50 V, 50 A, 4-Pin Surface Mount, AEC-Q101
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.6mm |
| Length | 8.51mm |
| Model | DBLS201G RD |
| Width | 6.5mm |
| Mount Type | Surface |
| Series | DBLS201G |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | DBLS |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Automotive Standard | AEC-Q101 |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Forward Current If | 2A |
| Peak Forward Voltage Vf | 1.15V |
Key Features
- Surface mount type suitable for automated PCB assembly.
- Maximum forward current of 2 amperes ensures stable operation.
- Peak non-repetitive forward surge current rating of 50 amperes allows for high transient loads.
- Wide operating temperature range from -55°C to 150°C supports various industrial environments.
- Compact package with dimensions 8.51mm length, 6.5mm width, and 2.6mm height.
- Glass passivated junction for high reliability and long service life.
- Complies with automotive AEC-Q101 standard ensuring quality in automotive applications.
- Low peak forward voltage of 1.15 V to minimize power loss during conduction.
Product Description
Taiwan Semiconductor DBLS201G RD Bridge Rectifier is a surface-mount 4-pin electronic component designed to efficiently convert alternating current (AC) to direct current (DC). Rated at 50 volts peak reverse voltage and 50 amperes peak surge current, this bridge rectifier is ideal for a wide range of industrial and automotive electronic applications.
The device features a glass passivated junction construction, providing enhanced durability and reliability in demanding environments. Its compact package dimensions of 8.51 mm length, 6.5 mm width, and 2.6 mm height support automated PCB assembly processes.
Operating temperature ranges from -55°C to 150°C, suitable for automotive and industrial temperature conditions. The rectifier meets the AEC-Q101 automotive standard, making it a reliable choice for automotive electronics that demand stringent quality and performance.
The forward current rating of 2 A supports continuous current loads, while a peak non-repetitive forward surge current of 50 A offers robust handling of transient currents. The device's low forward voltage drop of 1.15 V helps to minimize power loss and improve energy efficiency.
Surface mount type suitable for automated PCB assembly. Maximum forward current of 2 amperes ensures stable operation. Peak non-repetitive forward surge current rating of 50 amperes allows for high transient loads. Wide operating temperature range from -55°C to 150°C supports various industrial environments.
Compact package with dimensions 8.51mm length, 6.5mm width, and 2.6mm height. Glass passivated junction for high reliability and long service life. Complies with automotive AEC-Q101 standard ensuring quality in automotive applications.
Low peak forward voltage of 1.15 V to minimize power loss during conduction. Low peak reverse current of 10 microamperes reduces leakage and improves performance. Single-phase, 4-pin configuration suited for bridge rectifier circuits.
This bridge rectifier is suitable for industrial, automotive, and consumer electronic applications requiring reliable AC to DC conversion. Its robust package and high surge current handling improve durability and operational longevity.
Explore our selections in semiconductor Bridge Rectifiers for compatible power management and electronic circuit design applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current rating of this model is 2 amperes, ensuring stable operation during continuous use.
This bridge rectifier has a peak reverse repetitive voltage rating of 50 volts.
The peak non-repetitive forward surge current rating is 50 amperes, allowing it to handle high transient loads effectively.
The dimensions of the DBLS201G RD are 8.51 mm in length, 6.5 mm in width, and 2.6 mm in height.
It operates within a wide temperature range from -55°C to 150°C, making it suitable for various industrial environments.
Yes, it complies with the AEC-Q101 automotive standard, ensuring quality for automotive applications.
This model is designed for surface mounting, which is suitable for automated PCB assembly.
The peak forward voltage drop is 1.15 volts, which helps minimize power loss during conduction.
It features a 4-pin configuration, which is typical for bridge rectifier circuits.
The peak reverse current is rated at 10 microamperes, which helps reduce leakage and improve performance.
This bridge rectifier is suitable for industrial, automotive, and consumer electronic applications requiring reliable AC to DC conversion.
It utilizes a single-phase configuration, making it well-suited for various electronic circuits.
