Vishay Siliconix N-Channel Enhancement MOSFET 150 V, 24.5 A Continuous Drain Current, 55 W Power SQJ872EP-T1_GE3

Vishay Siliconix SQJ872EP-T1_GE3 is a high-performance N-channel enhancement mode MOSFET intended for demanding industrial and automotive applications that require efficient power switching and conversion.

This device supports a maximum continuous drain current of 24.5 A and withstands up to 150 V drain source voltage, offering robust operation under high current and voltage conditions.

The MOSFET features a low drain source resistance of 0.0395 Ω which minimizes conduction losses, thus enhancing energy efficiency in switching systems. Its gate charge of 14 nC permits fast and efficient switching control, while the power dissipation capability of 55 W ensures the device can handle continuous thermal loads without degradation.

Designed for extreme operating environments, it functions reliably from -55 °C up to 175 °C, satisfying stringent industrial and automotive thermal requirements. It is tested and qualified to the automotive industry standard AEC-Q101, making it suitable for automotive power stage applications.

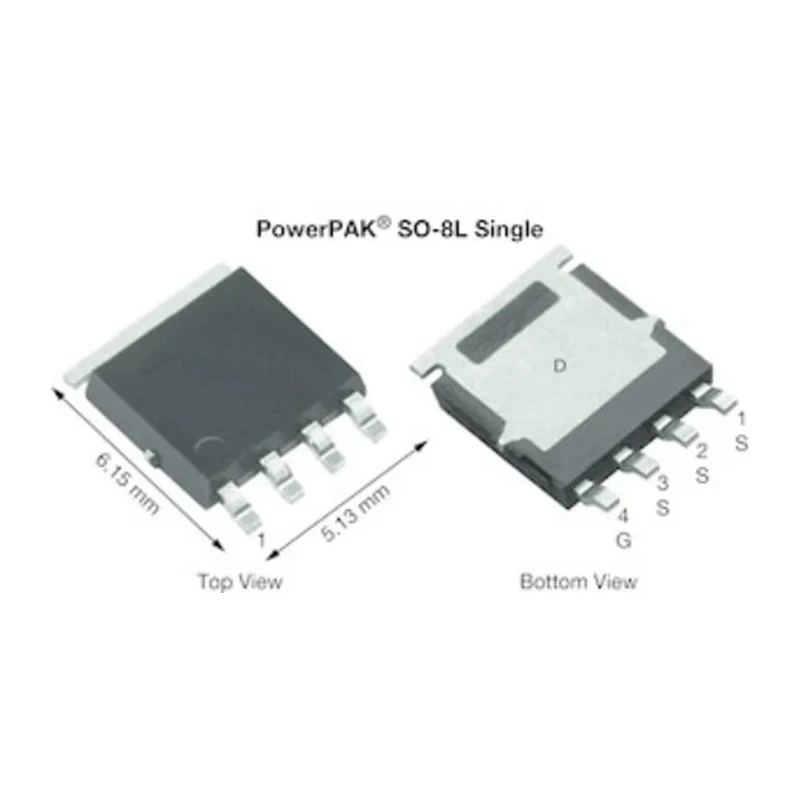

Its compact SO-8L package facilitates easy and secure PCB mounting in dense circuit layouts, making it ideal for space-sensitive electronics assemblies. The gate voltage tolerance of ±20 V affords flexibility in gate drive design, improving system robustness.

Maximum continuous drain current 24.5 A supporting high load current. Maximum drain source voltage of 150 V for robust switching margins. Low on-resistance 0.0395 Ω reduces conduction losses. Gate charge of 14 nC for efficient switching.

Power dissipation of 55 W allows sustained thermal management. Operating temperature range -55 °C to 175 °C enabling harsh environment usage. Compliance with automotive AEC-Q101 standard. SO-8L package for PCB mounting in compact layouts.

Wide gate voltage tolerance ±20 V. Forward voltage drop of 1.2 V critical for power loss estimation.

This MOSFET is ideal for industrial motor drive switch arrays, DC-DC converters in high-voltage systems, synchronous rectification in power supplies, inverters, UPS front-end switching stages, and automotive power stages requiring reliable high power switching compliant with industry standards.
