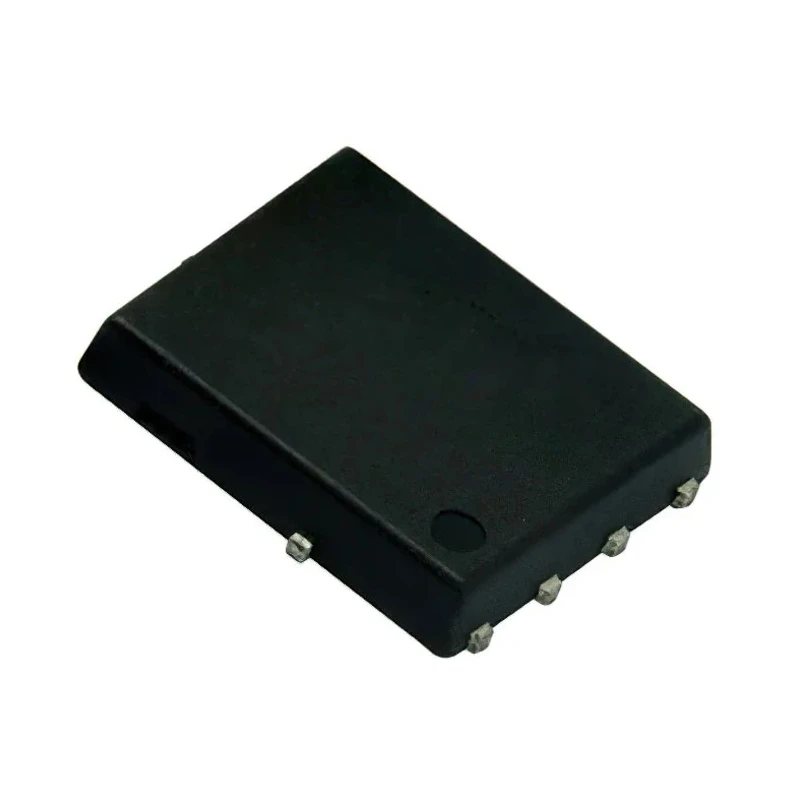

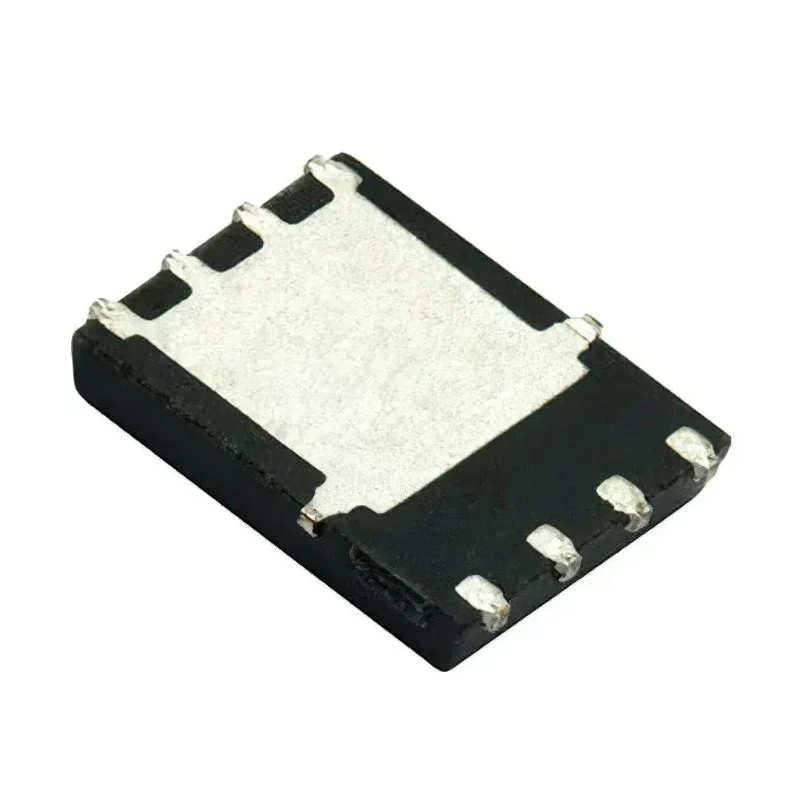

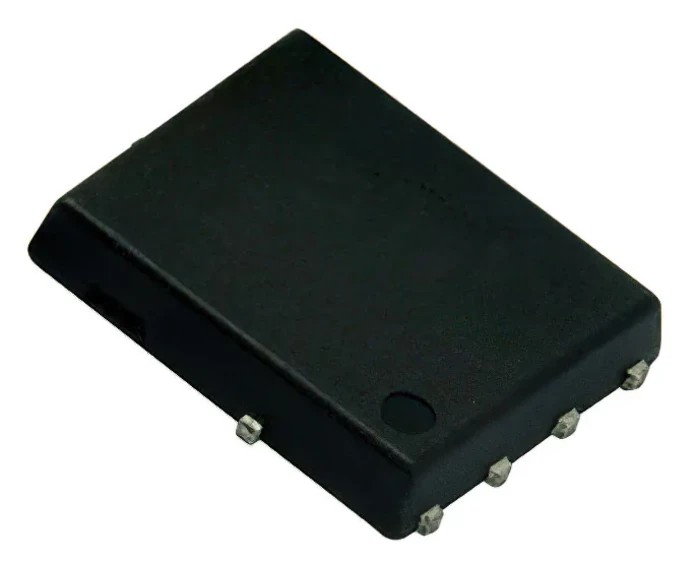

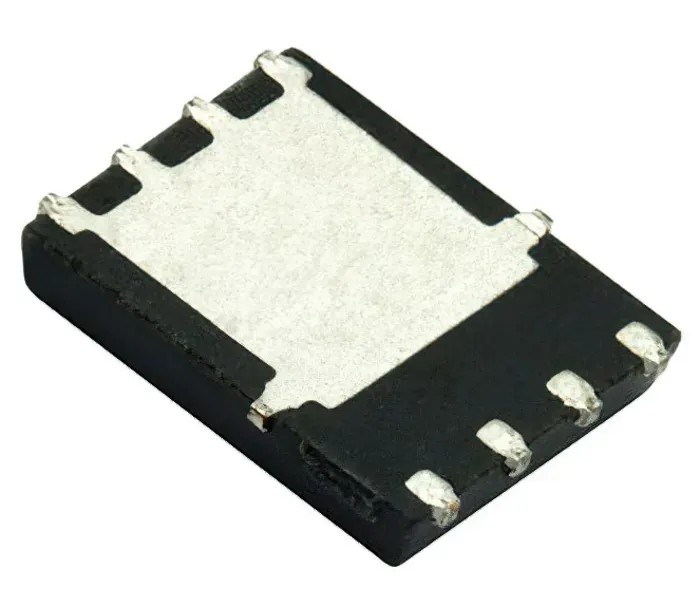

Vishay N-Channel Power MOSFET 100 A 60 V Depletion Mode 8-Pin PowerPAK SO-8 SIR512DP-T1-RE3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | SIR512DP-T1-RE3 |
| Width | 5.15mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | PowerPAK SO-8 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 8 |
| Automotive Standard | AEC-Q101 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 100A |
| Maximum Drain Source Voltage Vds | 60V |
| Maximum Drain Source Resistance Rds | 0.01Ω |
| Channel Mode | Depletion |
| Maximum Power Dissipation Pd | 83W |
| Typical Gate Charge Qg @ Vgs | 56nC |
| Maximum Gate Source Voltage Vgs | 20V |
Key Features
- Maximum continuous drain current rating of 100 A ensures high current capacity.
- Depletion mode channel type provides normally-on operation.
- Low maximum drain-source resistance of 0.01 ohm for efficient power management.
- Compact 8-pin PowerPAK SO-8 surface mount package supports high power dissipation.
- Maximum power dissipation of 83 W suitable for demanding applications.
- Wide operating temperature range from -55 to 125 degrees Celsius.
- Maximum gate-source voltage rated at 20 V for reliable switching.
- Typical gate charge of 56 nC facilitates fast switching response.
Product Description
Vishay SIR512DP-T1-RE3 is a high-performance Gen IV trench Power N-Channel MOSFET designed for power supply, motor drive control, and synchronous rectification applications. It supports a maximum continuous drain current of 100 A and a drain-source voltage rating of 60 V, featuring a depletion mode channel for normally-on operation.
Housed in an 8-pin PowerPAK SO-8 surface mount package, this MOSFET provides optimized thermal performance and a very low maximum drain-source resistance of 0.01 ohm, ensuring high efficiency in power management systems. It has a maximum power dissipation rating of 83 W and operates reliably across a temperature range from -55°C to 125°C.
Typical gate charge is 56 nC at Vgs, allowing fast switching speeds suitable for industrial, automotive, and commercial electronic systems. The device meets the AEC-Q101 automotive standard confirming its robustness for automotive electronics.
This MOSFET is widely used in power supply units, motor drives, and synchronous rectifier circuits where efficient switching and low power losses are critical. Its compact package and performance characteristics make it ideal for high-density PCB layouts and demanding industrial environments.
Maximum continuous drain current rating of 100 A ensures high current capacity. Depletion mode channel type provides normally-on operation. Low maximum drain-source resistance of 0.01 ohm for efficient power management. Compact 8-pin PowerPAK SO-8 surface mount package supports high power dissipation.
Maximum power dissipation of 83 W suitable for demanding applications. Wide operating temperature range from -55 to 125 degrees Celsius. Maximum gate-source voltage rated at 20 V for reliable switching. Typical gate charge of 56 nC facilitates fast switching response.
Automotive standard AEC-Q101 qualified for harsh environment use. Explore the wide range of Vishay Power MOSFETs in the Electronics & Electricals category at EnvMart for reliable power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current rating for this model is 100 A.
This MOSFET has a maximum drain-source voltage rating of 60 V.
The typical gate charge at Vgs for this model is 56 nC.
It has a maximum power dissipation rating of 83 W, suitable for demanding applications.
The operating temperature range is from -55°C to 125°C.
This model is housed in an 8-pin PowerPAK SO-8 surface mount package.
The maximum gate-source voltage rated for this unit is 20 V.
It features a depletion mode channel type, providing normally-on operation.
The maximum drain-source resistance for this model is 0.01 ohm.
Yes, it meets the AEC-Q101 automotive standard, confirming its robustness for automotive electronics.
This MOSFET has a pin count of 8 and is designed for surface mounting.
It is widely used in power supply units, motor drives, and synchronous rectifier circuits where efficient switching is critical.
