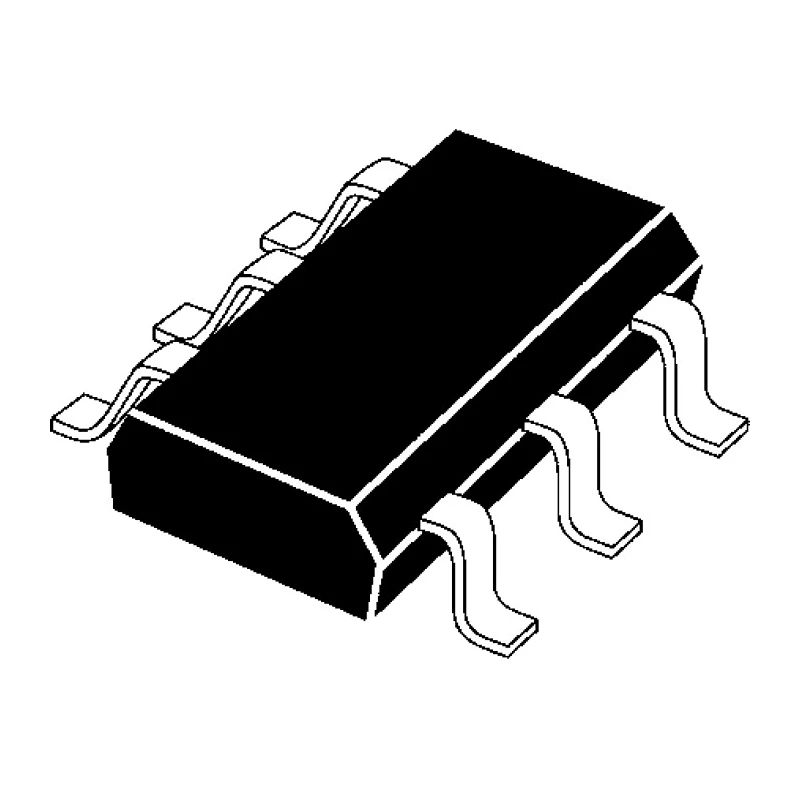

onsemi N+P Load Switch 2 Type P, Type N-Channel Power MOSFET 1.3 A, 8 V Enhancement SC-88 NTJD1155LT1G

onsemi NTJD1155LT1G is a dual channel N+P load switch power MOSFET combining Type P and Type N transistors within a compact SC-88 package. This device supports a maximum continuous drain current of 1.3 A and operates in enhancement mode with an operating voltage up to 8 V, optimized for load switching and power management applications.

Featuring ultra-low drain-source resistance and internal ESD protection, it is designed to handle control signals as low as 1.5 V, suitable for battery-powered portable electronics such as mobile phones, PDAs, digital cameras, and media players. The device incorporates ON Semiconductor's advanced trench technology ensuring reliable and efficient performance in compact applications.

The NTJD1155LT1G MOSFET operates reliably across a wide temperature range from -55°C to +150°C, making it adaptable for industrial and commercial electronics environments. The 6-pin SC-88 surface mount package facilitates miniaturization and efficient PCB layout design. It dissipates a maximum power of 400 mW, complying with common thermal management requirements.

Key features include a forward voltage of approximately -0.8 V, low maximum drain-source resistance of 320 milliohms, and a dual-element transistor configuration for flexible switching configurations. This integration enhances functionality in circuit designs requiring high load currents with minimal control signals.

Applications for this device encompass high-side load switching with level shifting in consumer electronics and electrical power management modules. Its design suits industrial, laboratory, and commercial uses where compact, efficient, and reliable power switching is crucial.

Dual type P and type N channel MOSFET combination for versatile power switching. Low ON resistance and high current capacity ideal for load switches. Compact SC-88 surface mount package supports modern PCB designs. Suitable for demanding environments with extended temperature range.

Internal ESD protection enhances device robustness and longevity. Explore more Power MOSFET components and semiconductor solutions on EnvMart for advanced electronics design needs.
